SF-360
xinglong
Single Facer Machine
New
China,Hebei
Ordinary Product
1 Year
Electric
Provided
Provided
Easy to Operate
Video Technical Support

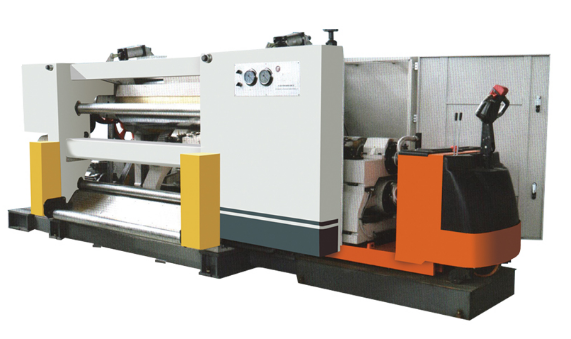

SF-360 Multi-cassette positive pressure single facer
Technical Parameters:
| Working width (mm) | 2000 |
| Design speed (m/min) | 250 |
| Economic speed (m/min) | 150-200 |
| Paper feed range (mm) | 2000-850 |
| Steam temperature | 200℃ |
| Steam pressure | 1.2Mpa |
| Working Power | 380V 50Hz 70kw |
Structural feature:
★Main corrugating roller：￠360mm（According flute differ），pressure roller￠400mm，preheat roller￠400mm. ★Using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating. ★Quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,put into the machine，and air pressure system will lock it,fixed to the machine base，only need a few buttons can complete the replacement quickly and easily. ★Corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment. ★Corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time. ★Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the motor stops,prevent glue exhausted. ★The moveable type glue unit is convenient to clean and maintain. ★Easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly. ★Built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture. ★Main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly. |
Main component parameters
Part name Craftsmanship | Specification | Material | Surface treatment |
Corrugated roller | Main roll￠405mm | 50CrMAo | Tungsten carbide treatment |
Pressure roller | ￠495mm | 45＃ steel | Hardened round grinding chrome plating polishing |
Glue roller | ￠320mm | 45＃ steel | Round grinding and pressing pit mesh chrome plating |
Fixed paste roller | ￠175mm | 45＃ steel | Round grinding chrome |
Preheat roller | ￠400mm | Q235B | Round grinding chrome |
Paper guide roller | ￠110 mm | 45＃ steel | Round grinding chrome |
Main dynamic parameter：
Name | Power | Voltage | Frequency |
Main drive motor | 45KW | 380V | 50HZ |
High-pressure suction motor | 15KW | 380V | 50HZ |
Adjustable glue push rod | 30W | 380V | 50HZ |
Glue adjustment motor | 200W*2 | 380V | 50HZ |
Rubber pump motor | 2.2KW | 380V | 50HZ |
Motor of glue department | 3.7KW | 380V | 50HZ |
