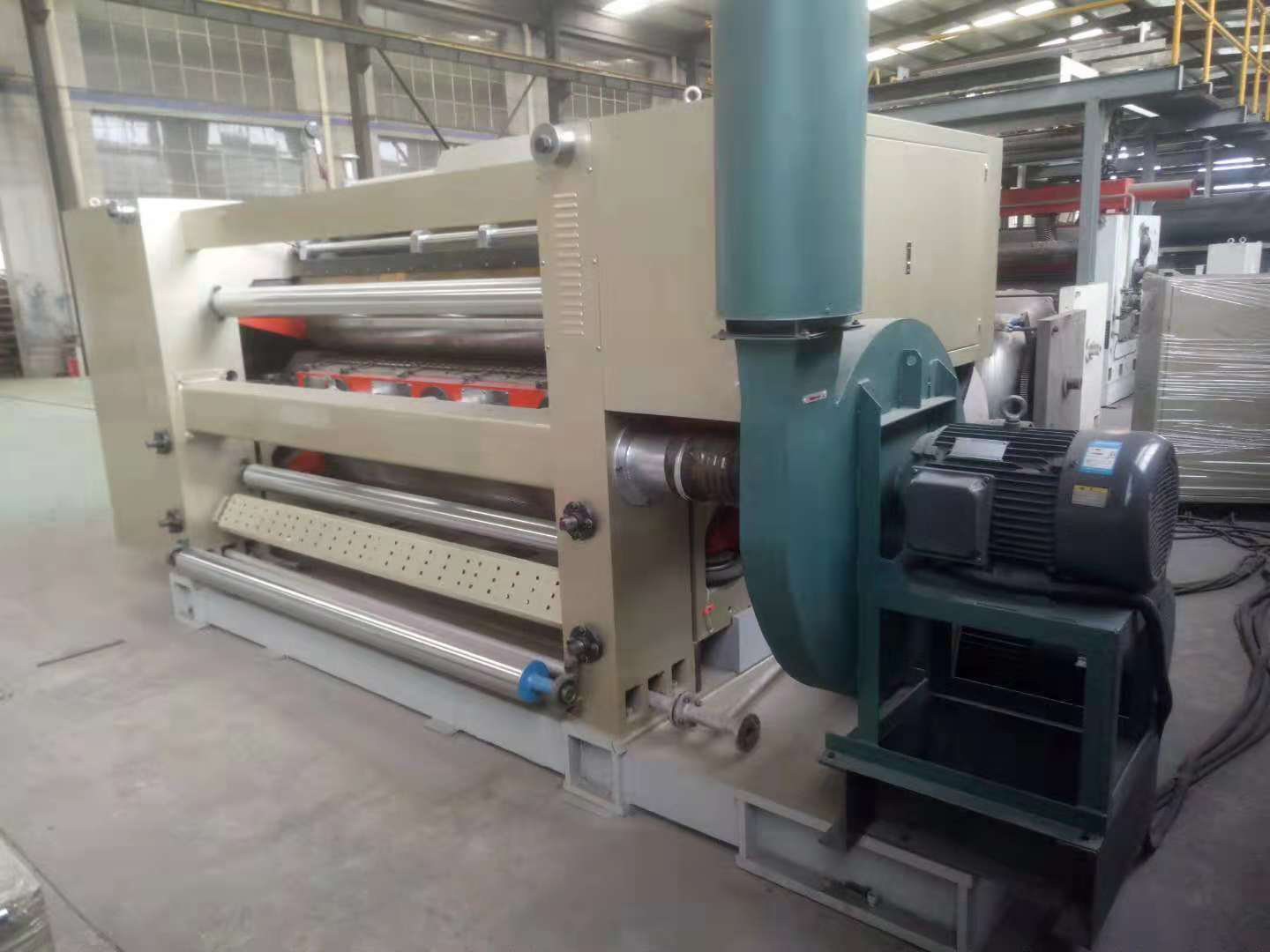

Structural characteristics:
l Design speed: 150 m/min.
l The effective width:2200 mm.
l Main corrugated roll diameter: 320mm (size is different according to the different corrugated shape), pressure roll diameter:370mm, preheating roll diameter: 405mm.
l The negative pressure design is adopted for low heat loss. The core paper can be evenly pressed and attached to the surface of corrugated roll,so that corrugated rolls can be formed better. Because of uniform pressure, glue for the single-sided corrugated paper could be bonding better.
l 15 minutes Quick roll change. the whole set of corrugated rolls are fixed on the machine base and driven by motor. the corrugated rolls can be easily replaced by a few button switching
l Corrugated rollers are made of 48CRMO high quality alloy steel, which is heat treated and ground with tungsten carbide.
l High stability air bag control system with air pressure buffer are adopted for corrugated rollers and pressure rollers.
l Glue amount adjusted by electric, gluing width adjusted by electric, independently glue coating system runs when the main engine stops, so the glue could be prevented from dry up.
l Movable gluing system, in addition to easy cleaning, is more conducive for maintenance.
l Simple operation control system. Operation interface displays operation status, function selection, fault indication, troubleshooting and parameter setting with Touch color screen. Shows a complete functions, simple operation and humanization machine.
l The built-in preset adjuster has a spray system to adjust the temperature and moisture content of the core paper.
l High temperature grease is used for main and auxiliary corrugated rollers and pressure roll bearings to ensure the service life and smooth operation of bearings.
Conventional technical parameters: | |
1. Working width | 2200mm |
2. Operation side | left or right (according to customer workshop) |
3. Design speed | 150m/min |
4. temperature range | 160—200℃ |
5. air pressure | 0.4—0.9Mpa |
6. steam pressure | 0.8-1.3 Mpa |
7. Flute type | UV or UVV |
Roller diameter parameters: | |
1. Main flute Roller diameter | 320mm |
2. Sub-flute Roller diameter | 320mm |
3. Pressure roll diameter | 370mm |
4. Gluing roller diameter | 270mm |
5. Glue amount adjust roller diameter | 152mm |
6. Preheating Roller diameter | 405mm |
motor parameters: | |
1. Main motor (frequency) | 30KW continuous (S1) working mode |
2.Blower motor | 15KW continuous (S1) working mode |
3. motor for adjust glue amount | 100W short-time (S2) working mode |
4. Motor for adjust glue width | 100W short-time (S2) working mode |
5. Glue pump motor | 2.2KW continuous (S1) working mode |
6.Motor for drive glue | 3.7KW |
1. Q: Are you a manufacturer, trading company or a third party?

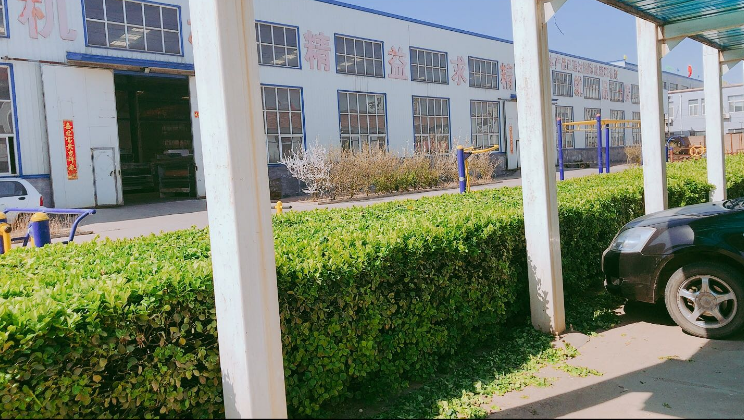

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
