Rotary die cutter/paper cutting machinery

Quantity:
  • Other, Rotary die cutter/paper cutting machinery
  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, carton box factory
  • New
  • Apparel, Beverage, Food, Machinery & Hardware, Medical, Textiles, Commodity, Chemical
  • Film, Case
  • Paper, Plastic, Wood
  • Automatic
  • Electric
  • 380/410/440v50hz customized
  • 8kw
  • Hebei, China
  • Xinglong
  • about 4T
  • customized
  • CE
  • Energy saving
  • Rotary die cutter/paper cutting machinery
  • container
  • one year
  • 120pcs/min
  • optional
  • 2-9mm
  • <±1mm
  • OEM is available
  • Cutting for carton box making production line
  • Engineers available to service machinery overseas

Rotary die cutter/paper cutting machinery

Main mechanisms performance:
•Adopts lead edge feeding system . Adjust wind volume according on cardboard bending degree to ensure feeding paper smoothly.
•The rubber roller with air cylinder device, feeding accurately, stably, not destroy paperboard strength if the feeding space is very small.
•The left and right side baffles adopt electric control with data display(options: pneumatic lifting device) the back baffles adopt electric adjustment, the front baffle space manual adjustment.
•Equipped with colors touch screen take 360 degree set to die roller, display product speed and set production quantity.
•The rubber roller adopt mechanical control the position move left and right. The movement distance is 40mm.
•The space of rubber roller with die roller adopt automatic locking device. And with air cylinder can adjust quickly, reduce rubber wear, prolong use lift.
•With speed compensation device make rubber roller rotate with die roller, make the surface speed of the rubber cushion is completely controlled by dies. The shape of the carton will absolutely equal to the dies.
•With rubber repair device, the rubber can be used after repaired.

2.        MAIN SPECIFICATION AND PARAMETER

Item

Model

Max.Cutting size (mm)

Min.

feeding

size (mm)

Feeding

thickness

(mm)

Main

motor power

MQJ-1800B

1750*1360 300*600 1-8(3-5 layer) 4.0 KW
MQJ-2000B 2060*1350 300*600 1-8(3-5 layer) 5.5 KW
MQJ-2000B 2050*1600 400*600 1-10(3-7 layer) 7.5 KW
MQJ-2400B 2500*1600 400*700 1-10(3-7 layer) 7.5 KW
MQJ-2500B 2500*1800 500*700 1-10(3-7 layer) 11 KW
MQJ-3000B 2980*1800 500*700 1-10(3-7 layer) 15 KW

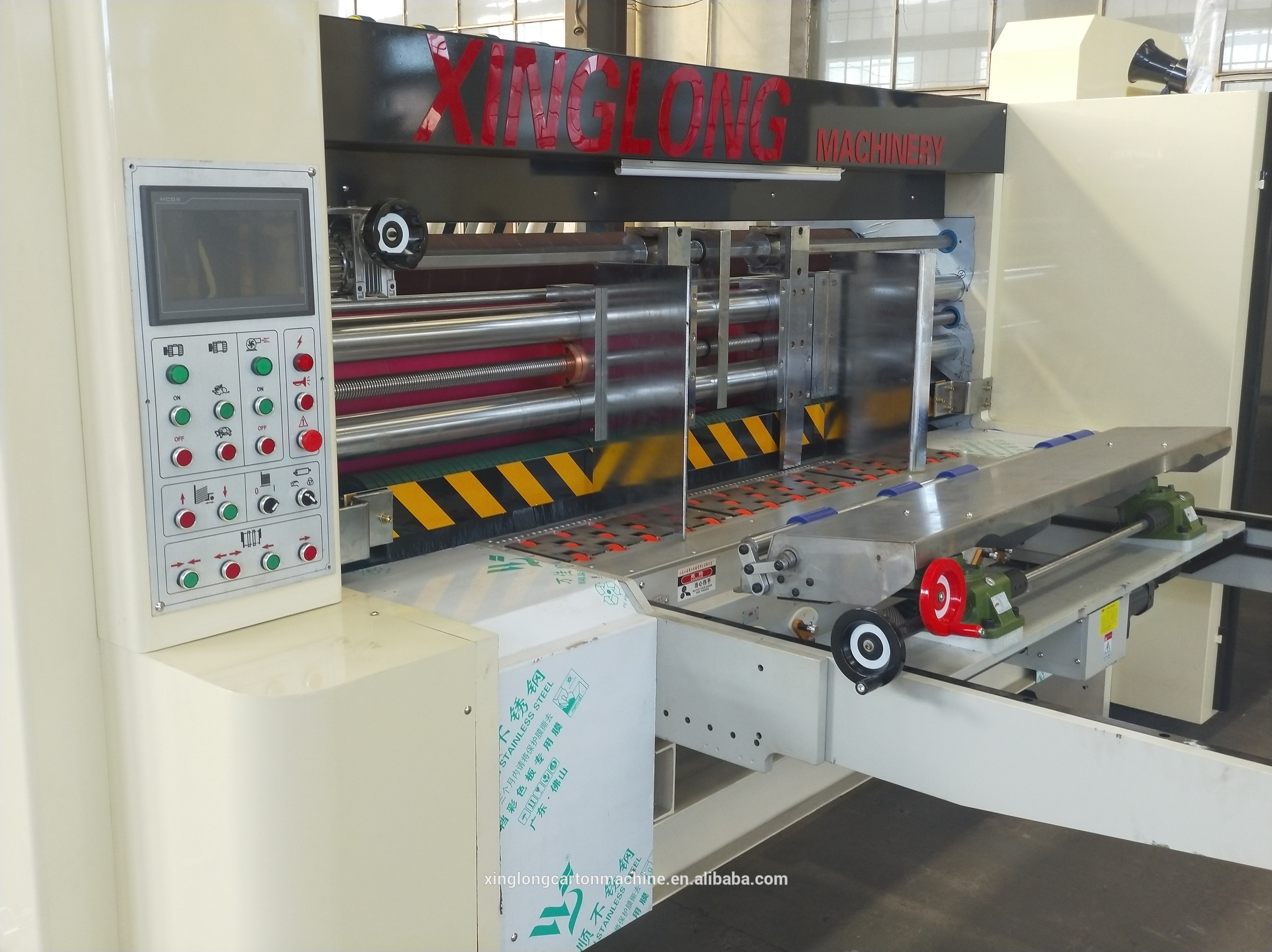

Product pictures:

About us:

Our factory is a professional corrugated cardboard carton box making machines manufacturer for over 20 years. We can provide every customer superior quality products at competitive price.

Not only been recognized as top suppliers in the mainland of China for years, our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
Our products mainly include but not limited to:

- 3ply/5ply/7ply corrugated production line

- High speed printing machine

- Ordinary printing machine
- Single facer
- Rotary die cutter
- Thin blade slitter scorer machine
- Carton stitching machine
- Rotary slotter machine
- Laminate machine
