Other
Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company
New
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Cartons
Plastic, Wood
Semi-Automatic
Electric
380V 50HZ
2.2KW
Hebei, China
XINGLONG
about 3T
customized
CE
Easy to Operate
Engineers available to service machinery overseas, Engineers available to service machinery overseas

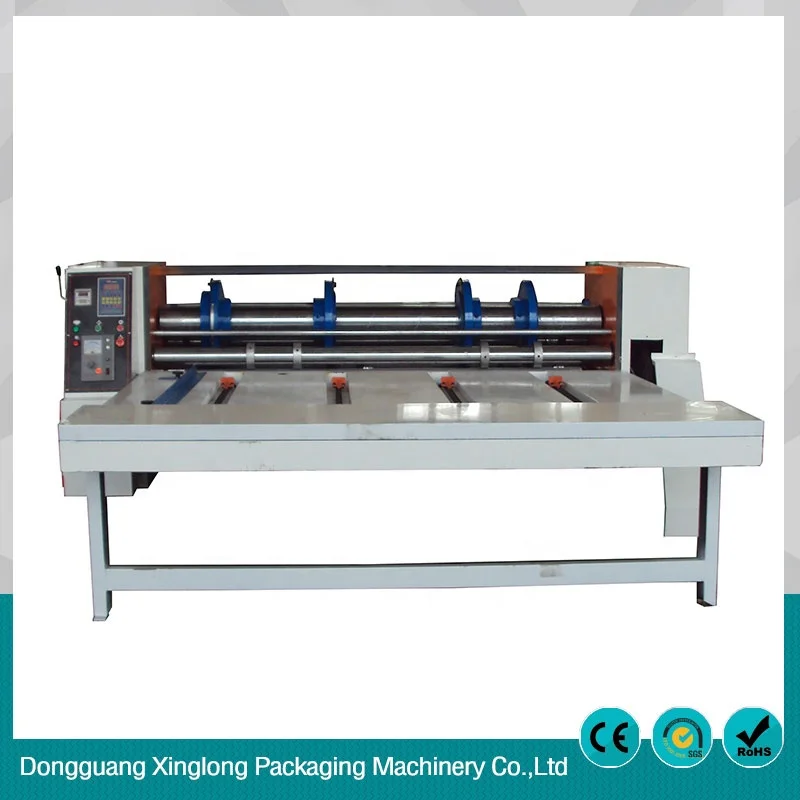

RS4 Semi-automatic Rotary Slotting Machine
7mm
190*50*190*50mm
3-10mm
0-60pcs/min
1 Year
Function and use

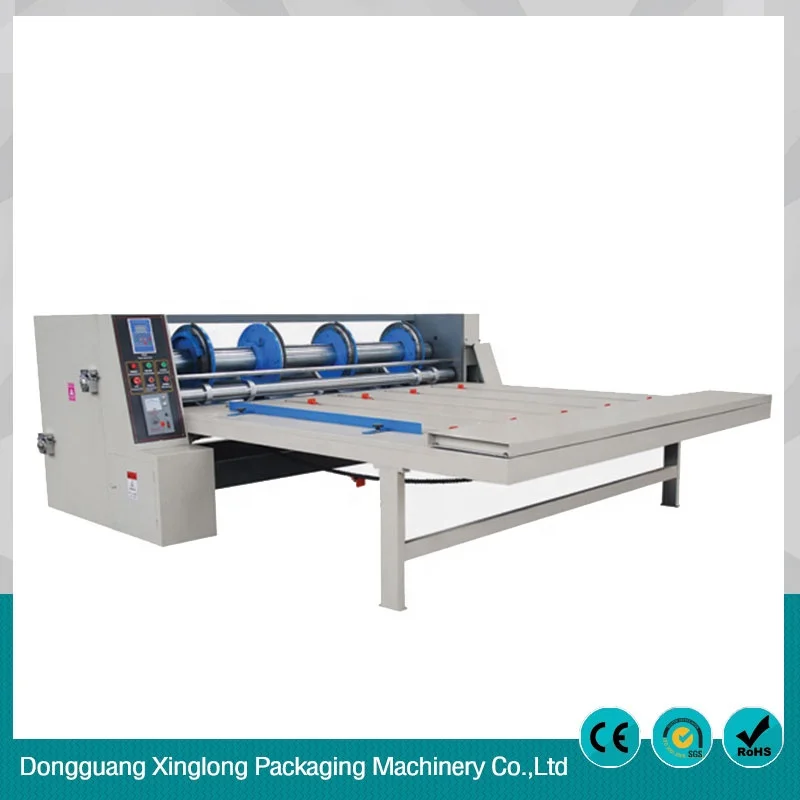

RS4 rotary slotting machine is a kind of comprehensive equipment that slotting, slitting, cutting corner, creasing. Its main feature is feeding single piece cardboard by hand, common bend cardboard also ok.
Performance
l Semi-automatic chain feeding system, side lay gauge adjust feeding position, ensure feeding accurately
l Planet gear type motorized observe and reverse adjustment in 360 degree
l Manual adjusting four box height cutter synchronous (motorized adjusting is option)
l All of shaft precision grind, chrome plated

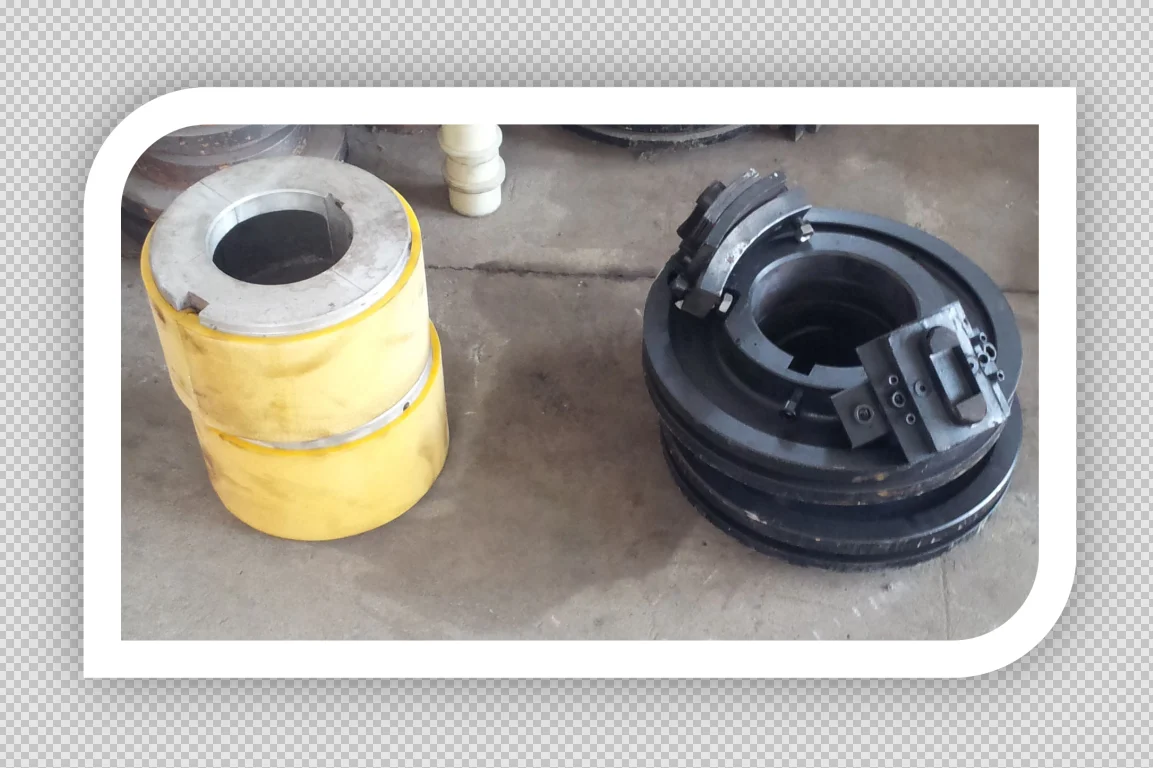

l High quality 48CrMo slotting knife with induction hardness
l Speed variable motor drive machine, speed is adjustable. (VFD motor option)
l Equipped with the photoelectricity counter, display production amount
Options: 1. Four slotting knife and crease move together(manual or motorized control)
2. Hole or hand hole device
Technology Parameter
Cutter die diameter | Φ405mm | Φ480mm | ||||
Model | FQK2200 | FQK2400 | FQK2600 | FQK2200 | FQK2400 | FQK2600 |
Max sheet size(mm) | 1200*2200 | 1200*2500 | 1200*2700 | 1400*2200 | 1400*2500 | 1400*2700 |
Min sheet size(mm) | 350*500 | 350*500 | 350*500 | 400*500 | 400*500 | 400*500 |
Min slot distance(mm) | 190*50*190*50 | 190*50*190*50 | ||||
Slot width(mm) | 7mm | 7mm | ||||
Sheet thickness(mm) | 3-10mm | 3-10mm | ||||
Work speed (pcs/min) | 0-60 | 0-60 | ||||
Power (kw) | 2.2 | 2.2 | ||||
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
