LDX2600
xinglong
Corrugated cardboard packaging machine
Electric
New
1 Year
Customized
Provided
Provided
China,Hebei
Ordinary Product
Lead edge feeding

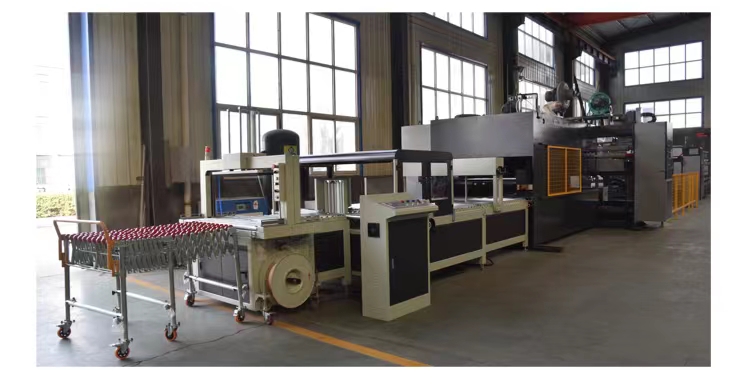

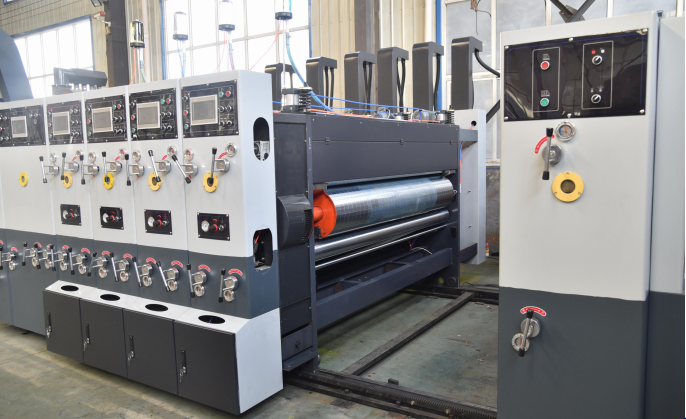

LDX serious Printing slotting die cutting folding gluing strapping inline

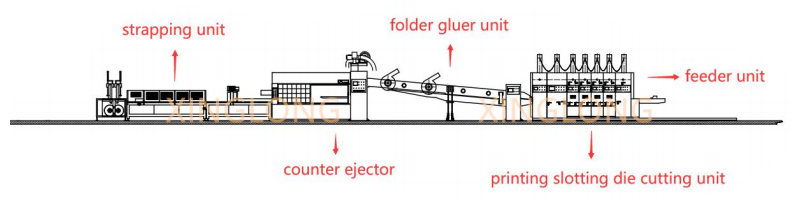

MACHINE DRAWINGS
Main Technology Parameters
| Model | LDX2600 |
| Machine inside width (mm) | 2600 |
| Max feeding paper size (mm) | 1200*2400 |
| Max effective printing size (mm) | 1200*2200 |
| Min coverage size (mm) | 350*720 |
| Design speed (pcs/min) | 260pcs/min |
| Max working speed (pcs/min) | 0-250pcs/min |
| Standard Thickness of printing plate | 4-6mm |
| Printing precision | ±0.5mm |
| Thickness of cardboard | 2-9mm |
| Wall thickness | 50mm |
| Main motor power | About 30kw |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC control with touch screen.
Lead edge feeder with vacuum sucntion, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually.
Main motor is VFD, working stability, low power consumption.
Details of each unit
1.light-pressure lead edge feeder unit

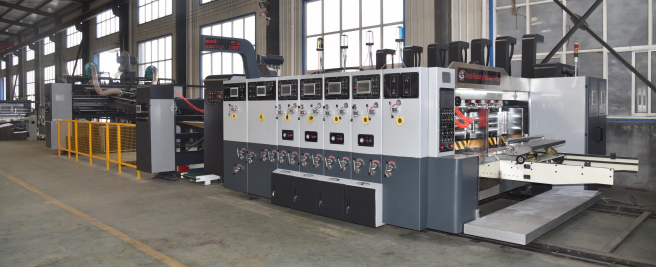

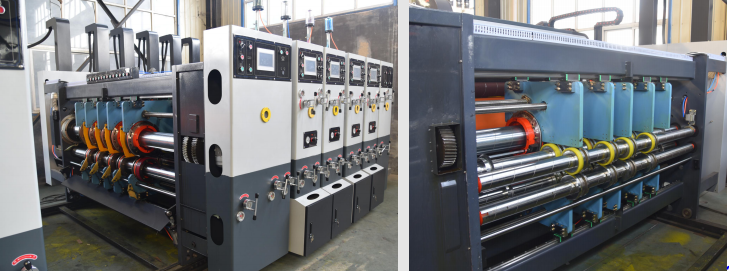

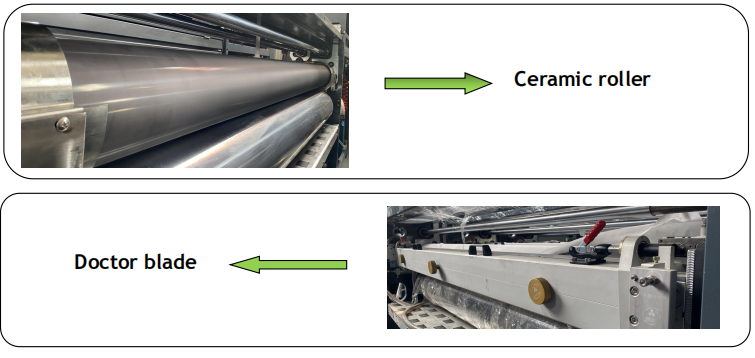

2.Printing unit

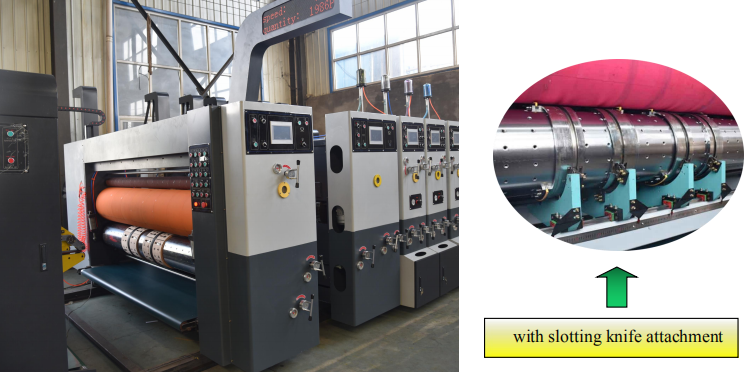

3.Slotting unit

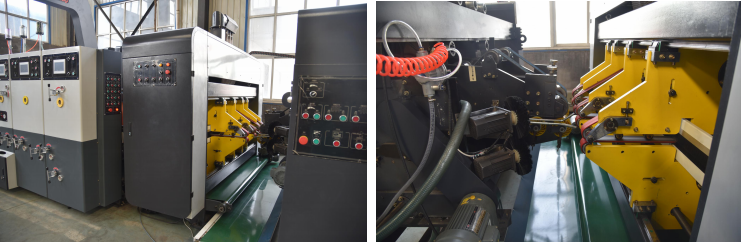

4.Die cutting unit
Option : 4 vibration unit

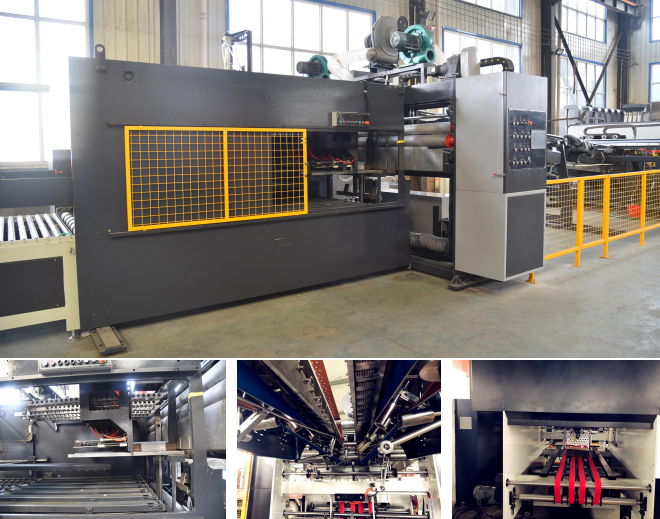

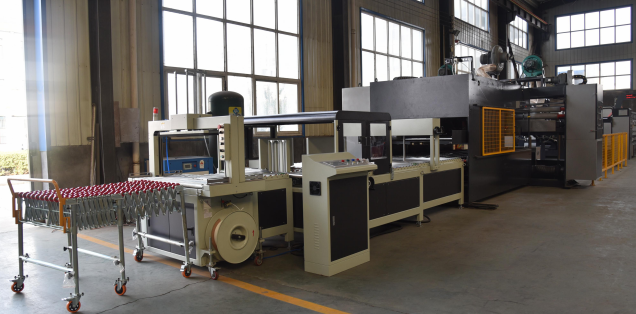

Inline automatic folder gluer
Auto strapping unit
Technical parameter
| Model | 1600 |
| Max package size | 2400*1600*400mm (L*W*H) |
| Belt size | Width 5mm Thickness: 0.5-0.55mm |
| Speed | 9-18 units/min |
| Machine weight | 2000kgs |
| Dimensions | 2100*5040*1670mm |
| Transportation | 0-50 m/min |
| Air source pressure | 0.5-0.8Mpa |
| Bundling tightness | 0-45kg |
