Popular sell WJ100-1600 3 5 7 ply corrugated cardboard production line

Share to:

Popular sell WJ100-1600 3 5 7 ply corrugated cardboard production line

Availability:

Quantity:



Inquire Add to Basket

Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, corrugated cardboard factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Product Type:
corrugated paper machine
Processing Type:
corrugated machine
Place of Origin:
Hebei, China
Brand Name:
xinglong
Voltage:
380/440V
Power(W):
180KW
Dimension(L*W*H):
60000*4000*3800
Weight:
120T
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Production Capacity:
20 sets per year
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 YEAR
Core Components:
Engine, Gear
Design speed:
80, 120, 150, 220m/min
color:
optional
package:
container
type:
corrugated carton box machine/milk carton packing machine
warranty:
one year
different grades:
3,5,7layer
Function:
Corrugated Paperboard Making Machine
Speed:
100m/min
Packing material:
PE Film

Product Description

Product Description

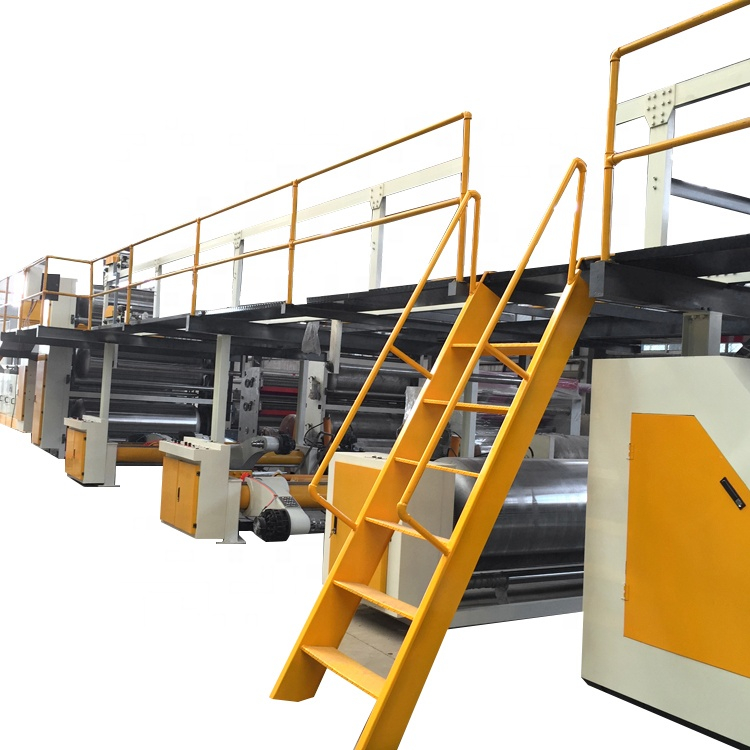

WJ-100-1800 3PLY CORRUGATED CARDBOARD PRODUCTION LINE

Product Application

Model:WJ100-1800mm 3 ply corrugated carton production line

Corrugated Cardboard Production Line is the professional equipment for producing corrugated cardboard.The 3ply,5ply,7ply,and multi-function corrugated cardboard production line mainly consist of the following equipment :Mill Roll Stand, surface paper(corepaper) pre-heater.Single facer, Conveying Span Bridge.Glue Application Machine, Double Facer,Slitter Scorer,Cut-off,Conveyer and Stacker,Steam heating System, Air compression system and Glue Making System, etc.Different models and quantities equipments can compose different models and grades 3ply,5ply,7ply corrugated paperboard production line. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 100-250m/min;the paper width 1400-2500mm and A/C/B/E/F five flutes for customer to choose from,the flute shape is UV shape and more like V shape.

WJ100-1800-i type three layer corrugated paperboard production line
Effective width	1800mm	Design produce speed	100m/min
Three layer work speed	80-100m/min	Five layer work speed	-----------------
Seven layer work speed	-------------------	The highest change single speed	100m/min
Longitudinal separation accuracy	±1mm	Cross-cutting precision	±1mm
Steam requirement	The maximum pressure 1.2Mpa	Common pressure 0.8-1.1Mpa	use2500kg-3000kg/Hr
Electricity demand	AC380V 50Hz 3PH	Total power≈120KW	Running Power≈60KW
Compressed air	The maximum pressure 9kg/cm2	Common pressure4-8kg/cm2	use1m³/min
Note	Speed the above targets required to achieve：effective width1800mm，Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.
	Top paper index	100g/㎡--180g/㎡ Ring crush index（N.m/g）≥8 (Water containing8-10%)
	Core paper index	80g/㎡--160g/㎡ Ring crush index（N.m/g）≥5.5 (Water containing8-10%)
	In paper index	90g/㎡--160g/㎡ Ring crush index（N.m/g）≥6 (Water containing8-10%)
Space	≈Lmin46mWmin10mHmin5m(The actual drawing to provider to provide audited prevail)

single facer machine

★Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet，not less than 1.5 meters away from the host，Fully enclosed full operation side
★corrugated roller material adopt 48CrMoalloy steel，quenched、Laser hardening，Surface finish，main roll of corrugated diameter¢ 280mm
★Corrugated roller, pressure roller materials provided by the Central Plains Steel，High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.

double facer

★Heating plate surface by grinding treatment, hot plate width 600mm, a total of 12 heating plate and cooling 4 m.

Heating plate with a container board production, in line with national standards for a class pressure vessel, with pressure vessel certificate and inspection certificate。
★Hot plate with intensive gravitational roll structure. Roll adopt pneumatic lifting.
★Heating plate heat transfer pipe temperature control sub-four-segment, with a temperature display.
★on cotton use two-cylinder S type cotton belt with the tensioning device.
★lower belt adopt pneumatic tensioning.
★Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard output。
★Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.
★hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly improves the utilization of steam.

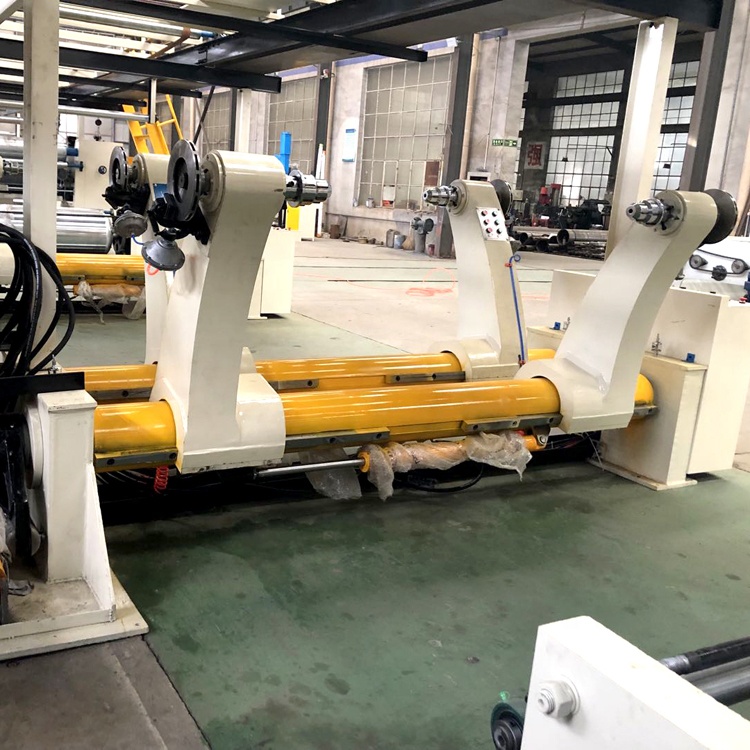

Hydraulic mill roll sand

★Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld，paper car adopt 10mmwelded stell，the length of track is 4500mm

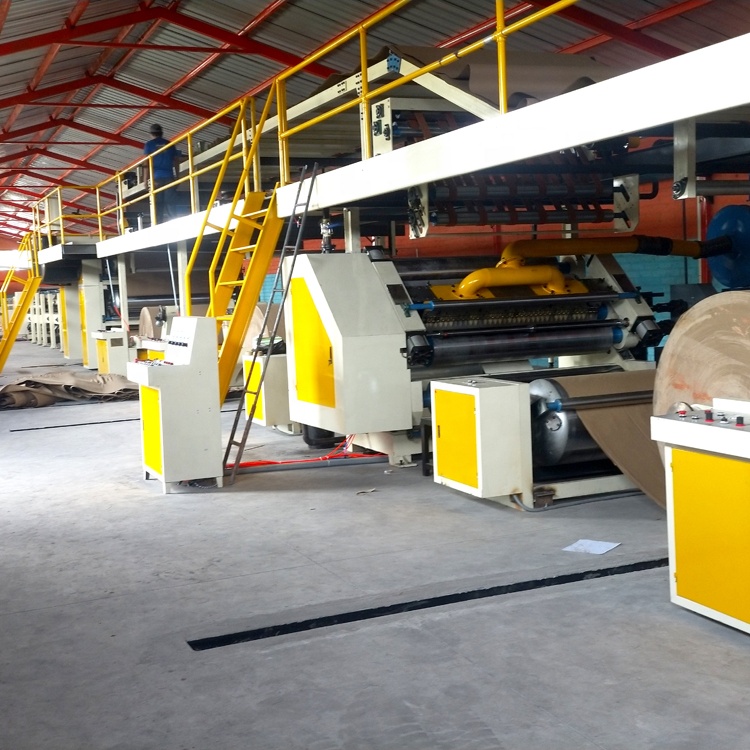

Customer Photos
