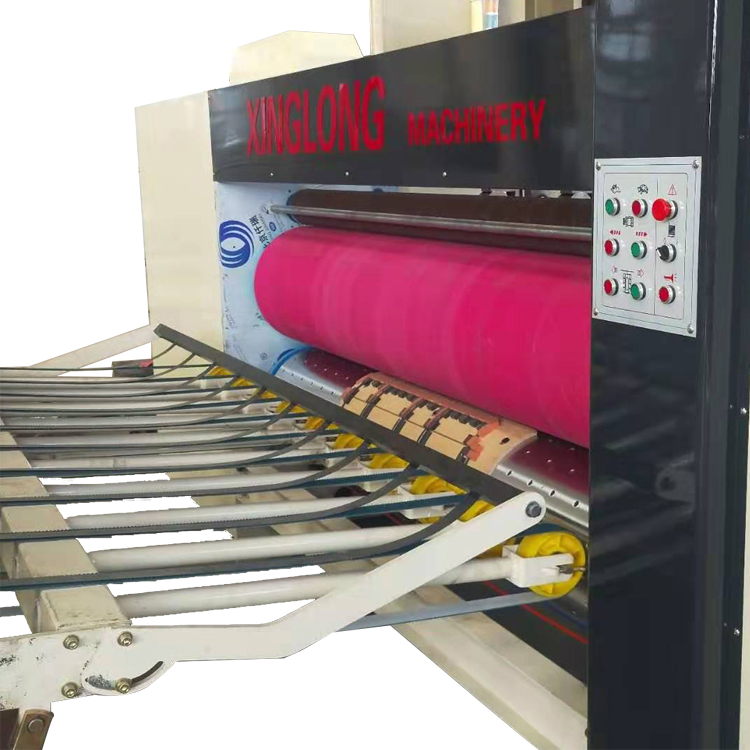

Pizza box carton making machine corrugated carton rotary die cutting machine

Availability:
Quantity:
  • Other, automatic

  • 1 YEAR, oe year

  • Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles

  • Film, Case

  • Plastic, Wood

  • Automatic

  • Electric

  • 380/440

  • 5kw

  • Hebei, China

  • xinglong

  • 5 T

  • 580*420*210

  • CE,SGS

  • Easy to Operate

  • Engineers available to service machinery overseas

  • 150pcs/min

  • customized

  • wooden cases, wooden pallets

  • carton forming

  • Making Carton

  • corrugated carton

Product Description

corrugated carton making machinery rotary die cutting machine

  1. lead edge feeding ,save manpower,high speed.

  2. Youli cushion imported from Taiwan or germany

  3. Double-warm abrasive belt cushion correction facility.

  4. Cushion axial floating automatically to improve the utilization rate of cushion.The range of floating is 0-20mm(from middle to left or right)

  5. Speed difference self-compensating function.

  6. The axial  adjustment of platen roller is electric/manual, range:0-20mm(left to right )

  7. Die-cutting phase is adjusted by electric planet gears, keyless junction.


model
AM1022
AM1224
AM1426
design speed
180pcs/min
150
120
working speed
150
120
100
die cutting roller dia.
340
405
480
Max cardboard size
1000*2200mm
1200*2400mm
1400*2600
cardboard thickness
1.2-9mm
1.2-9mm
1.2-9mm

die cutter
The lead edge feeding has the advantages of good stability, fast working speed, low failure rate and high efficiency.
The rubber feeding roller with resorte device, feeding accurately, stably, not destroy paperboard strength if the feeding space
is very small.
The left and right side baffles adopt electric control , the back baffles adopt electric adjustment, the front baffle space
Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall
Electrically adjusted phase die-cutting position
The transmission gear is automatically sprayed and lubricated, and the service life of the gear is prolonged.
