ARS4-1626
xinglong
Automatic rotary slotting machine
Electric
China,Hebei
New
Provided
Easy to Operate
Ordinary Product
Video Technical Support
1 Year
High quality

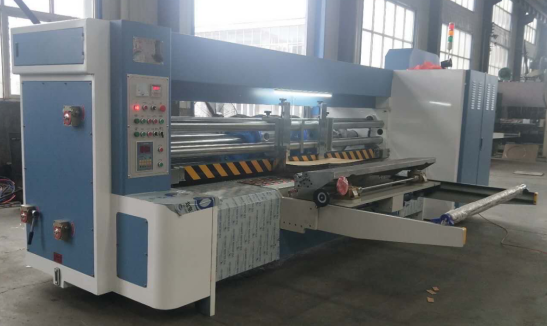

Automatic Rotary slotting Machine
IMPORTANT FEATURES
This machine adopts the vacuum adsorption lead edge feeding style , can once complete slotting, corner cutting, creasing and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing in short time
The power motor adopts frequency conversion motor, running smoothly and saving energy.
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with Shaving treatment, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The slotted phase is adjusted by the planetary gear structure and is adjusted by the electric digital 360 degree.
Spray lubrication, longer service life of gear transmission.
Photoelectric automatic counter.
Manual sync adjust slotting and creasing together ， easy to adjust, save time and labor.

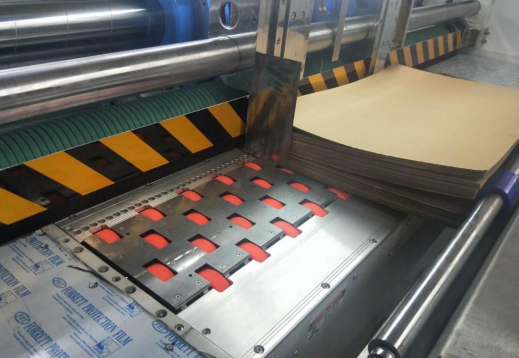

Feeding unit
Roller type front feeding structure,rounds,multipoint suction feeding,high friction,high speed,paper feeding smoothly and accurate.Symmetrical structure can install two rolls.
Automatic adjust side and rear baffle by electric
Side baffle with cardboard patting device, can make cardboard tidy and easy to feed smoothly.
Top feed roller is made of high qualified steel, the outside be wrapped wear-resisting rubber, don’t destroy flute, guarantee feeding precision
Bottom roller used high-quality steel, precision grinding, knurling, hard chrome plated .

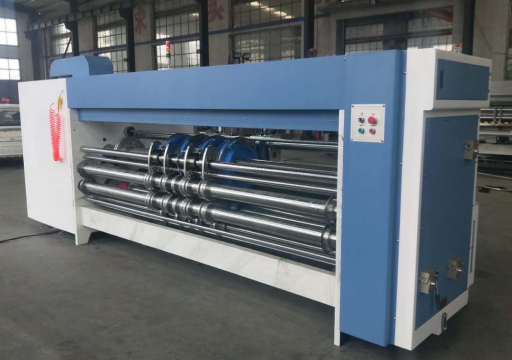

Slotting unit
The slotting knife and creasing wheel can synchronous transverse adjustment by hand Easy to adjust and save time.
4 sets Slotting knife width is 7mm. good material, after heat treatment, grinding, tooth slotted knife ,double-piece model cutting edge knife, knife edge sharp, high precision
Crease gap and knife gap adjusted by self-lock mechanism
Optional :punching carton air hole, carton handling hole.
Main Technical Parameter
| Model | 1626 |
| Max cardboard size (mm) | 1600*2600 |
| Min cardboard size (mm) | 350*720 |
| Total power | 5.5kw |
| Slotting width | 7mm |
| Max speed | 100pcs/min |
| Adoptable thickness of paperboard | 2-10mm |
| Min slotting distance (positive knife) | 150*150*150*150 |
| Min slotting distance (positive knife and negative knife) |
