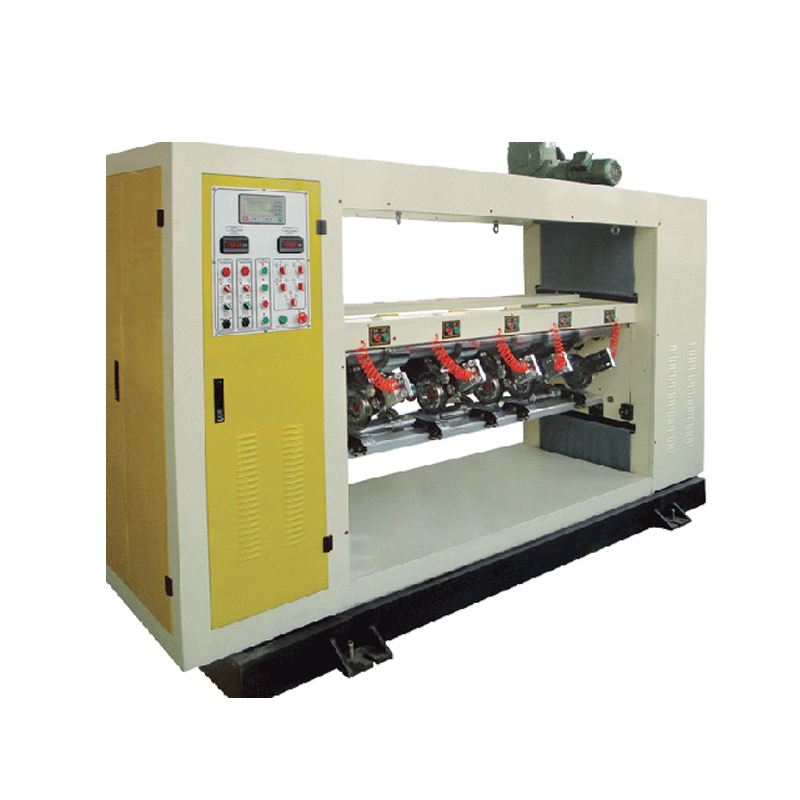

Online lifting type thin blade slitter scorer machine PLC corrugated cardboard production line

Quantity:
  • Other
  • 1.5 years
  • Manufacturing Plant, Food & Beverage Factory, packaging
  • New
  • Apparel, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Beverage, packaging
  • Cartons
  • Paper, Wood
  • Automatic
  • Electric
  • 380v
  • 8.3kw
  • Hebei, China
  • XINGLONG
  • 2.5T
  • 3200*1200*2100mm
  • CE ISO9001
  • Long Service Life
  • customed
  • meet your demand
  • Engineers available to service machinery overseas
Product Description
Online lifting thin blade slitter scorer machine
Max slitting width
1800mm
crease speed
120-150m/min
Max thickness of cardboard
11mm
axial range
±65mm
Knife and creaser amount
5 knives 8scorers
Dimension(L×W×H)
3200×1200×2100mm
Total power of motor
8.33KW
Weight
About 2500kg
Knife diameter
φ200mm
Knife thickness
≤1.3mm
Min slitting width
140mm
Min crease width
55mm


  • Uses and Features:

  The machine is an important component of corrugated cardboard production line, it is used to slit and scorer for cardboard.     Electric adjustment blade distance, pneumatic automatic locking fixed.
The overall can be lifting, meet different production line and corresponding to the height of the paper.
The machine is equipped with electric axial displacement device, effective cooperation of paper offset.
Manually adjust the cardboard specifications, simple and practical. Transmission of the synchronous belt, high accuracy.

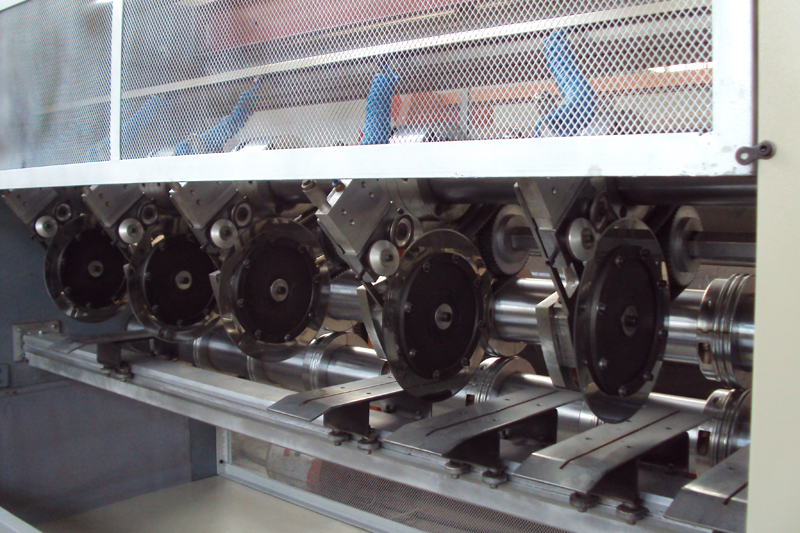

Thin knife cutting part adopt newly type thin blade high-speed cutting machine, cardboard incision level off is smooth without crashing collapsing; Pneumatic sharpening; this part to achieve production process to be automatic and manual sharpening, sharpening time and clearance can be set to ensure the blade, time blade sharp. Various frequency speed, the speed encoder get the production speed date by speed measurement wheel .The programmable logic controller (PLC) issued instructions, to adjust the speed of the line pressing motor, for ensure the production line running with synchronous.

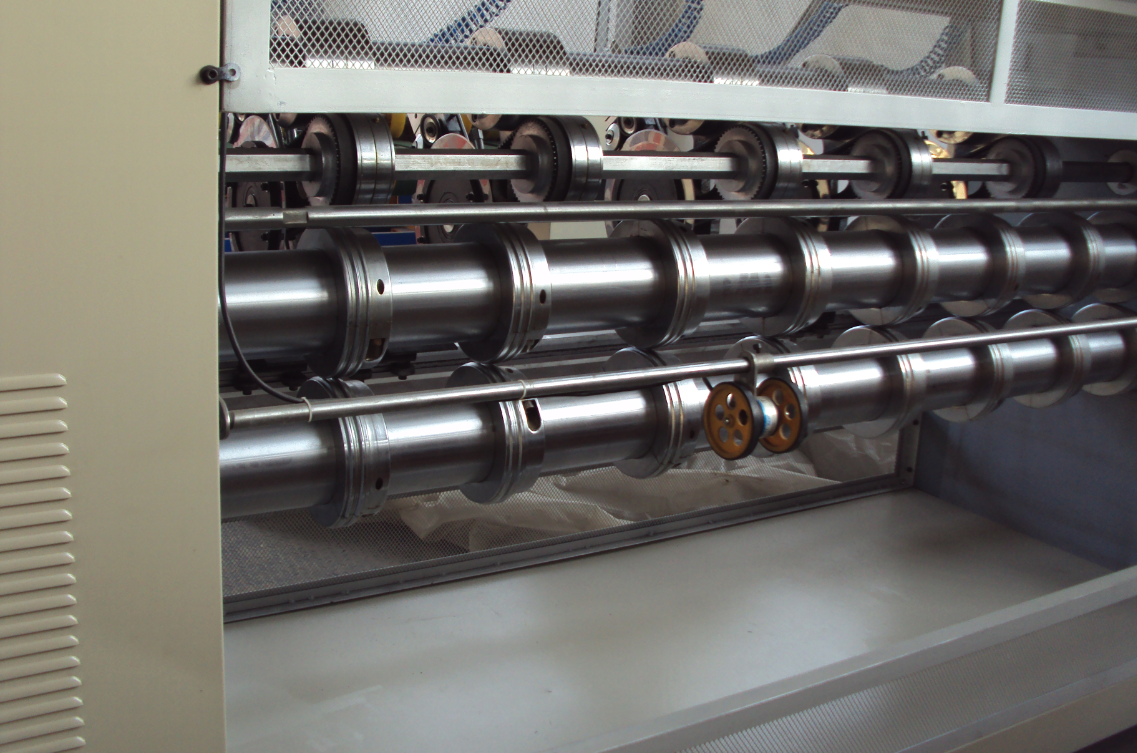

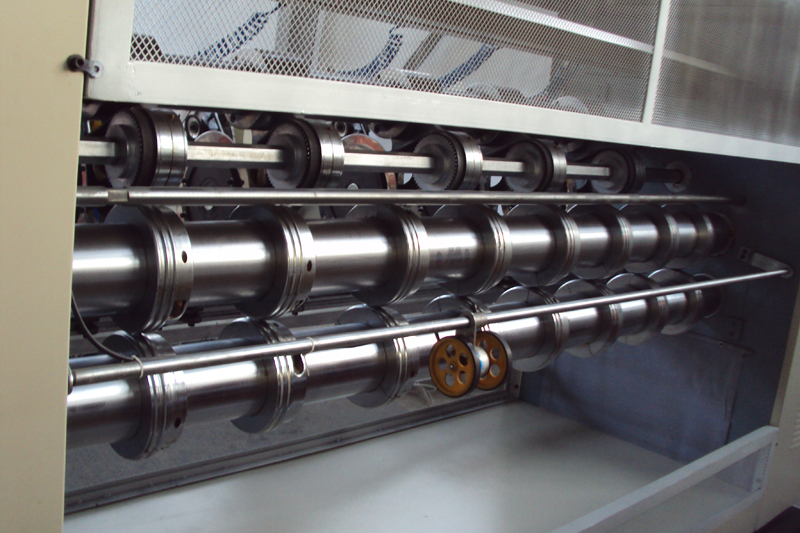

Details Images
Product Usage







Usage:
slitting and creasing
FAQ
1. Q: Are you a manufacturer, trading company or a third party?A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.2. Q: How does your factory do regarding quality controlling?A: 1) All raw material we used are environmental-friendly2) Skillful workers care every details in handling the producing and packing process3) Quality control department are specially responsible for quality in each processWe have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.3. Q: What is the payment terms?A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.4. Q: How about the after-sale service?A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.2) To solve the problems with videos/pictures.3) One year warranty for spare parts change.
