One year warranty corrugator electrical mill roll stand for raw paper

One year warranty corrugator electrical mill roll stand for raw paper

- Mill roll stand is important unit in the corrugated cardboard production line, it is used to hold the roll paper (liner board and medium board), and adjust tension of paper keep paper go in next unit smoothly.
- Four arms are symmetrical in two side, it can hold 2 rolls of paper one time.
- Roll paper lift-lower, clamp, loosen, movement, contraposition operated by motorize.
- It used pneumatic brake to adjust tension of paper.
- Bulge clamp reduce paper waste.
It used cycloid motor to control arm clamp and lift-down, when the arm carry overload or touch on floor the motor can protect machine from damage.

Features and characteristics:

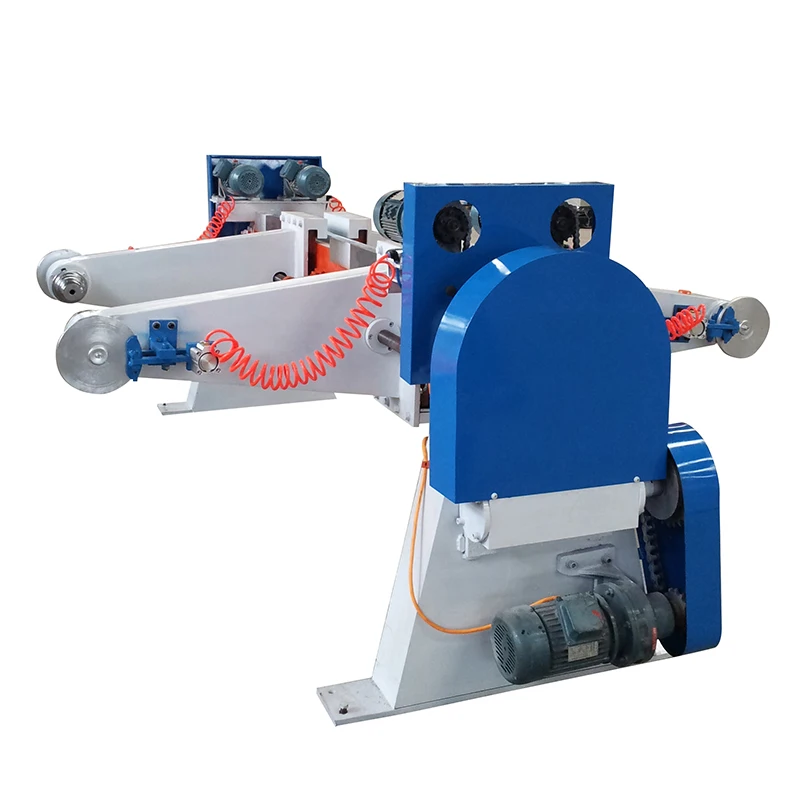

RS-1500mm electrical shaftless mill roll stand

	1. Paper roll lift-lower, loosen, movement, contraposition operated by motorize.
	2. Paper roll strain control by pneumatic brakes.
	3. Max diameter of reel paper: 1500mm
	4. Width of paper: 600mm-1600mm, 600mm-1800mm, 600mm-2200mm
	5. Installment power: 6KW
	6. When the clamping moving up and down selects cycloid motor, and the thick paper used for covering arm overload or touch the ground, it'll be effective to safeguard the machinery not to be damaged.

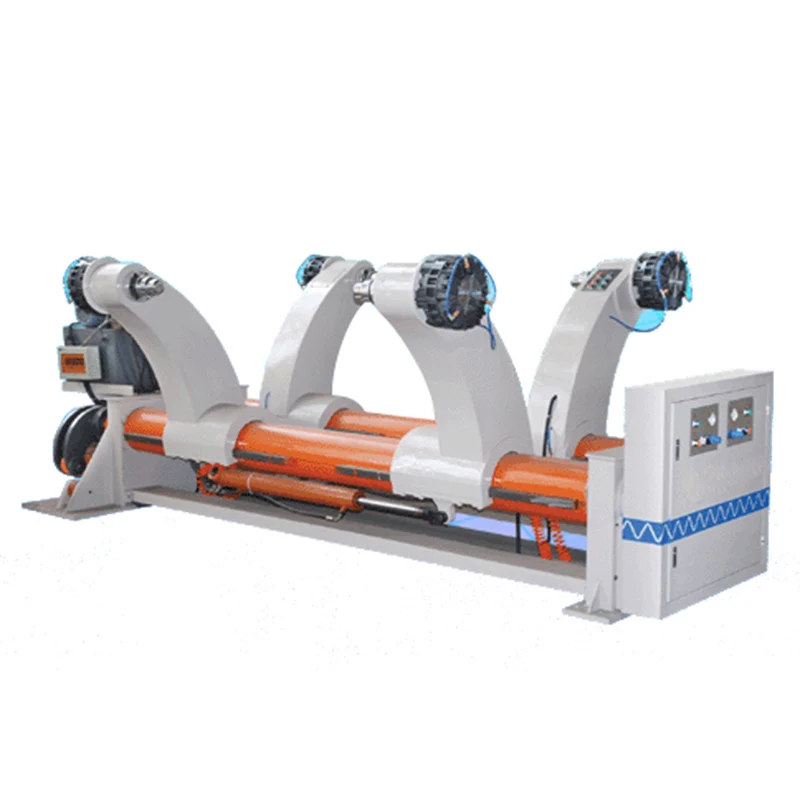

ZJ-Y hydraulic shaftless mill roll stand

	1. Max diameter of paper roll: 1500mm
	2. Effective width: 1400-2500mm
	3. Paper roll lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. Feeding paper quickly.
	4. Adopts pneumatic brake, the finial adopts taper style or bulge style.

If you are also interested in the following product, please click the link for video.

3/5ply cardboard production line Customized speed single facer High speed automatic printer slotter

Multi color semi auto printer slotter Rotary die cutting machine Rotary slotter grooving machine
