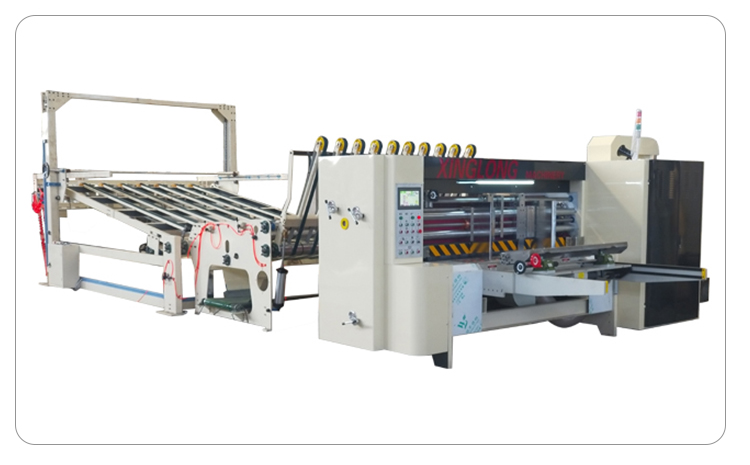

One year warranty automatic rotary die cutting machine

Availability:
Quantity:
  • Manufacturing Plant, Food & Beverage Factory, Food Shop, Construction works , Food & Beverage Shops

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Die-cutting Machine, automatic die cutting machine/carton machine die cutter

  • No

  • Hebei, China

  • Xinglong

  • 380V 50Hz customized

  • Customized

  • About 4 tons

  • CE/ISO9001

  • High Productivity

  • Engineers available to service machinery overseas

  • One year warranty automatic rotary die cutting machine

  • Customized

  • 150pcs/min

  • 6mm

  • Lead edge

  • 12mm

  • 320mm

  • 1 year, 1 Year

One year warranty automatic rotary die cutting machine



Description

•Adopts lead edge feeding system . Adjust wind volume according on cardboard bending degree to ensure feeding paper smoothly.
•The rubber roller with air cylinder device, feeding accurately, stably, not destroy paperboard strength if the feeding space is very small.
•The left and right side baffles adopt electric control with data display(options: pneumatic lifting device) the back baffles adopt electric adjustment, the front baffle space manual adjustment.
•Equipped with colors touch screen take 360 degree set to die roller, display product speed and set production quantity.
•The rubber roller adopt mechanical control the position move left and right. The movement distance is 40mm.
•The space of rubber roller with die roller adopt automatic locking device. And with air cylinder can adjust quickly, reduce rubber wear, prolong use lift.
•With speed compensation device make rubber roller rotate with die roller, make the surface speed of the rubber cushion is completely controlled by dies. The shape of the carton will absolutely equal to the dies.
•With rubber repair device, the rubber can be used after repaired.

model
AM1022
AM1224
AM1426
design speed
180pcs/min
150
120
working speed
150
120
100
die cutting roller dia.
340
405
480
Max cardboard size
1000*2200mm
1200*2400mm
1400*2600
cardboard thickness
1.2-9mm
1.2-9mm
1.2-9mm


            1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
