New technology machine to make cardboard boxes corrugated cardboard production line

Quantity:
  • Packaging Line

  • Manufacturing Plant

  • Video technical support, Online support, Spare parts, Field maintenance and repair service

  • None

  • None

  • New

  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

  • Cartons, Film, Case

  • Paper, Plastic

  • Automatic

  • Electric

  • 380V/410V/440V 50Hz

  • Hebei, China

  • XINGLONG

  • Machine model

  • About 100tons

  • CE

  • 1 YEAR, 12 months

  • Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

  • Energy saving

  • Ordinary Product

  • Provided

  • Provided

  • 1.5 years

  • Gear, Gearbox

  • New technology machine to make cardboard boxes

  • A,B,C,E,UV(Depends on the customer's requirement)

  • 1600-2200mm

  • 60-220m/min

  • Customized

  • 380V, 50Hz

  • About 100KW

  • Optional

New technology machine to make cardboard boxes

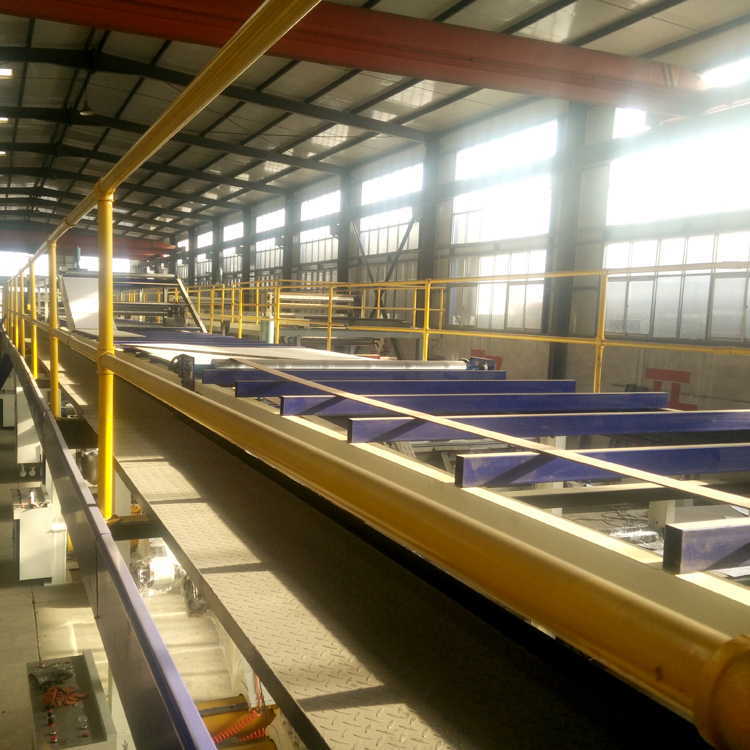

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard. The production line consists of the mill roll stand, liner preheater, single facer machine, conveyor bridge, gluing machine, double facer machine, slitter scorer, cut-off, conveyer and stacker, heating system, air cmpression system and gue making system and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad,our company has developed and designed these production lines with the speed 60-220m/min, the paper width 1600-2200mm and A,B,C,E,UV flute production line can satisfy different customers.

Main units:

No.

Name

Sets

Comment

1

Mill roll stand

5

Electic mill roll stand , expansion dop top, pneumatioc brake

2

Single facer

2

vac-sorb,φ320 alloy roller ,cardan drive

3

Feeding paper bridge

1

Electric adjust deviation,adsorb tension

4

Second gluing machine

1

Conversion synchronous control

5

Triply pre-heater

1

φ 800,electic wrap angle(including qualification certificate )

6

pre-heater

3

φ 800,land type electic wrap angle(including qualification certificate )

7

Dry formed

part

1

520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )

8

Heat formed

part

1

Adopt up and down intensive roller ,length 8m

9

Feeding paper belt

1

High qualit carton belt , electic promote

10

Thin blade slitter scorer mahcine

1

5 blade 8 line , electric Correct error , alloy blade

11

Corss cutter

1

Computer control cutting cardboard length 500-9999mm; cutting cardboard precision ±1mm

12

Main drive

1

Main power 25KW

13

Make paste system

1

Barrel type ,electic stir circulate glue design

14

Stand feeding paper car

1

Includ sliping way

15

Pump

1

Electic aeration

16

Electic system

1

One Operate cabinet ,one sinlge facer 1 main drive

17

Steam system

1

Not including heat source and pipe

18

Gantry stacker

1

Belt drive type

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.

If you meet any other questions, please feel free to contact us. click here
