New style 220 speed cnc automatically gluing machine

Quantity:
  • Gluing Machine, cnc automatically gluing machine
  • New
  • Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
  • Cartons
  • Paper
  • Automatic
  • Electric
  • 220V/380V
  • 7-11.5kw
  • Hebei, China
  • XINGLONG
  • XL-automatic folder gluer
  • 2600*660*1110 mm
  • 1100 kgs
  • CE ISO9001
  • New style 220 speed cnc automatically gluing machine
  • 150sheets/min
  • 220sheets/min
  • 1200*2800mm
  • 300*800mm
  • 3000*15500mm
  • 11.5kw
  • Easy to operate and maintain
  • 1 Year
  • Engineers available to service machinery overseas

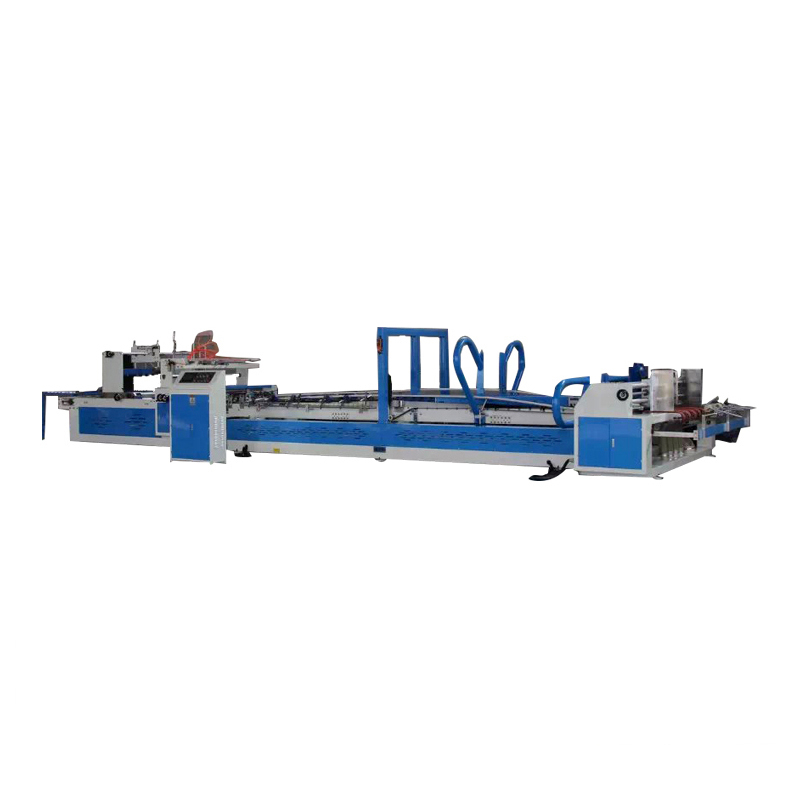

New style 220 speed cnc automatically gluing machine

QZD automatic folder & gluer consist of three parts which feeding part, gluing folding part, counting and piling part. Digital display adjust speed, microcomputer adjust width, with easy, fast, stable, precision, automatically feed, fold and glue, count, pill and output. Average speed: 150sheets/min, Max speed: 220sheets/min, high efficiency energy save.

Model

QZD-2000

QZD-2400

QZD-2800

Max. cardboard

1000*2000mm

1000*2400mm

1200*2800mm

Min. cardboard

300*680mm

300*800mm

300*800mm

Installation area

2400*13500mm

2800*15500mm

3000*15500mm

Power required

11.5kw

11.5kw

11.5kw

Characteristics:

- Automatically finish the top folding and middle folding, meanwhile finish the glue belt stick off the upper and lower part, save labor and time.

- Suitable different cartons, adjust fast and easy.

- The machine work stable, the effective is firm and good looking.

- Easy to operate and easy to maintain.

- Automatically amend carton right-angle degree.

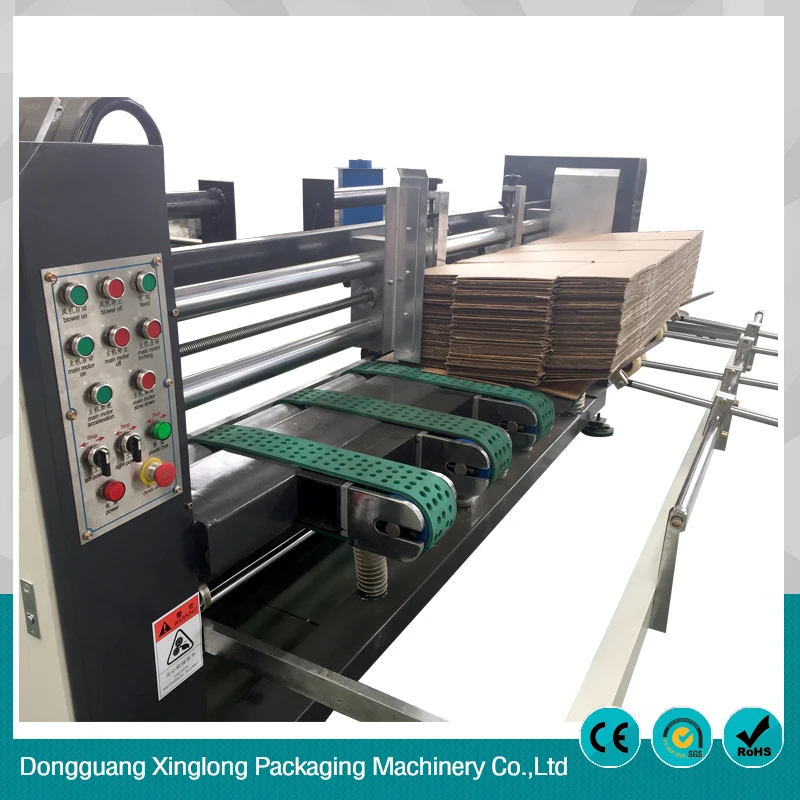

Feeding section:

- Vacuum suction feeding to feed warping paperboard easily.

- Quality electromagnetic clutch and brake adopted, feeding section controlled independent, operation easily.

- Scorer wheel adjustable, suit for 2-8nn thick paperboard.

- Second creasing structure can impress again the paper board which was not creased well.

Gluer &folder section:

- Simples structure and high reliability, glue quantity adjustable, cleaning easily.

- Stainless steel glue wheel adopted, long life and saving glue cost.

- Imported quality rubber belt adopted , automatic folding.

- With paperboard rectify device and creasing rectify device.

Counter & stacker section:

- Stacking and counting are simple and reliable.

- Digital control, operation easily and reliable, No-stop put in data and automatic counting.

- With rectification function.

- Paperboard counting and put out by pneumatic, stable and quickly.

1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

5. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

2) To solve the problems with videos/pictures.

3) One year warranty for spare parts change.

If you meet any other questions, please feel free to contact us. click here
