xinglong
New
Provided
Automatic
China,Hebei
Packaging line
25kw
Electric
Easy to Operate
1 Year
Ordinary Product

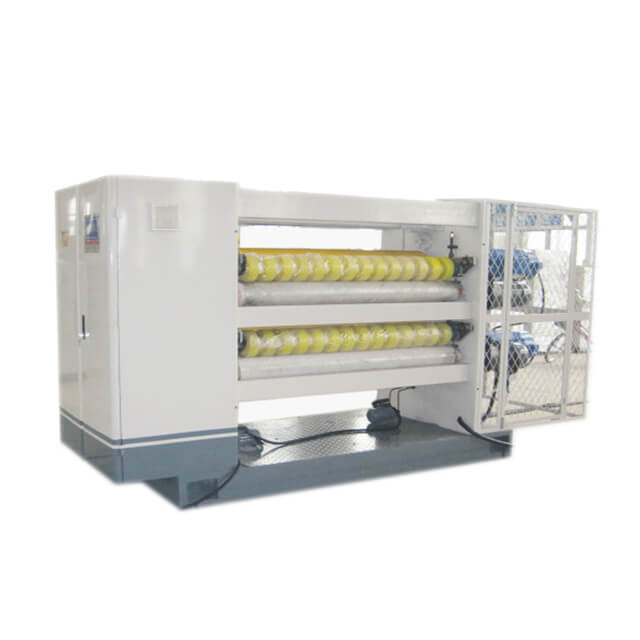

NC Cut off Machine with double Helical Cross Cutter
Production Description
1.Structure and Features:
Cutting length:500mm-9999mm. Cutting precision:±1mm.
Knife shaft gear using precision forging steel material high frequency quenching, lateral clearance transmission , adopt the keyless connection mode, high driving accuracy.
Helical knife structure,type sawtooth knife,decrease cutting obstruction,low noise.
Balance treatment, high quality alloy steel for blade shaft,which helps to keep it good stability.
Sun-shape wheels press cardboard in the front conveyer.The transporting is stable and with even pressure,which avoid jam caused or broken cardboard.
Precision adjustable gap gear, ensure blade precision engagement, running balance.
Machine base and wall panel adopt the grey cast iron, good rigidity, strong vibration resistance.
The servo controller control the servo motor, MCGS brand 10 inch touch screen
2.Technical Parameter:
Machine width | 1800/2000/2200mm |
Design speed | 150m/min |
Economy speed | 100-150m/min |
Cutting length | 500-9999mm |
Cutting precision | ±1mm(even speed) |
Total power | 25 kw |
3.Main Machine Parts:
No. | Name | Specifications and brand | Original |
Mechanical department | |||
1 | Wallboard | HT200 cast iron | Hebei,China |
2 | Base seat | HT200 cast iron | Hebei,China |
3 | Knife | W18Cr4V | Nanjing,China |
4 | Bearing | HRB or Chinese famous brand | China |
Electrical and motor category | |||
5 | Touch screen | MCGS 10 inch | Beijing,China |
6 | Servo driver | KEB Power : | Germany |
7 | Main drive motor | AC Servo motor power:22KW | Futian，Shanghai |
8 | Output motor | power：1.5KW*2 | Hebei,China |
9 | Low-voltage electric parts | “Chint” or other famous brand | China |
