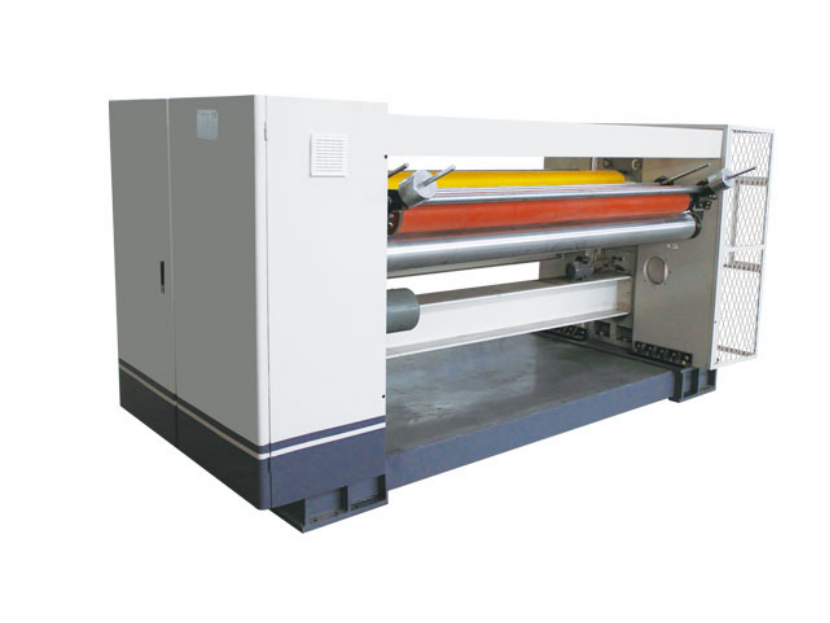

NC-25 Cut Off Machine
1.Machine Function:
The knife adopts spiral steel helical knife structure, saw-tooth knife type, scissors shearing, keeping small shear force and long service life.
The knife rollers adopt high quality precision forged steel material, having good stability after balanced.
The knife shaft driving gears adopt precision forged steel material,realizes no gap driving after high frequency quenching,and advanced keyless connection method to keep high transmission precision.
The sun wheel pressing method ensure smooth conveying,uniform pressure, and not easy to crush the board or cause blockage.
Servo motor driving,10.4 inch color touch screen display of Taiwan Eview produced.
This model is storage-energy brake (non-energy brake), low energy consumption in the producing process, saving more than 70%.
Independent oil pump and filter, with two sets of copper tubes distributed in each gear position, to supply, lubricating and cooling the oil.
2.Machine Technical Parameter
Working width (mm) | 1800 | 2000 |
Design Speed (m/min) | 120-200 | 100-200 |
Working Speed (m/min) | 100-180 | 100-180 |
Cutting Length (mm) | 500-9999 | 500-9999 |
Cutting Precision(uniform velocity) | ±1mm | ±1mm |
Upper and Lower Knife Shaft Center Distance | φ265mm | φ265mm |
Main Servo Motor | 30kw | 30kw |
Paper Feeding Motor(frequency control the speed) | 3 kw | 3 kw |
Lubricating Oil Pump Motor | 0.18kw | 0.18kw |
Note: All the rollers are ground and hard chrome-plated (except for the upper and lower knife shafts) |
