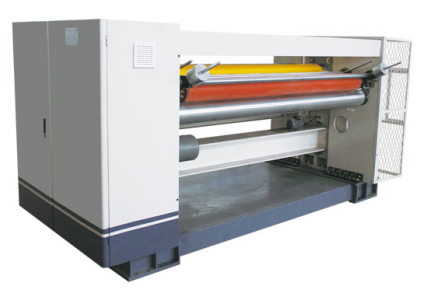

NC-25 Cut off Machine
1.Machine Function:
The knife adopts spiral steel helical knife structure, saw-tooth knife type, scissors shearing, keeping small shear force and long service life
The knife rollers adopt high quality precision forged steel material, having good stability after balanced
The knife shaft driving gears adopt precision forged steel material,realizes no gap driving after high frequency quenching,and advanced keyless connection method to keep high transmission precision
The sun wheel pressing method ensure smooth conveying,uniform pressure, and not easy to crush the board or cause blockage
Servo motor driving,10.4 inch color touch screen display of Taiwan Eview produced
This model is storage-energy brake (non-energy brake), low energy consumption in the producing process, saving more than 70%
Independent oil pump and filter, with two sets of copper tubes distributed in each gear position, to supply, lubricating and cooling the oil
2.Machine Technical Parameter:
Working Width | 1800mm | 2000mm |
Design Speed | 120-200m/min | 100-200m/min |
Working Speed | 100-180m/min | 100-180m/min |
Cutting Length | 500mm-9999mm | 500mm-9999mm |
Cutting Precision(uniform velocity) | ±1mm | ±1mm |
Upper and Lower Knife Shaft Center Distance | φ265mm | φ265mm |
Main Servo Motor | 30kw | 30kw |
Paper Feeding Motor(frequency control the speed) | 3 kw | 3 kw |
Lubricating Oil Pump Motor | 0.18kw
| 0.18kw
|
Note: All the rollers are ground and hard chrome-plated (except for the upper and lower knife shafts) |
3.Main Components Brand
Components Name | Brand |
Full AC Servo Motor | Kebe |
Driver | Kebe |
Conveying Frequency Motor | Hebei |
Bearing | Haerbin |
Synchronous Belt | Shanghai |
Main Electrical | Schneider |
Approach Switch | OMRON |
Feeder Servo Control System | Kebe |
Rotary Encoder | Wuxi |
Conveying Inverter | Delta |
Human Machine Interface | Taiwan |
NC-25 Cut off Machine
1.Machine Function:
The knife adopts spiral steel helical knife structure, saw-tooth knife type, scissors shearing, keeping small shear force and long service life
The knife rollers adopt high quality precision forged steel material, having good stability after balanced
The knife shaft driving gears adopt precision forged steel material,realizes no gap driving after high frequency quenching,and advanced keyless connection method to keep high transmission precision
The sun wheel pressing method ensure smooth conveying,uniform pressure, and not easy to crush the board or cause blockage
Servo motor driving,10.4 inch color touch screen display of Taiwan Eview produced
This model is storage-energy brake (non-energy brake), low energy consumption in the producing process, saving more than 70%
Independent oil pump and filter, with two sets of copper tubes distributed in each gear position, to supply, lubricating and cooling the oil
2.Machine Technical Parameter:
Working Width | 1800mm | 2000mm |
Design Speed | 120-200m/min | 100-200m/min |
Working Speed | 100-180m/min | 100-180m/min |
Cutting Length | 500mm-9999mm | 500mm-9999mm |
Cutting Precision(uniform velocity) | ±1mm | ±1mm |
Upper and Lower Knife Shaft Center Distance | φ265mm | φ265mm |
Main Servo Motor | 30kw | 30kw |
Paper Feeding Motor(frequency control the speed) | 3 kw | 3 kw |
Lubricating Oil Pump Motor | 0.18kw
| 0.18kw
|
Note: All the rollers are ground and hard chrome-plated (except for the upper and lower knife shafts) |
3.Main Components Brand
Components Name | Brand |
Full AC Servo Motor | Kebe |
Driver | Kebe |
Conveying Frequency Motor | Hebei |
Bearing | Haerbin |
Synchronous Belt | Shanghai |
Main Electrical | Schneider |
Approach Switch | OMRON |
Feeder Servo Control System | Kebe |
Rotary Encoder | Wuxi |
Conveying Inverter | Delta |
Human Machine Interface | Taiwan |
