450F
xinglong
Automatic
Electric
New
China,Hebei
Customized
Easy to Operate
1 Year
Video technical support
Ordinary Product
Multi functional

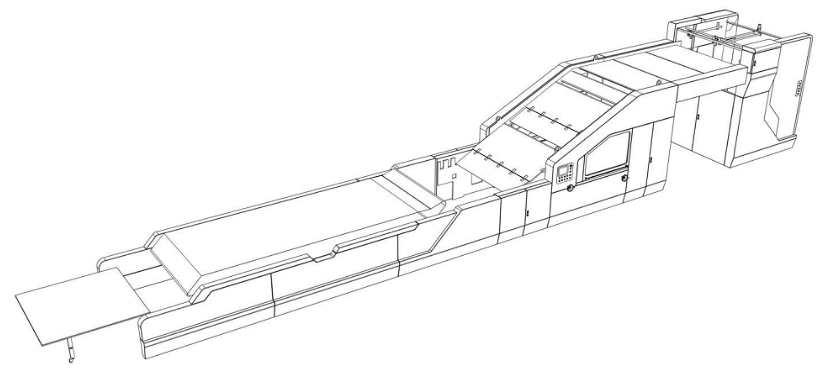

AUTOMATIC 5PLY FLUTE LAMINATOR MACHINE
Introduction:
The fully automatic multi layer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

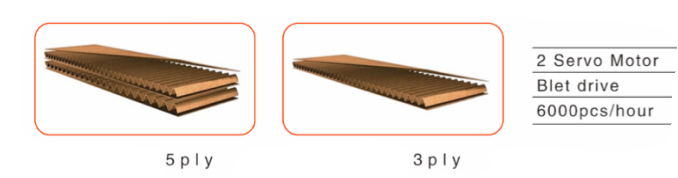

1 MACHINE CAN DO
3PLY/4PLY/5PLY
3 IN 1
Specification
| Model | 1300F | 1450F | 1600F |
| Max paper size | 1280*1100mm | 1430*1100mm | 1580*1100mm |
| Min paper size | 500*500mm | ||
| Face paper thickness | 150-600gsm | ||
| Bottom paper | A/B/C/E/F/G 2ply flute | ||
| Precision | 1.5mm | ||
| Max speed | 6000pcs/h | ||
| Height of face paper pile | 1600mm | ||
| Face paper table capacity | 1500kg | ||
| Height of bottom 2ply pile | 400mm | ||
| Total power | 20kw | ||
| Dimension | 1500*2200*2600mm | 1500*2400*2600mm | 1500*2500*2600mm |
| Machine weight | 5000kg | 5500kg | 6000kg |
