Middle speed 5 color printing slotting die cutting folding gluing inline

  • MLDX922


  • New

  • xinglong

  • China,Hebei

  • Provided

  • 1 Year

  • Video technical support

  • Ordinary product

  • ±0.5mm

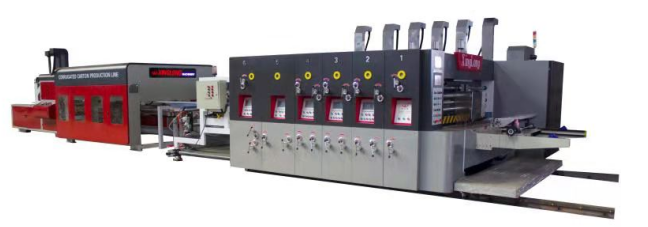

MLDX 5 color Printing slotting die-cutting folding gluing inline

MLDX 印刷联动线MLDX 印刷联动线

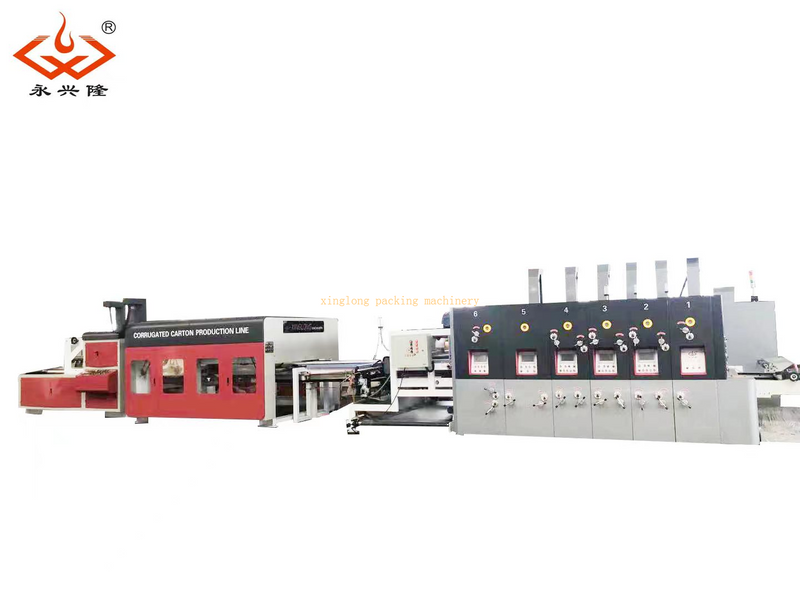

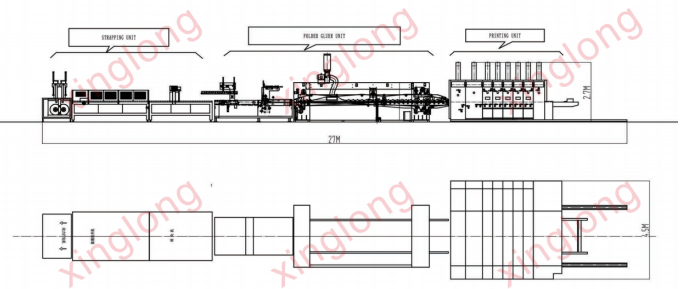

Machine drawing

MLDX 印刷联动线1

Main Technology parameters

Model MLDX922
Machine inside width(mm) 2400 2600
Max feeding paper size(mm) 900*2200 1200*2400
Max effective printing size(mm) 900*2000 1200*2200
Min coverage size(mm) 350*700mm(full plate printing) 350*700mm(full plate printing)
Max die cutting space(mm) 900*2150 1200*2350
Design speed(pcs/min) 150pcs/min 150pcs/min
Working speed(pcs/min) 120pcs/min 100pcs/min
Standard Thickness of printing plate 3-6mm 3-6mm
Printing precision
±0.5mm ±0.5mm
Thickness of cardboard 2-9mm 2-9mm
Wall thickness 40mm 40mm
Main motor power About 30kw About 30kw

Performance and Characterisics

  1. The machine can finish mult processes one time such as:printing,slotting,creasing,trimming,corner cutting,punching,die cutting,gluing and strapping.

  2. Machine is designed according to high request and reliable fuction,humanization operation,it can setting,reision,implement,changing and memories in short time,and display data accurately.

  3. All of drive rollera are made of high quality steel with temper and quenching treatment,not change shape when high speed running,

    hard chrome plated the surface with grinded.

  4. Main drive gears adopt high quality steel with heat treatment with grinded,adopt cross slip system connect each gear,keep gear fix position,ensure transmission precision.

  5. The main drive roller adopt keyless connect,decrease the connection gap,ensure printing precision.

  6. The machine adopts sealed spray lubrication for gear system,engineer oil automatic balance device;keep the oil level equal in each unit.

  7. Motorized digital phase adjustment with "automatic zero return"and "memories"fuction(options:PLC control with touch screen)

  8. Lead edge feeder with vacuum suction,easy operate,high precision.

  9. All units move automatic orderly,locked by pneumatic,alarm continually

  10. Main motor is VFD,working stability,low power consumption.

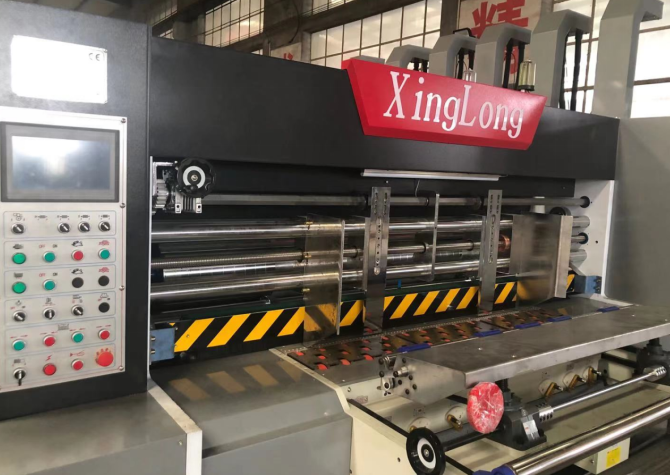

Feed unit

MLDX 印刷联动线送纸部

Printing unit

MLDX 印刷联动线印刷部

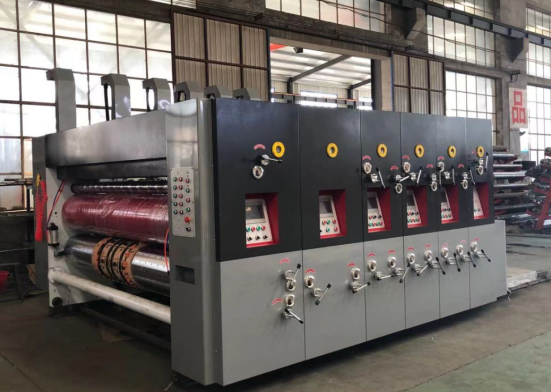

Rotary die cutting unit

MLDX 印刷联动线模切部

Printing die cutting unit

MLDX 印刷联动线印刷模切部

Waste cleaning unit

MLDX 印刷联动线清废部

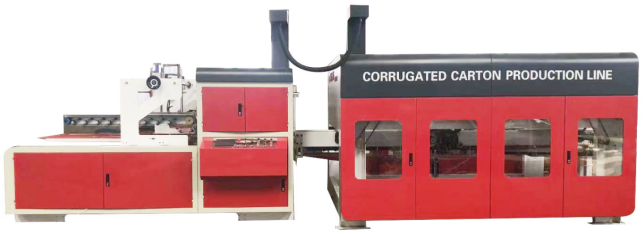

Folder gluer unit

MLDX 印刷联动线粘箱部

MLDX 印刷联动线2

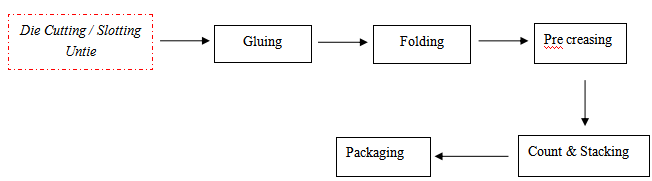

1.Equipment process

MLDX 印刷联动线设备工艺流程


MLDX 印刷联动线打包部
