MLDX 5 colors printing slotting die cutting folding gluing inline

Availability:
Quantity:
  • xinglong

  • Automatic

  • China,Hebei

  • Lead edge feeding

  • New

  • Ordinary Product

  • 1 Year

  • Provided

  • Electric

  • Provided

  • Easy to Operate

公司介绍(红黑)

MLDX 5 color Printing slotting Die-cutting folding gluing inline

mldx联动线

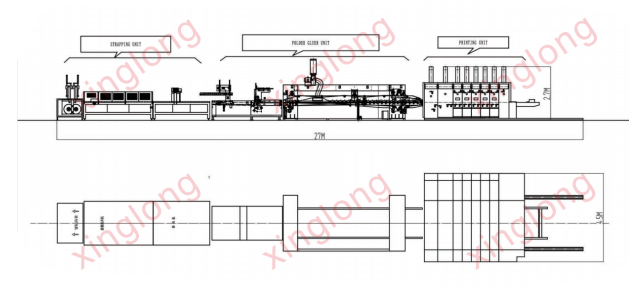

Machine drawing

mldx联动线1

Main Technology Parameters


Model

MLDX922

MLDX1224

Machine inside width (mm)

2400

2600

Max feeding paper size(mm)

900*2200

1200*2400

Max effective printing size(mm)

900*2000

1200*2200

Min coverage size(mm)

350*700mm(full plate printing)

350*700mm(full plate printing)

Max die cutting space(mm)

900*2150

1200*2350

Design speed (pcs/min)

150pcs/min

150pcs/min

Working speed (pcs/min)

120pcs/min

100pcs/min

Standard Thickness of printing plate

3-6mm

3-6mm

Printing precision

±0.5mm

±0.5mm

Thickness of cardboard

2-9mm

2-9mm

Wall thickness

40mm

40mm

Main motor power

About 30kw

About 30kw

Performance and Characteristics:

  • The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and strapping.

  • Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

  • All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.

  • Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

  • The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

  • The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

  • Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)

  • Lead edge feeder with vacuum sucntion, easy operate, high precision.

  • All units move automatic orderly, locked by pneumatic, alarm continually

  • Main motor is VFD, working stability, low power consumption.


 Feeding unit

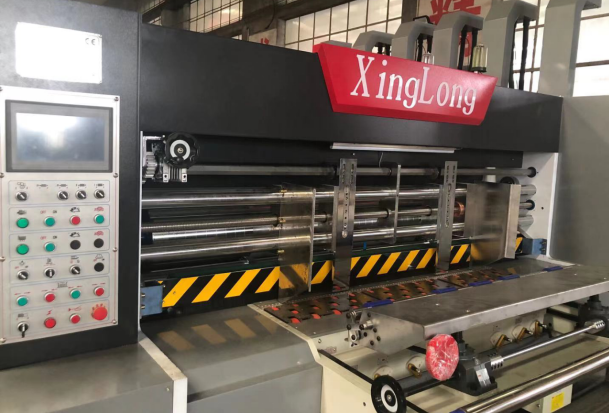

mldx联动线2

  • Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.

  • Main motor with start protecting device, machine cannot run when machine units aren’t lock.

  • Continuous or skip feeding available

  • Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet

  • Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.

  • Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size

  • Machine units move by motorized and move with alarm belling to make sure safety.

  • Electronic count can set the production volume, reach the quantitative automatic alarm

 Printing unit

mldx联动线3

  • Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise.

  • Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part.

  • Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop.

  • Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.

  • Pneumatic lift anilox roller for ink, motorized ink will no dry.

  • Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.

  • Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order).

  • Double diagram pump ink, recycle automatically, clean with water.

  • Memory function, after clean plate it back to original position.

  • Printing precision: +-0.5mm

  • Printing cylinder horizontal move by motorized.

 Rotary die cutting unit

mldx联动线4

  • Rubber roller: made of good quality steel, be grinded with chrome plated.

  • Do balance treatment, improve machine running steady.

  • Rubber cylinder is separate with die cylinder by air cylinder when no cutting, reduce no-load and prolong blanket use-life.

  • Die roller lift-down automatic by pneumatic control( feed sheets roller go up, stop feeding roller down, make sure correct cutting for every sheets).

  • Rubber roller move 40mm in left and right, wearable average prolong use-life.

  • Rubber roller rotates follow die roller by speed compensation device whatever how rubber diameter change, make sure rubber speed same as wooden die, keep cut box is consist with wooden die.

  • Planetary gear structure used for phase adjustment.

  • Phase adjustment by PLC in 360degree with digital input( can be done when run, stop or clockwise or anticlockwise).

  • Machine have repair roller to grind blanket, so it can use many times.

  • Slotting knife device(no need to make wooden die when produce normal carton,save cost easy to adjust)

 Printing die cutting unit

mldx联动线5

 Waste cleaning unit

mldx联动线6

 Folder gluer unit

mldx联动线7

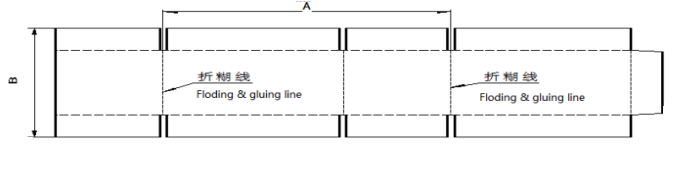

mldx联动线8

The advantages of simple structure, high folding precision and beautiful folding.Its electrical, bearing, belt chain and other important components are used in Europe, America, Japan, Taiwan and other well-known enterprises products;Machine rail smooth, low noise, high efficiency, simple operation, good safety and reliability, the first choice for enterprises to get rich products.The technological process and production parameters of this product are introduced as follows:

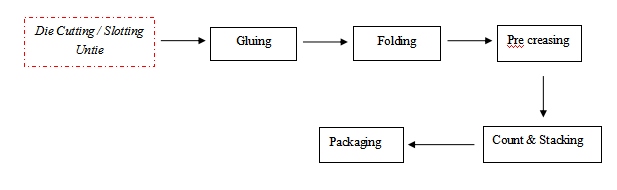

 Equipment process

mldx联动线9

 Strapping unit

mldx联动线
