MLDX 5 color Printing slotting Die-cutting folding gluing inline

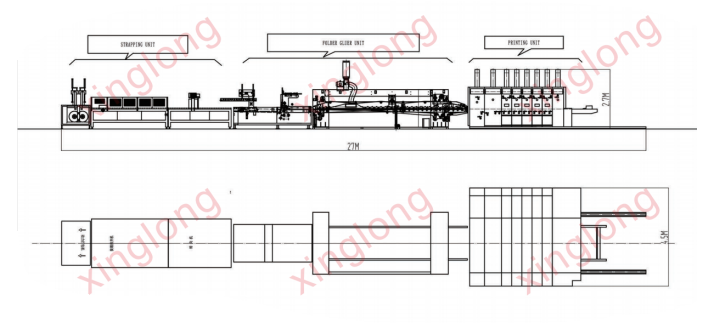

Machine drawing
Main Technology parameters
Model | MLDX922 | MLDX1224 |
Machine inside width (mm) | 2400 | 2600 |
Max feeding paper size(mm) | 900*2200 | 1200*2400 |
Max effective printing size(mm) | 900*2000 | 1200*2200 |
Min coverage size(mm) | 350*700mm(full plate printing) | 350*700mm(full plate printing) |
Max die cutting space(mm) | 900*2150 | 1200*2350 |
Design speed (pcs/min) | 150pcs/min | 150pcs/min |
Working speed (pcs/min) | 120pcs/min | 100pcs/min |
Standard Thickness of printing plate | 3-6mm | 3-6mm |
Printing precision | ±0.5mm | ±0.5mm |
Thickness of cardboard | 2-9mm | 2-9mm |
Wall thickness | 40mm | 40mm |
Main motor power | About 30kw | About 30kw |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and strapping.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen).
Lead edge feeder with vacuum sucntion, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually.
Main motor is VFD, working stability, low power consumption.
Feeding unit
Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.
Main motor with start protecting device, machine cannot run when machine units aren’t lock.
Continuous or skip feeding available.
Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet
Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.
Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size
Machine units move by motorized and move with alarm belling to make sure safety.
Electronic count can set the production volume, reach the quantitative automatic alarm.

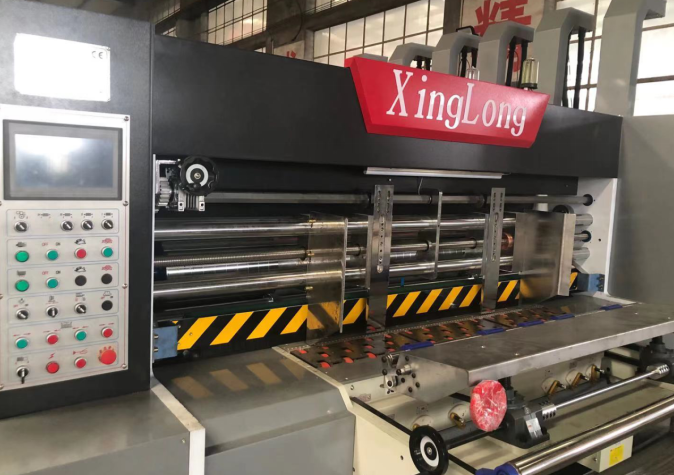

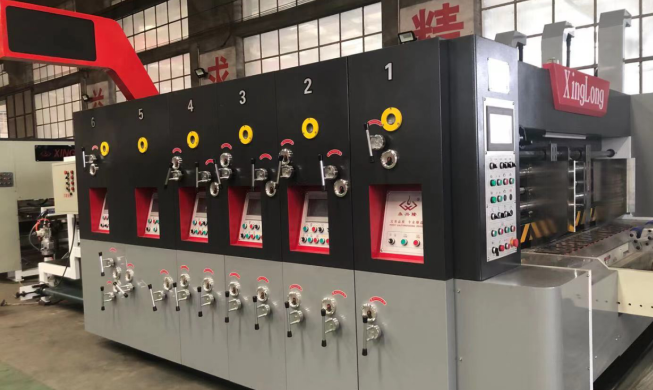

Printing unit
Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise
Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part
Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop
Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
Pneumatic lift anilox roller for ink, motorized ink will no dry.
Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
Double diagram pump ink, recycle automatically, clean with water
Memory function, after clean plate it back to original position
Printing precision: +-0.5mm
Printing cylinder horizontal move by motorized
Rotary die cutting unit
Rubber roller: made of good quality steel, be grinded with chrome plated.
Do balance treatment, improve machine running steady
Rubber cylinder is separate with die cylinder by air cylinder when no cutting, reduce no-load and prolong blanket use-life.
Die roller lift-down automatic by pneumatic control( feed sheets roller go up, stop feeding roller down, make sure correct cutting for every sheets)
Rubber roller move 40mm in left and right, wearable average prolong use-life
Rubber roller rotates follow die roller by speed compensation device whatever how rubber diameter change, make sure rubber speed same as wooden die, keep cut box is consist with wooden die.
Planetary gear structure used for phase adjustment.
Phase adjustment by PLC in 360degree with digital input( can be done when run, stop or clockwise or anticlockwise)
Machine have repair roller to grind blanket, so it can use many times.
Slotting knife device（no need to make wooden die when produce normal carton,save cost easy to adjust)

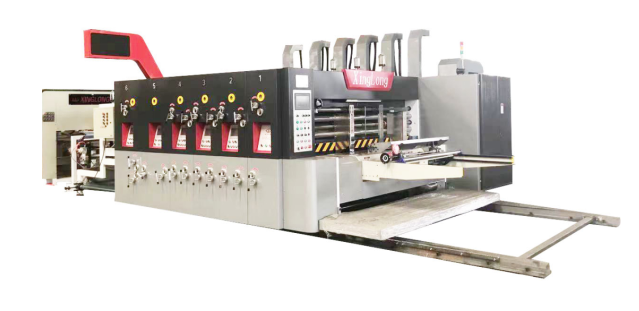

Printing die cutting unit

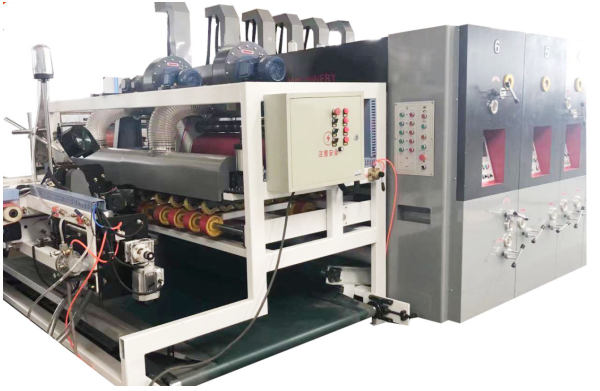

Waste cleaning unit

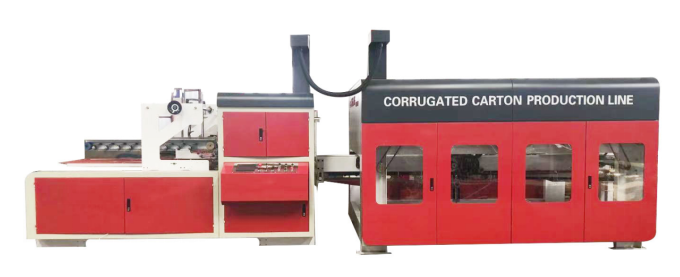

Folder gluer unit
the advantages of simple structure, high folding precision and beautiful folding.Its electrical, bearing, belt chain and other important components are used in Europe, America, Japan, Taiwan and other well-known enterprises products;Machine rail smooth, low noise, high efficiency, simple operation, good safety and reliability, the first choice for enterprises to get rich products.The technological process and production parameters of this product are introduced as follows:

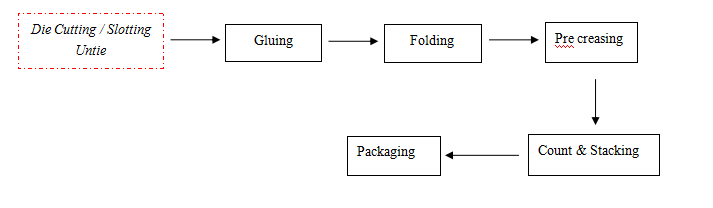

1. Equipment process

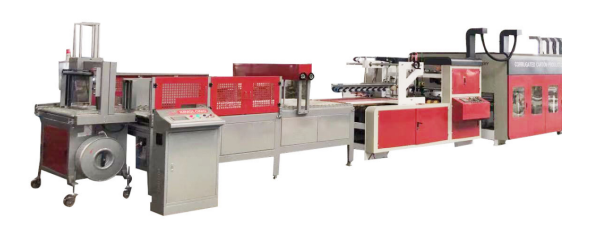

strapping unit
MLDX 5 color Printing slotting Die-cutting folding gluing inline
Machine drawing
Main Technology parameters
Model | MLDX922 | MLDX1224 |
Machine inside width (mm) | 2400 | 2600 |
Max feeding paper size(mm) | 900*2200 | 1200*2400 |
Max effective printing size(mm) | 900*2000 | 1200*2200 |
Min coverage size(mm) | 350*700mm(full plate printing) | 350*700mm(full plate printing) |
Max die cutting space(mm) | 900*2150 | 1200*2350 |
Design speed (pcs/min) | 150pcs/min | 150pcs/min |
Working speed (pcs/min) | 120pcs/min | 100pcs/min |
Standard Thickness of printing plate | 3-6mm | 3-6mm |
Printing precision | ±0.5mm | ±0.5mm |
Thickness of cardboard | 2-9mm | 2-9mm |
Wall thickness | 40mm | 40mm |
Main motor power | About 30kw | About 30kw |
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing and strapping.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen).
Lead edge feeder with vacuum sucntion, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually.
Main motor is VFD, working stability, low power consumption.
Feeding unit
Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.
Main motor with start protecting device, machine cannot run when machine units aren’t lock.
Continuous or skip feeding available.
Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet
Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.
Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size
Machine units move by motorized and move with alarm belling to make sure safety.
Electronic count can set the production volume, reach the quantitative automatic alarm.
Printing unit
Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise
Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part
Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop
Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.
Pneumatic lift anilox roller for ink, motorized ink will no dry.
Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.
Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)
Double diagram pump ink, recycle automatically, clean with water
Memory function, after clean plate it back to original position
Printing precision: +-0.5mm
Printing cylinder horizontal move by motorized
Rotary die cutting unit
Rubber roller: made of good quality steel, be grinded with chrome plated.
Do balance treatment, improve machine running steady
Rubber cylinder is separate with die cylinder by air cylinder when no cutting, reduce no-load and prolong blanket use-life.
Die roller lift-down automatic by pneumatic control( feed sheets roller go up, stop feeding roller down, make sure correct cutting for every sheets)
Rubber roller move 40mm in left and right, wearable average prolong use-life
Rubber roller rotates follow die roller by speed compensation device whatever how rubber diameter change, make sure rubber speed same as wooden die, keep cut box is consist with wooden die.
Planetary gear structure used for phase adjustment.
Phase adjustment by PLC in 360degree with digital input( can be done when run, stop or clockwise or anticlockwise)
Machine have repair roller to grind blanket, so it can use many times.
Slotting knife device（no need to make wooden die when produce normal carton,save cost easy to adjust)
Printing die cutting unit
Waste cleaning unit
Folder gluer unit
the advantages of simple structure, high folding precision and beautiful folding.Its electrical, bearing, belt chain and other important components are used in Europe, America, Japan, Taiwan and other well-known enterprises products;Machine rail smooth, low noise, high efficiency, simple operation, good safety and reliability, the first choice for enterprises to get rich products.The technological process and production parameters of this product are introduced as follows:
1. Equipment process
strapping unit
