| Quantity: | |
|---|---|
Other
1 YEAR, One Year
Manufacturing Plant, Food & Beverage Factory, Food Shop, Printing Shops, Food & Beverage Shops
Video technical support, Online support, Spare parts, Field maintenance and repair service
None
None
New
Apparel, Beverage, Medical, Food, Commodity, Chemical, Machinery & Hardware, Textiles
Cartons, Film
Paper, Plastic, Wood
Semi-Automatic
Mechanical
380V/50HZ
3-5.5kw
Hebei, China
Xinglong
About 3 T
Customized
CE
Field installation, commissioning and training, Engineers available to service machinery overseas
Low Noise Level
semi-automatic carton die cutting making machine
2000
410
1900*1350mm
320*500mm
40-60pcs/min
3.0 kw
Slitting, creasing, corner cutting and hit special hole
Function and uses:
The machine adopts chain feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, long service life and low cost.
Main characteristics:
- The drum made of high quality steel tube, thickness30mm, do balance treatment, plated chrome.
- Full machine gear made of 45# steel have been quenched treatment, adopts lock-alx keyless and crosshead system connect with shafts finish no gap adjustment.
- Driving part uses pull pump to lubricating(motorized phase adjustment type used spray lubraction), oil box made of thick iron plate to avoid oil leakage.
- Phase adjustment by manual operate with micro-adjustment (or motorized adjust in 360 degree).

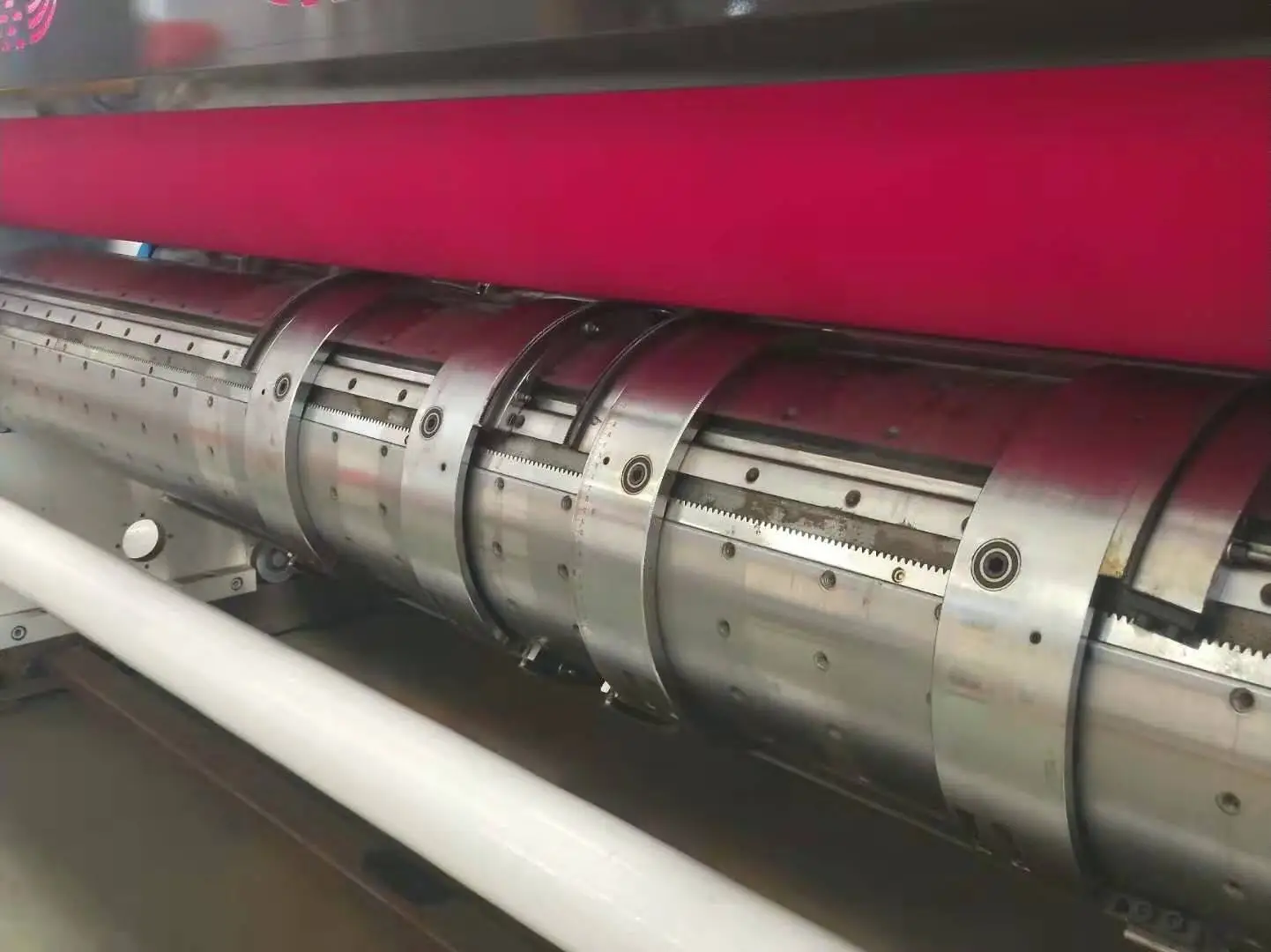

- Die roller(bottom roller) lift-down adopts pneumatic control, manual or automatic operation
- Rubber roller(top roller be wrapped anvil cover from “Maxdura” brand from Taiwan (or CUE, DAY option), long use life.
- Rubber roller(top roller) can move automatically, move range ±40mm
- Rubber roller (top roller) fix overrunning clutch to compensate line speed automatically, and avoid one position cutting.
- Equipped with anvil cover repair device, prolong use life.
Main Technology Parameters:
| Model | Roller diameter | Max. sheet size | Min. sheet size | Speed | Motor |
| MQJ-1500 | φ410 | 1600*1350mm | 320*500mm | 40-60pcs/min | 3.0kw |
| MQJ-1750 | 1850*1350mm | 320*500mm | 40-60pcs/min | 3.0kw | |
| MQJ-2000 | 2100*1350mm | 320*500mm | 40-60pcs/min | 3.0kw | |
| MQJ-2250 | 2350*1350mm | 320*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2500 | 2600*1350mm | 320*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-1500 | φ487 | 1600*1500mm | 450*500mm | 40-60pcs/min | 5.5kw |
| MQJ-1750 | 1850*1500mm | 450*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2000 | 2100*1500mm | 450*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2250 | 2350*1500mm | 450*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2500 | 2600*1500mm | 450*500mm | 40-60pcs/min | 5.5kw |
Option: die cutting with slotting knife attachment
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
5. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Function and uses:
The machine adopts chain feeding system and double roller rotary type. It can perform all process of slitting, creasing, corner cutting and hit special hole at one time. It has advantage of high precision, easy to operate, long service life and low cost.
Main characteristics:
- The drum made of high quality steel tube, thickness30mm, do balance treatment, plated chrome.
- Full machine gear made of 45# steel have been quenched treatment, adopts lock-alx keyless and crosshead system connect with shafts finish no gap adjustment.
- Driving part uses pull pump to lubricating(motorized phase adjustment type used spray lubraction), oil box made of thick iron plate to avoid oil leakage.
- Phase adjustment by manual operate with micro-adjustment (or motorized adjust in 360 degree).
- Die roller(bottom roller) lift-down adopts pneumatic control, manual or automatic operation
- Rubber roller(top roller be wrapped anvil cover from “Maxdura” brand from Taiwan (or CUE, DAY option), long use life.
- Rubber roller(top roller) can move automatically, move range ±40mm
- Rubber roller (top roller) fix overrunning clutch to compensate line speed automatically, and avoid one position cutting.
- Equipped with anvil cover repair device, prolong use life.
Main Technology Parameters:
| Model | Roller diameter | Max. sheet size | Min. sheet size | Speed | Motor |
| MQJ-1500 | φ410 | 1600*1350mm | 320*500mm | 40-60pcs/min | 3.0kw |
| MQJ-1750 | 1850*1350mm | 320*500mm | 40-60pcs/min | 3.0kw | |
| MQJ-2000 | 2100*1350mm | 320*500mm | 40-60pcs/min | 3.0kw | |
| MQJ-2250 | 2350*1350mm | 320*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2500 | 2600*1350mm | 320*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-1500 | φ487 | 1600*1500mm | 450*500mm | 40-60pcs/min | 5.5kw |
| MQJ-1750 | 1850*1500mm | 450*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2000 | 2100*1500mm | 450*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2250 | 2350*1500mm | 450*500mm | 40-60pcs/min | 5.5kw | |
| MQJ-2500 | 2600*1500mm | 450*500mm | 40-60pcs/min | 5.5kw |
Option: die cutting with slotting knife attachment
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang country, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
5. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
