| Quantity: | |
|---|---|
Inkjet Printer
New
Cardboard printer
Hebei, China
XINGLONG
XL-semi auto printer
Paper Printer, Cardboard printer
Semi-Automatic
Multicolor
380V 50HZ
7KW
3000*800*1800mm
About 3000kgs
ISO9001
Low cost printing machine for corrugated carton
1400*2200mm
1400*2000mm
350*500mm
6mm
80pcs/min
40-60pcs/min
+/-0.5mm
cardboard printer slotter
12 Months
Engineers available to service machinery overseas

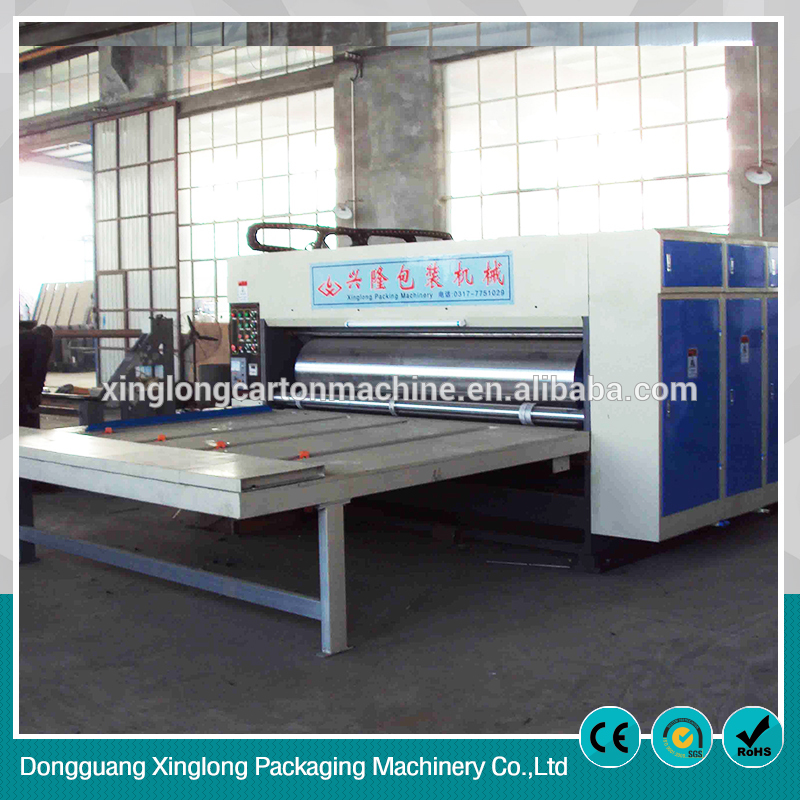

Low cost printing machine for corrugated carton
Description:
1. Chain type hand move feeding cardboard
2. Adopt 360 degree electric ensure and adjust position ,while working or stop can be adjust quickly and accurately
3. When machine stopped working ink roller can automatic separate with printing roller facer in order to protect it ,
4. Ink roller have the separately turn device to prevent ink dried when machine stopped working
5. Adopt pneumatic locking ,electric separation
6. Ink supply by pneumatic diaphragm pump
7. Main transmission gear made by 45 steel after high frequency quench
8. Transmission part adopt sprinkle lubricating system ,ensure the machine precise and long use time .
Technological parameter:
Model | BYKM 480-2300 | BYKM 480-2600 | BYKM 480-3000 |
Max.feed sheet size | 1400*2200mm | 1400*2500mm | 1400*2900mm |
Effective printing area | 1400*2000mm | 1400*2300mm | 1400*2700mm |
Min.feed sheet size | 350*500mm | ||
Standard thickness of printing plate | 6mm | ||
Design speed | 80 pcs/min | ||
Working speed | 40-60 pcs/min | ||
Printing precision | +/-0.5mm | ||
Thickness of cardboard | 1.2-9mm | ||
If you are also interested in the following product, please click the link
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
