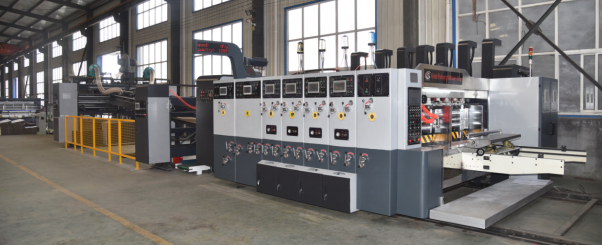

LDX Series Printing slotting die cutting folding gluing strapping machine inline

LDX serious Printing slotting die cutting folding gluing strapping inline

MACHINE DRAWINGS

                    Main Technology Parameters

Performance and Characteristics

1. The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, gluing.

2. Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

3. All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.

4. Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

5. The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

6. The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

7. Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC control with touch screen

8. Lead edge feeder with vacuum sucntion, easy operate, high precision.

9. All units move automatic orderly, locked by pneumatic, alarm continually

10. Main motor is VFD, working stability, low power consumption.

Details of each unit

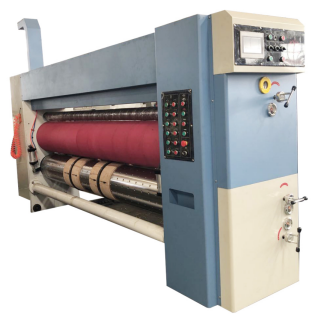

• Light-pressure lead edge feeder unit

1. Light pressure Lead edge feeder with vacuum suction, wind is adjustable depend on sheet, make sure feed sheet smoothly.

2. Main motor with start protecting device, machine cannot run when machine units aren’t lock.

3. Continuous or skip feeding available

4. Double feed rollers wrapped with rubber, with groove prevent overpressure, reduce pressed sheet

5. Left-right baffle adjusted by computer with automatic flap, back baffle adjusted by motorized, front baffle manual synchronous adjust.

6. Dust clearance bush and fan to clean dust on board. Air outlet can be adjusted as per sheet size

7. Machine units move by motorized and move with alarm belling to make sure safety.

8. Electronic count can set the production quantity, and reach the quantitative automatic alarm.

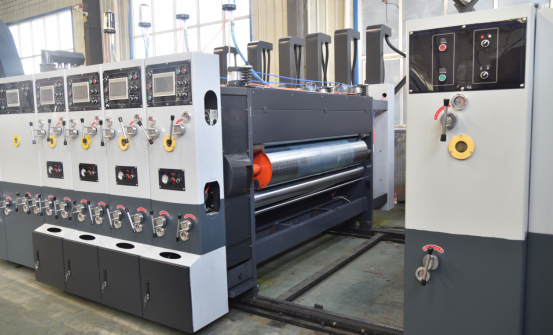

• Printing unit


1. Fast change printing plate, with footstep to control cylinder rotate clockwise or anticlockwise.

2. Feed roller, press roller, rubber roller, anilox roller gap adjust with self-lock part.

3. Printing phase adjusted by PLC in 360degree with digital input, do when machine running or stop.

4. Pneumatic brake device to keep printing register fixed, when units separate or clean, brake limit gear rotate, keep original gear position.

5. Pneumatic lift anilox roller for ink, motorized ink will no dry.

6. Printing cylinder made of seamless steel pipe, be grinded with chrome plated, do balance treatment, running smooth and steady.

7. Lift-down design( when feed sheets anilox roller down in order, stop sheet lift rollers in order)

8. Double diagram pump ink, recycle automatically, clean with water

9. Memory function, after clean plate it back to original position

10. Printing precision: +-0.5mm

11. Printing cylinder horizontal move by motorized.

12. The gap between the anilox roller and the plate wheel is adjusted slightly.

13. Closed cover and recovery ink tank device, easy to clean and leak-proof design.

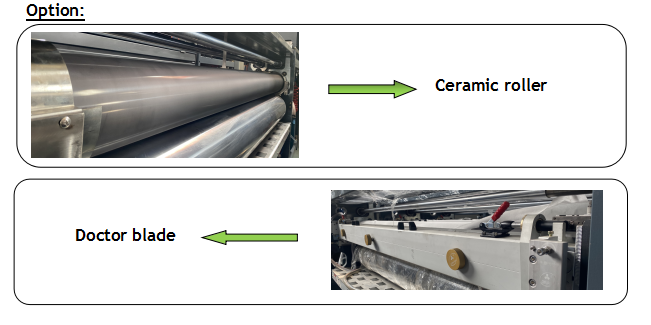

14. Option: Ceramic roller+doctor blade，can make machine high printing quality in high speed.

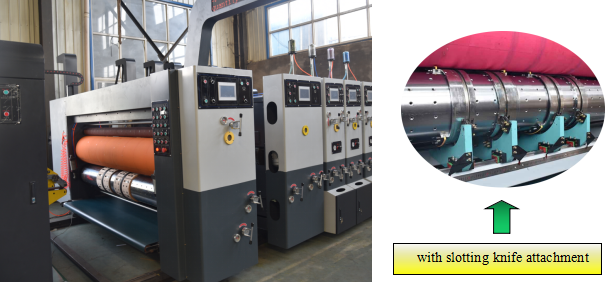

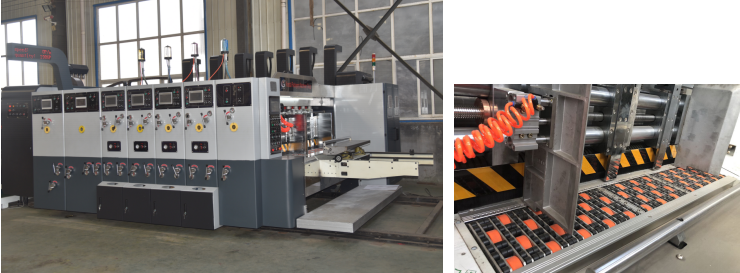

• Slotting unit

1. Box height adjusted by motorized.

2. Slotting phase adjusted by PLC in 360 degree with digital input, do when machine running or stop.

3. Slotting die and crease die move together by motorized

4. Crease gap and knife gap adjusted by self-lock mechanism

5. Collison protection on slotting knife for height adjust and move, don’t damage machine

6. Collison protection for slotting die horizontal move (electronical)

7. Adopt 5 slotting knife ，it can Achieve trimming while slotting,Slotting knife width 7mm, good quality material, with hot-treatment and grinded, teeth knife, double-piece trim knife, sharpen and precision.

• Die cutting unit

•  Option :Vibration unit


1.The unit is for removing the waste paper of the carton from die cutting unit

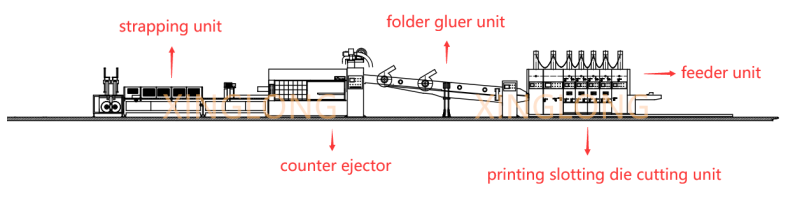

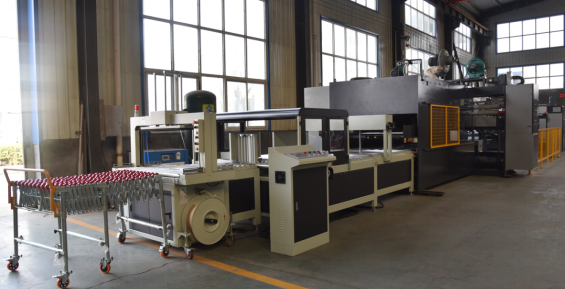

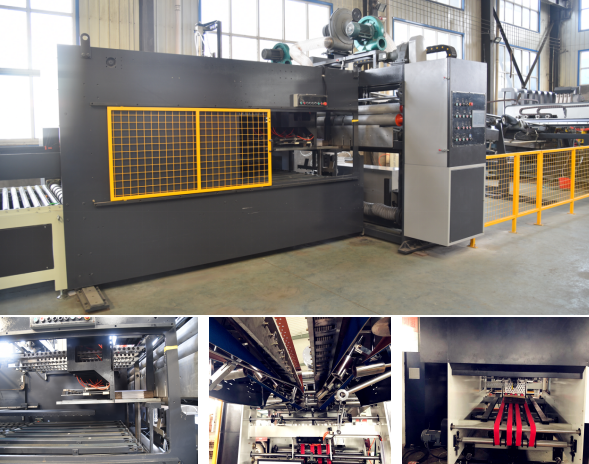

• Lnline automatic folder gluer


                                                Auto Strapping unit

Technical Parameter
