Kraft paper electric mill roll stand

  • Other

  • New

  • Commodity

  • Case, Film

  • Plastic, Wood

  • Automatic

  • Electric

  • Customized

  • main motor 4 kw

  • Hebei, China

  • xinglong

  • 2200mm

  • about 1.5tons

  • about 3000*3200*2000mm

  • CE Certification

  • customized

  • carton machine

  • Engineers available to service machinery overseas

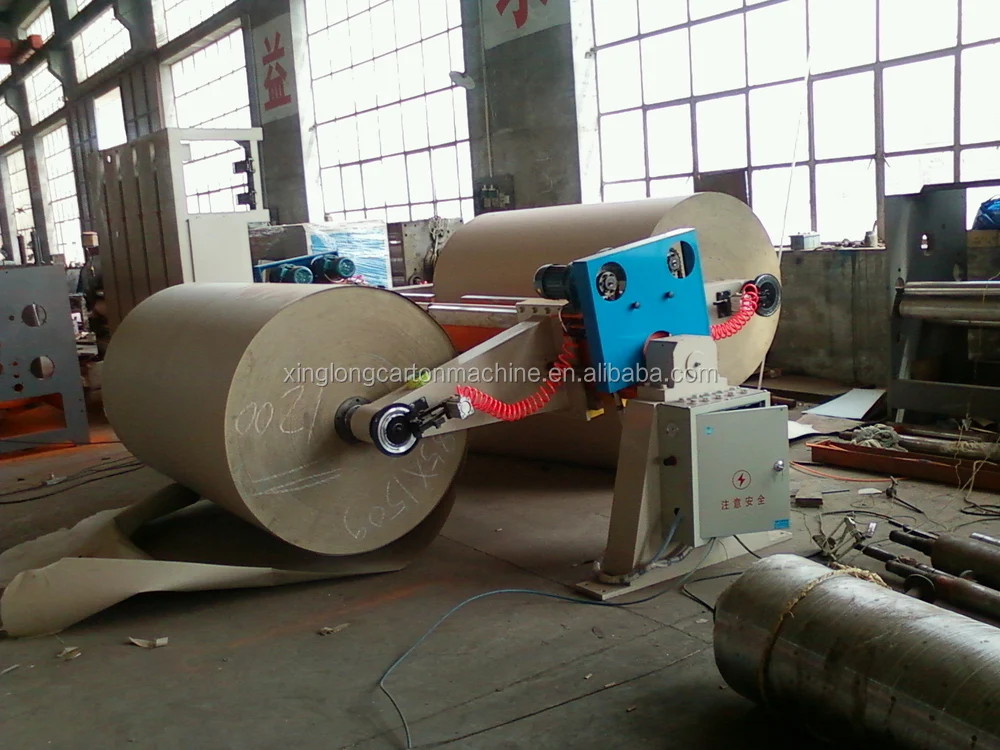

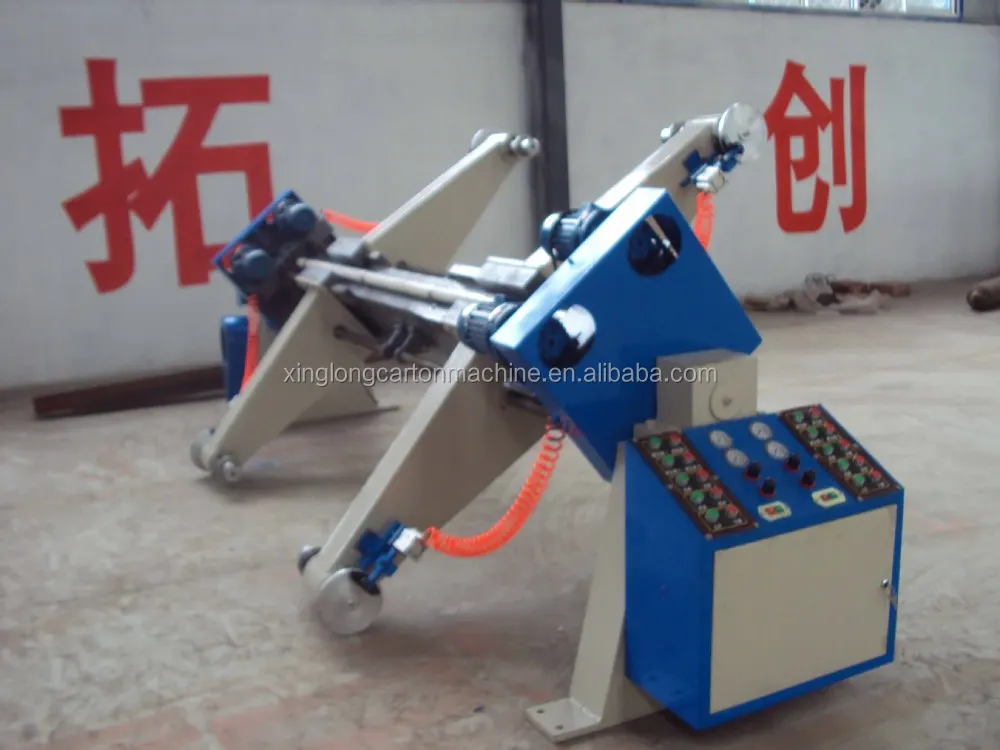

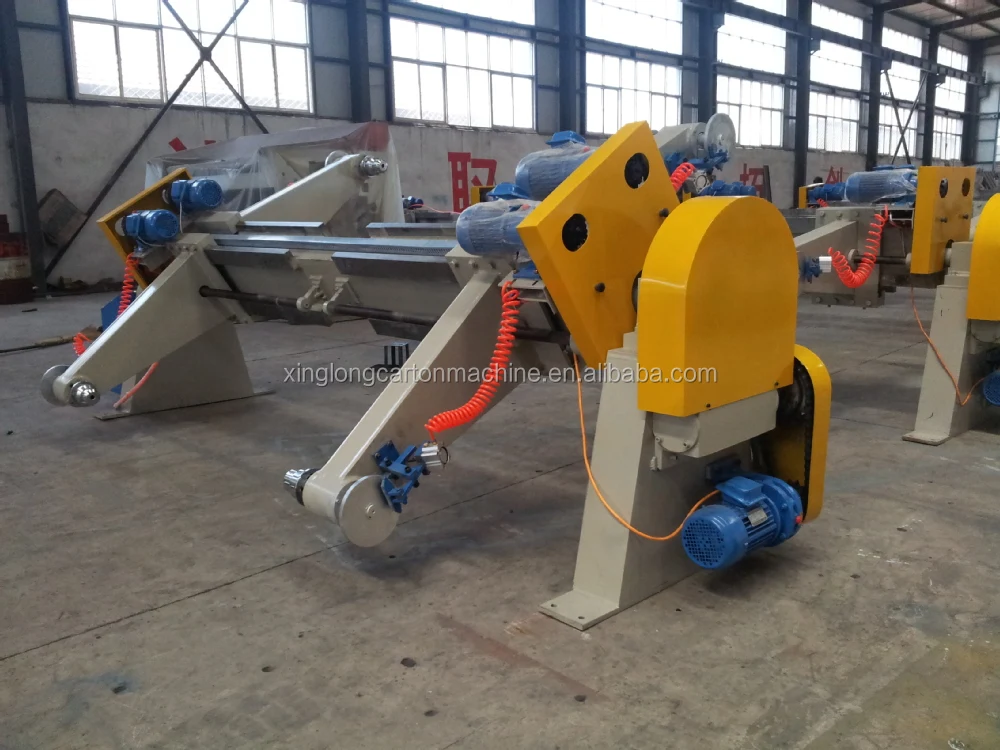

shaftless mill roll stand

1, symmetrical structure can install two rolls of paper at the same time and continually change paper, paper roller clamp, lift-lower, loosen, movement, contraposition, translation etc.

2, equipment was made of HT200-wide casting.

3,expiry working width 1800mm

4, max. paper roll size diameter 1500*1800mm

5, min. dimeter of roller paper 400mm

6, maximum loading of one side arm 1500-2000kg

7, each stand with two set track and trolley for carry paper.

8, pneumatic braking

9, electrical components are controlled centralized(domestic brank)

10, one set main motor power is 2kw, each arm power 1.5*4kw
