Kraft Paper Roll Hydraulic Shaftless Mill Roll Stand

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Availability:
Quantity:
  • Yrs-1600

  • Xinglong

  • 8441309000

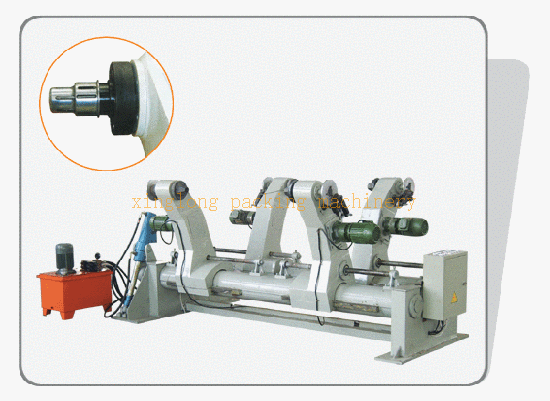

Kraft Paper Roll Hydraulic Shaftless Mill Roll Stand

Function and trait:
1.reel paper life-lower, clamp, loossen, movement, contraposition operated by motorize.
2.reel paper strain control by pneumatic brake.
3.Max diameter of reel paper:1500mm
4.Width of paper:600-1600mm, 600-1800mm, 600-2200mm.
5.Installment power: 4.5kw
6.The when clamp moving up and down selects cycloid motor, and the thick paper used for covering arm overload or touch the ground. It will be effective to safeguard th machinery not to be damaged.

Company Information
• Dongguang Xinglong Carton Machinery Co., Ltd is specialized in the production of various kinds of carton equipments of the well-know enterprise.
Factory for over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has been well received by customer.
We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment .products are distributed Russia ,the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and abroad.
Over the years the company take "the quality first" "integrity-based" corporate purpose always meet user're-equipments as our sole purpose, providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create packaging future.

•Our factory is a professional corrugated cardboard carton box making machines manufacturer for over 20 years.
•We can provide every customer superior quality products at competitive price.
•If you have any interests about the machine, please feel free to contact me.
























































FAQ:

Q:1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

Q:2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

Q:3. How does your factory do regarding quality controlling?

A:(1) All raw material we used are environmental-friendly.

(2) Skillful workers care every details in handling the producing and packing process.

(3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

Q:4.What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

Q:5.How about the after-sale service?

A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

(2) To solve the problems with videos/pictures.

(3) One year warranty for spare parts change.
