Intelligence High speed Flute Laminator Machine
Machine Introduction:
The main function of 1450 intelligent high-speed laminating machine is to make paper and cardboard fit together so as to increase the strength and thickness of material or special effect. Billboards, etc.
The equipment adopts the perfect combination of motion control system and servo correction and correction system, and controls the servo motor on both sides of the surface paper to do independent compensation by using the relative position of multi-group photoelectric induction base paper, so that the adjustment equipment can be completed automatically by inputting the size of the paper. Run and produce.
TECHNICAL PARAMETER:
Model | 1450G | 1650G |
Max. Sheet Size (W*L) | 1450mm*1200mm | 1650mm*1450mm |
Min. Sheet Size (W*L) | 400mm*400mm | 400mm*400mm |
Top paper thickness | 150~800g/m² | 150~800g/m² |
Bottom sheet thickness | Corrugated: 0.5-10mm(B,A,AB,E flute, etc.) Paper: > 350g | |
Laminating Accuracy | Corrugated:±1mm (Corrugated paper flat without hairy edge can reach ± 0.5mm) Paper:±0.5mm | |
Max. Speed | 12000p/h 9000m/h | 12000p/h 9000m/h |
Power | 22KW | 22KW |
Dimension L*W*H | 13.5m*2.4m*2.4m | 14.5m*2.6m*2.6m |
Height of Bottom Paper | 400mm | 400mm |
Height of Top Paper | 1800mm | 1800mm |
Machine weight | 6200KG | 7000KG |
●Paper mounting accuracy: the standard precision is ±1mm, at a speed less than 9000 sheets per hour, the accuracy can reach to ±0.5mm;
●Glue consumption: glue consumption is generally 25 to 30 grams per square meter, operator's operation technology and pit type of pit paper will also affect glue consumption.

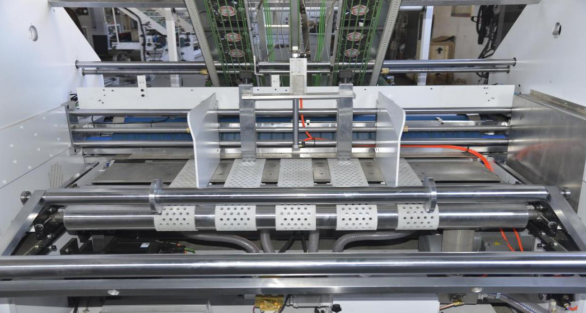

BOTTOM SHEET SYSTEM
●Import servo motor is used to drive the suction belt bottom paper conveying structure, matching the Japanese neon suction belt and SMC high frequency valve, so that the base paper (corrugated, paper jam) transmission distance is accurate and smooth.
●Pit paper bending, pneumatic press can press the front end of the pit paper, to ensure smooth paper.
TOP PAPER SYSTEM
●Adopt the structure of four-suction and four-feed paper, conjugate cam structure to feed paper, feed paper smoothly and reliably.
●Valve core easy to disassemble, easy to clean.

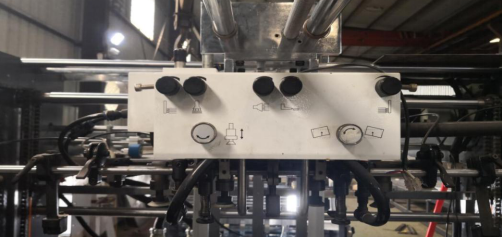

●The adjustment of paper deviation and split suction nozzle can be carried out under the condition of not stopping.
DRIVE SYSTEM

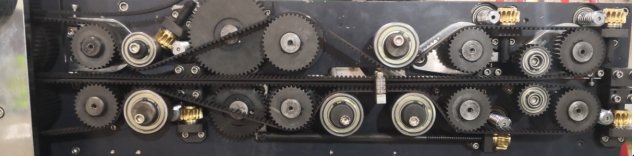

●Power transmission uniform distribution, the whole machine adopts imported double-sided tooth synchronous belt transmission, maintenance-free. Bottom noise. high efficiency
POSITIONING AND GLUING SYSTEM
●High-precision glue roller, fine grinding to ensure uniform gluing
●The specially machined copper block ensures that the high-speed rollers do not get rid of the rubber, overflow the rubber and adjust the backflow of the glue, ensure the cleaning of the equipment and the service life of the bearing.
●By using many groups of photoelectric detection and calculating the error value between the surface paper and the bottom paper, the servo motor on both sides of the surface paper is controlled to compensate the surface paper to the predetermined position for the same precision fitting.
ELECTRIC CONTROL SYSTEM
Intelligence High speed Flute Laminator Machine
Machine Introduction:
The main function of 1450 intelligent high-speed laminating machine is to make paper and cardboard fit together so as to increase the strength and thickness of material or special effect. Billboards, etc.
The equipment adopts the perfect combination of motion control system and servo correction and correction system, and controls the servo motor on both sides of the surface paper to do independent compensation by using the relative position of multi-group photoelectric induction base paper, so that the adjustment equipment can be completed automatically by inputting the size of the paper. Run and produce.
TECHNICAL PARAMETER:
Model | 1450G | 1650G |
Max. Sheet Size (W*L) | 1450mm*1200mm | 1650mm*1450mm |
Min. Sheet Size (W*L) | 400mm*400mm | 400mm*400mm |
Top paper thickness | 150~800g/m² | 150~800g/m² |
Bottom sheet thickness | Corrugated: 0.5-10mm(B,A,AB,E flute, etc.) Paper: > 350g | |
Laminating Accuracy | Corrugated:±1mm (Corrugated paper flat without hairy edge can reach ± 0.5mm) Paper:±0.5mm | |
Max. Speed | 12000p/h 9000m/h | 12000p/h 9000m/h |
Power | 22KW | 22KW |
Dimension L*W*H | 13.5m*2.4m*2.4m | 14.5m*2.6m*2.6m |
Height of Bottom Paper | 400mm | 400mm |
Height of Top Paper | 1800mm | 1800mm |
Machine weight | 6200KG | 7000KG |
●Paper mounting accuracy: the standard precision is ±1mm, at a speed less than 9000 sheets per hour, the accuracy can reach to ±0.5mm;
●Glue consumption: glue consumption is generally 25 to 30 grams per square meter, operator's operation technology and pit type of pit paper will also affect glue consumption.
BOTTOM SHEET SYSTEM
●Import servo motor is used to drive the suction belt bottom paper conveying structure, matching the Japanese neon suction belt and SMC high frequency valve, so that the base paper (corrugated, paper jam) transmission distance is accurate and smooth.
●Pit paper bending, pneumatic press can press the front end of the pit paper, to ensure smooth paper.
TOP PAPER SYSTEM
●Adopt the structure of four-suction and four-feed paper, conjugate cam structure to feed paper, feed paper smoothly and reliably.
●Valve core easy to disassemble, easy to clean.
●The adjustment of paper deviation and split suction nozzle can be carried out under the condition of not stopping.
DRIVE SYSTEM
●Power transmission uniform distribution, the whole machine adopts imported double-sided tooth synchronous belt transmission, maintenance-free. Bottom noise. high efficiency
POSITIONING AND GLUING SYSTEM
●High-precision glue roller, fine grinding to ensure uniform gluing
●The specially machined copper block ensures that the high-speed rollers do not get rid of the rubber, overflow the rubber and adjust the backflow of the glue, ensure the cleaning of the equipment and the service life of the bearing.
●By using many groups of photoelectric detection and calculating the error value between the surface paper and the bottom paper, the servo motor on both sides of the surface paper is controlled to compensate the surface paper to the predetermined position for the same precision fitting.

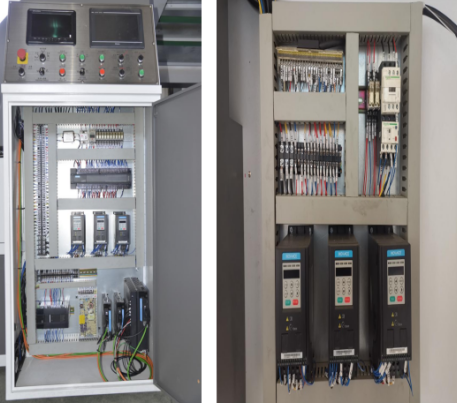

ELECTRIC CONTROL SYSTEM
