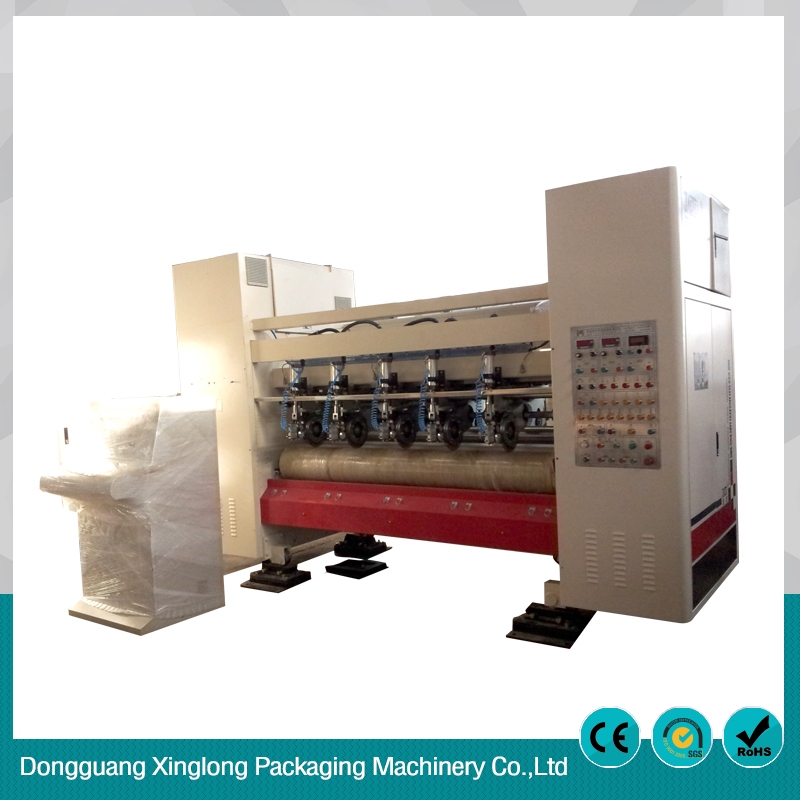

Industrial use cnc corrugated cardboard cutting machine

Availability:
Quantity:
  • New

  • Paper Cutting Machine

  • Yes

  • Hebei, China

  • XINGLONG

  • XL-slitter scorer

  • 380V 50Hz

  • 20.25KW

  • 4380*1350*2340mm

  • 6tons

  • CE Certificate

  • Industrial use cnc corrugated cardboard cutting machine

  • XL-cutting machine

  • Optional Color

  • 200m/min

  • 150pcs/min

  • 2550mm

  • 135mm

  • <±0.5mm

  • 4 blades 6 scorers or 5 blades 8 scorers

  • one year, 1 Year

  • Engineers available to service machinery overseas

Industrial use cnc corrugated cardboard cutting machine



Technical Parameter:

Type

NCFY1800

NCFY2000

NCFY2200

NCFY2500

Slitter

5-7 blades

5-7 blades

5-7 blades

5-7 blades

Scorer

8-12 scores

8-12 scores

8-12 scores

8-12 scores

Max. Slitting Width

1850mm

2050mm

2250mm

2550mm

Min. Slitting Width

135mm

135mm

135mm

135mm

Min. Scoring Width

Common

128mm

128mm

128mm

128m

0 Scoring

0mm

0m

0mm

0mm

Max. Line Speed

200m/min

200m/min

200m/min

200m/min

Machine size(mm)

Common

3680*1350*2340

3880*1350*2340

4080*1350*2340

4380*1350*2340

0 Scoring

3680*1680*2340

3880*1680*2340

4080*1680*2340

4380*1680*2340

General Motor Power

16.25KW

16.25KW

20.25KW

20.25KW


Features:

-High quality industry computer and PLC equipped composing the CNC system
-High quality linear guide and high precision ball screw system guarantee the slitting and scoring accuracy in 0.50mm.
-A memory of 999 orders, non-stop changeover or manual changeover can be realized.
-Automatic synchronize with the corrugator and can also get in line with manufacture management system.
-Quick changeover within 3 to 8 seconds.
