Hrbtmj-Hi Vacuum Servo Semi-Automatic Flute Laminator

The high speed, high precision flute laminator which developed by our Company is the most advanced in our country.
This machine operation is stable, joint accurate, easy operation, need not skilled
workers.
This machine is used for making Print paper and bottom paper(card paper, corrugated paper) match together accurately, then the paper level off, and high precision.
Availability:
Quantity:
  • HRBTMJ-1300HI

  • XINGLONG

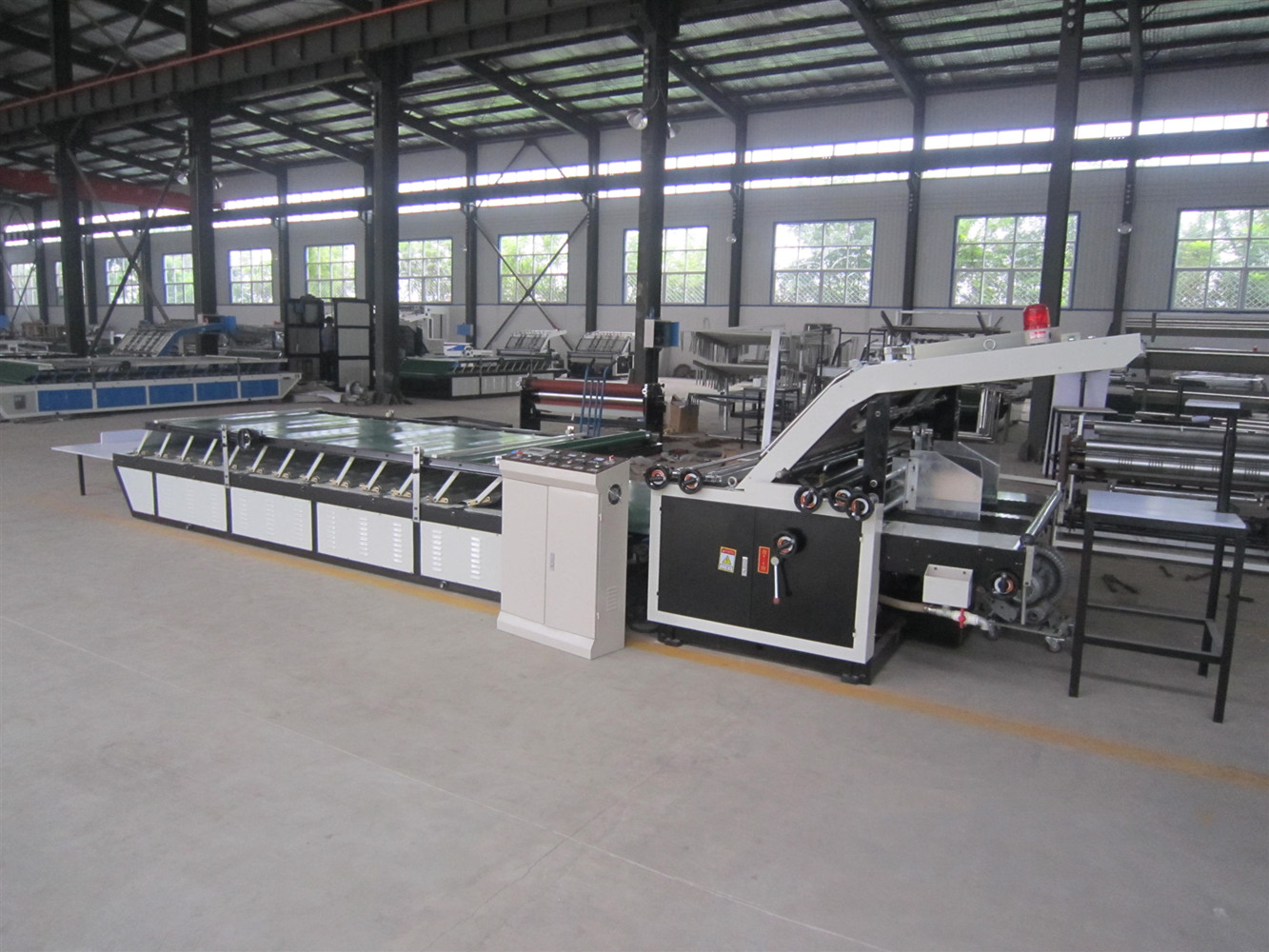

Hrbtmj-Hi Vacuum Servo Semi-Automatic Flute Laminator

H989fd40ab20c404794fcfa444ea58fe03

IMG_2899_副本

Major feature: The high speed, high precision flute laminator which developed by our Company is the most advanced in our country.

This machine operation is stable, joint accurate, easy operation, need not skilled workers.

This machine is used for making Print paper and bottom paper(card paper, corrugated paper)  match together accurately, then the paper level off, and high precision.


1,Independent research and development, we are the first manufacturer for servo
Semi-automatic flute laminator.

2,Adopt PLC control system, working is more precision and stable,improved the speed, circuit faults can automatically alarm.

3,This machine adopts Taiwan servo motor, instead of the break,clutch and electronic eye, realized PLC & servo single control independently.

4,Worker feeds the surface paper, demand for surface paper is low, all kinds of 175g-500g surface paper can work well.

5,Corrugated cardboards auto feeding, as fast as the surface papers' working.

6,The machine operation is stable, surface paper with corrugated paper joint very
Accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.

7,Automatic gluing, and the glue can be used circulatory, avoid glue waste.

8,Roller design scientifically, avoid glue fly out when the speed is high.

9,All electrical equipment import from Taiwan, ensure the machine running stable.

10,Pressure rollers adopt one side adjustment, convenient and fast.

11,Rocker controls wash roller's fluctuation, easy cleaning.

12, Counter designs scientifically, easy recording the amount you have been worked.


Technological parameter:
Model HRBTMJ-1300HI HRBTMJ-1500HI HRBTMJ-1600HI
Max size of cover face 1300mmX1100mm 1500mmX1250mm 1600mmX1250mm
Mix size of cover face 360mmX360mm 360mmX360mm 360mmX360mm
Economic speed

0-100 piece/min 0-100 piece/min 0-100 piece/min
Precision

±1 ±1 ±1
Power

6kw 6kw 6kw
Size

8.8m x 1.95m x 1.7m 8.8m x 2.15m x 1.7m 8.8m x 2.25m x 1.7m
Weight

About 3T About 3T About 3T

photobank (18)photobank (15)photobank (16)photobank (14)photobank (17)

FAQ:

Q:1.Are you a manufacturer, trading company or a third party?

A:We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.


Q:2. What is your minimum order quantity, can you send me samples?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.


Q:3. How does your factory do regarding quality controlling?

A:(1) All raw material we used are environmental-friendly.

    (2) Skillful workers care every details in handling the producing and packing process.

    (3) Quality control department are specially responsible for quality in each process.

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.


Q:4.What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.


Q:5.How about the after-sale service?

A:(1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

    (2) To solve the problems with videos/pictures.

    (3) One year warranty for spare parts change.


If you meet any other questions, please feel free to contact us.
