Gluing Machine
Manufacturing Plant
New
Food, Beverage, Commodity, Medical, Apparel
Cartons
Plastic, Paper
Semi-Automatic
Electric
3ph 380v 50hz
Hebei, China
XINGLONG
4500*2000*2000mm
1.5tons
CE
1 YEAR
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Easy to Operate
Hot-sale semi-automatic corrugated RSC carton box fold glue machine
Paper Cardboard Box Gluing Machine
Hand
2 Folds
Normal Cold Glue
counting automatically
2600
1500*2600mm
3 and 5ply corrugated carton
blue and white
Performance
This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers’ appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating, saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton..
1. Photoelectric control the feeding, reduce labor and improve work efficiency.
2.After gluing and the second pressing to the bonder is smooth and firm.
3.Equipped automatic correction device to make the carton size is correctly, and effectively avoid knife and fork phenomenon
4. Fan airing function
5.Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs automatically.
6 Press counting output signal, then work automatically, stacking and strapping conviently.
Technology Parameter
Max size( length+ width) | 2460 |
Min size( length+ width) | 340 |
Max size(width+ height) | 1515 |
Min size( width+ height) | 240 |
Height of feeding paper | 900 |
Motor power | 4 |
The length of Machine | 4500 |
The Width of Machine | 2100 |
The weight of Machine | 2000 |
Machine speed | 40 |
Dimension(mm) length×width×height | 4000×2000×1900 |

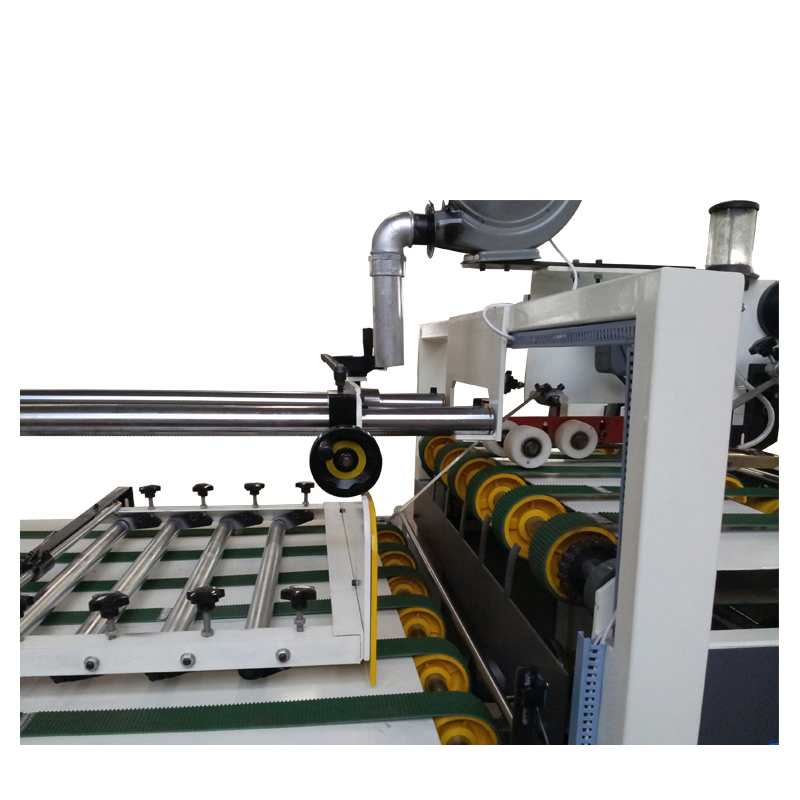

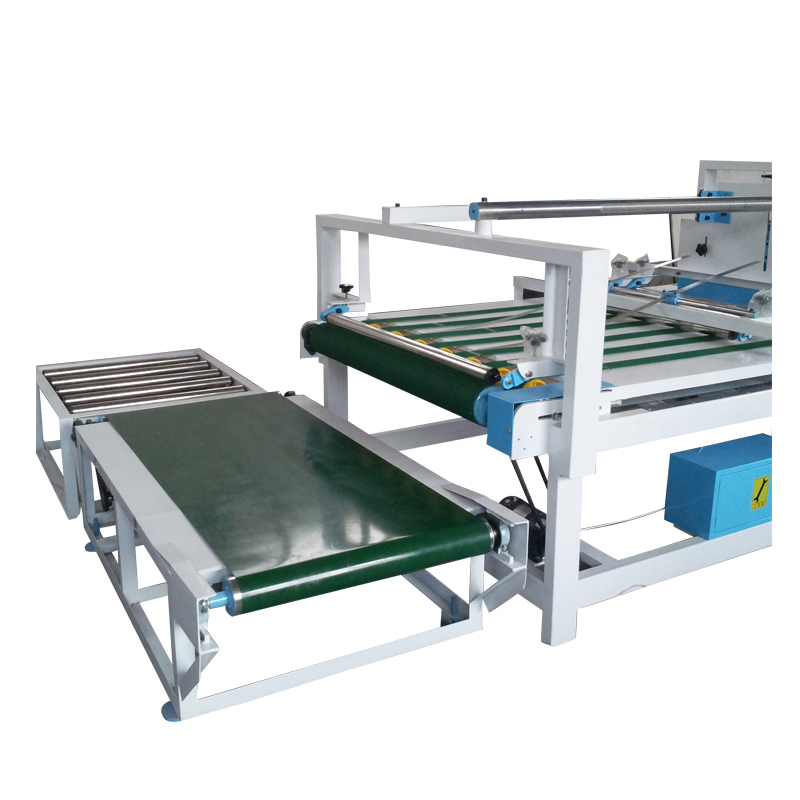

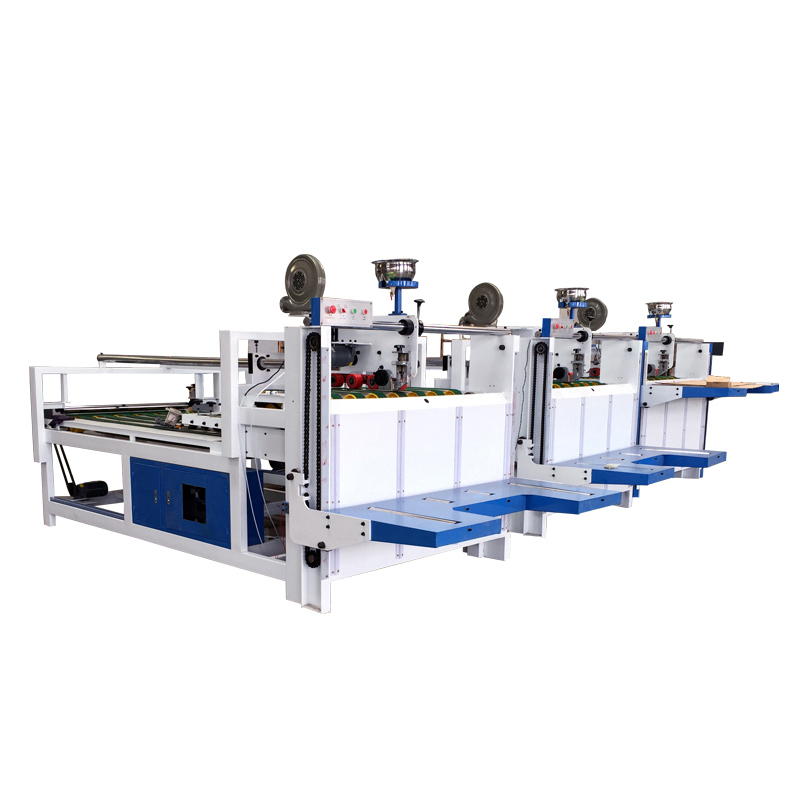

Details Image
Performance
This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers’ appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating, saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton..
1. Photoelectric control the feeding, reduce labor and improve work efficiency.
2.After gluing and the second pressing to the bonder is smooth and firm.
3.Equipped automatic correction device to make the carton size is correctly, and effectively avoid knife and fork phenomenon
4. Fan airing function
5.Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs automatically.
6 Press counting output signal, then work automatically, stacking and strapping conviently.
Technology Parameter
Max size( length+ width) | 2460 |
Min size( length+ width) | 340 |
Max size(width+ height) | 1515 |
Min size( width+ height) | 240 |
Height of feeding paper | 900 |
Motor power | 4 |
The length of Machine | 4500 |
The Width of Machine | 2100 |
The weight of Machine | 2000 |
Machine speed | 40 |
Dimension(mm) length×width×height | 4000×2000×1900 |
Details Image
