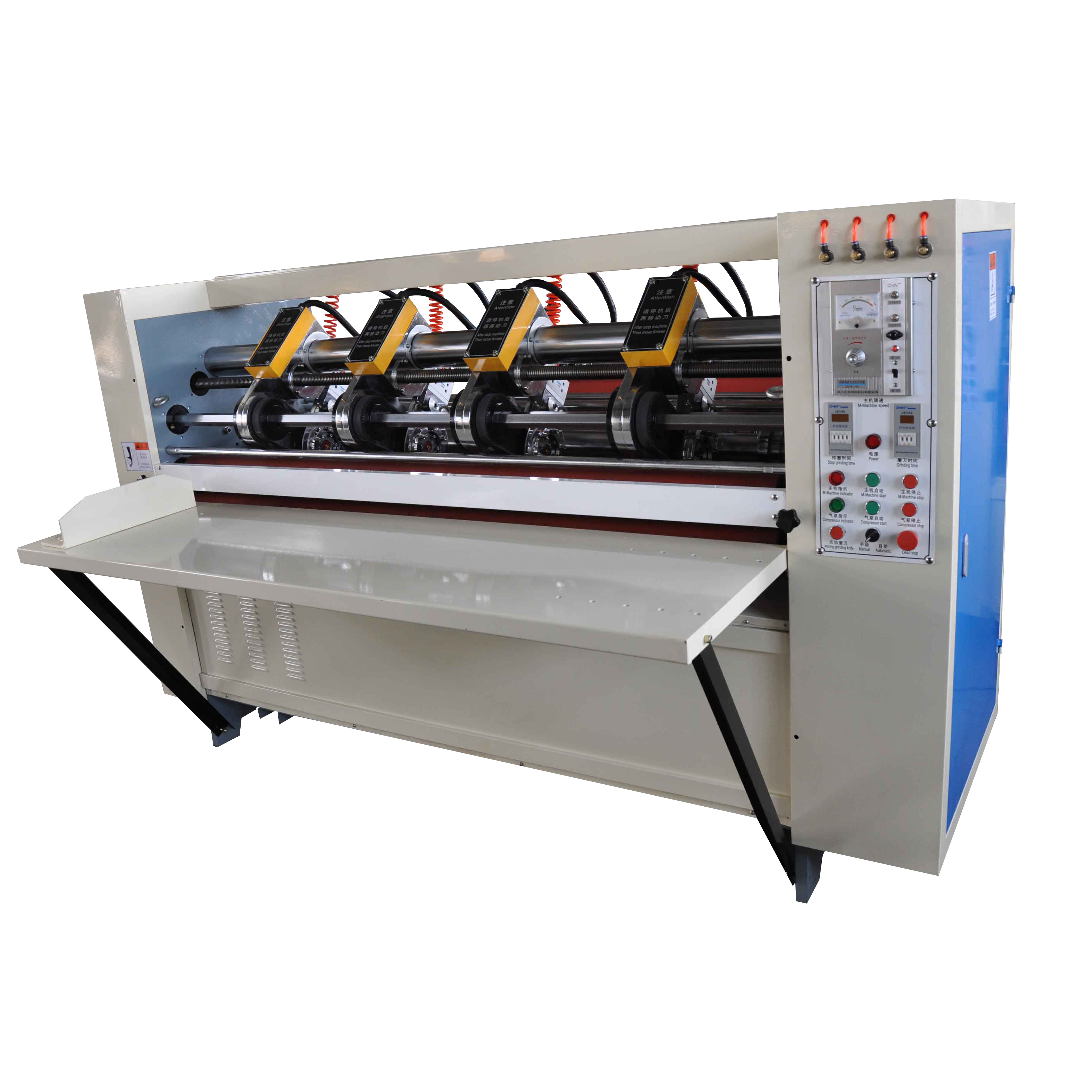

Hot sale high quality thin blade slitter scorer machine carton box slitter creaser machine corrugated cardboard making machine

Availability:
Quantity:
  • Other

  • 1.5 years

  • Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, packaging

  • New

  • Beverage, Commodity, Food, Machinery & Hardware

  • Cartons, Film

  • Paper, Wood

  • Semi-Automatic

  • Electric

  • 220V/380V

  • 4KW

  • Hebei, China

  • XINGLONG

  • model weight, 4T

  • Machine Model

  • CE ISO

  • Long Service Life

  • Engineers available to service machinery overseas

Product Description

      The machine is an important component of corrugated cardboard production line, it is used to slit and scorer for cardboard.
Model
BFY-SDP-2000
BFY—SDP-2200
BFY-SDP-2500
Knife and scorer
4knife 6scorer(or depend on clients)
Min slitting width(mm)
125
125
125
Min scorer width(mm)
50
50
50
OD of blade(mm)
200
200
200
Thickness of blade(mm)
1
1
1
Motor power(KW)
4
4
4
Max speed
100pcs/min
100pcs/min
100pcs/min
Air pressure
<0.4mpa
<0.4mpa
<0.4mpa
Dimension(mm)L×W×H
2800×850×1500
3000×850×1500
3300×850×1500



Function and characteristics

The machine adopts thin blade knife, board, flute not collapse, not flatten, edge is straight,     tidy and clean, improve quality of board.

Slit blade distance adjusted by motorized, and locked by pneumatic

First scorer, then slitting and final delivery out to machine.

Sharpening knife controlled by automatic or manual type, and it can set sharpen time and       stop time, keep knife sharpen, cut board tidily.

Each knife can be lifted separately, choose knife work according to cut quantity.

Crease wheel width adjusted by manual.

Detailed Images
FAQ
1. Q: Are you a manufacturer, trading company or a third party?A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company. 2. Q: How does your factory do regarding quality controlling?A: 1) All raw material we used are environmental-friendly2) Skillful workers care every details in handling the producing and packing process3) Quality control department are specially responsible for quality in each processWe have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers. 3. Q: What is the payment terms?A: T/T, it is 30% deposit due at placing order and 70% balance due before loading. 4. Q: How about the after-sale service?A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.2) To solve the problems with videos/pictures.3) One year warranty for spare parts change.
