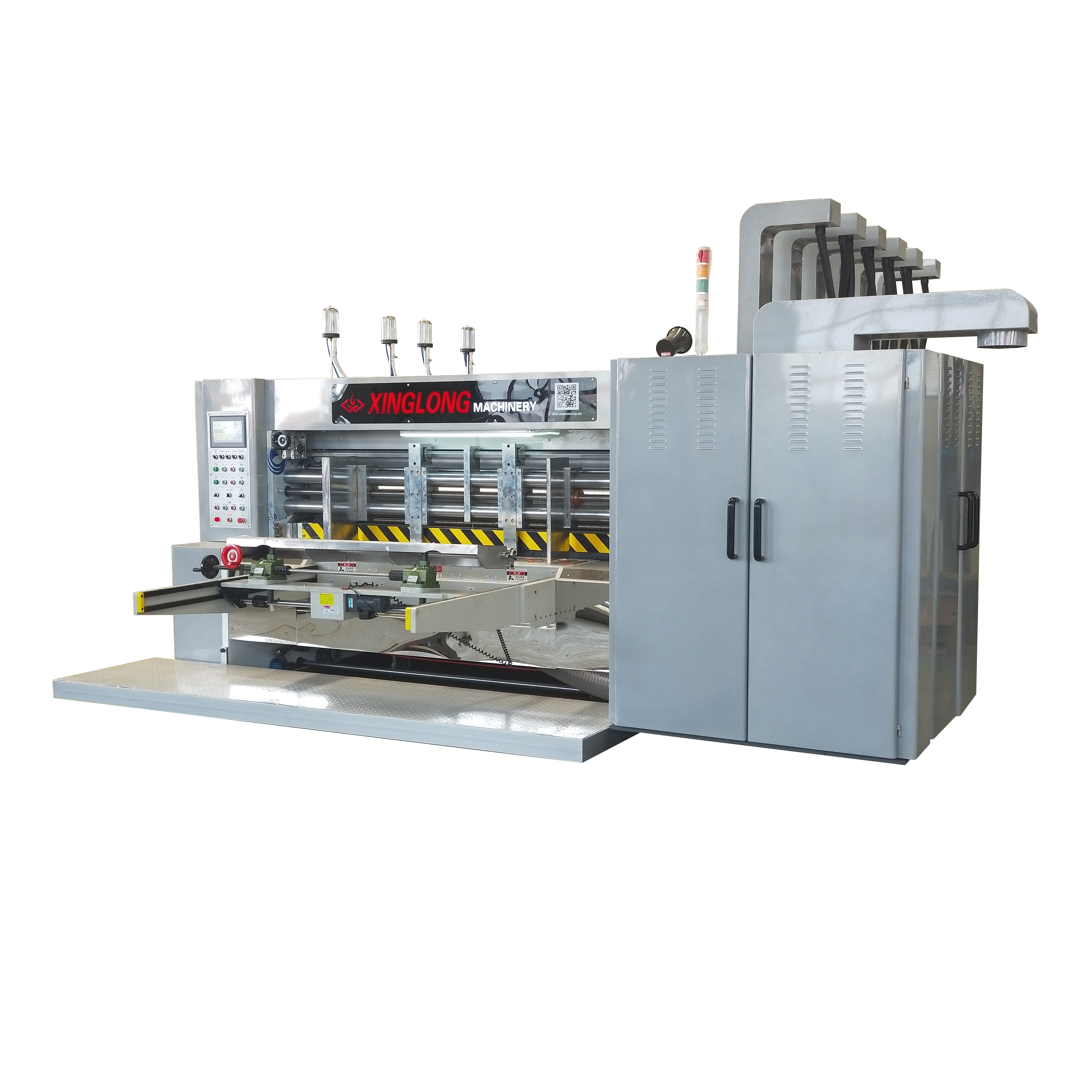

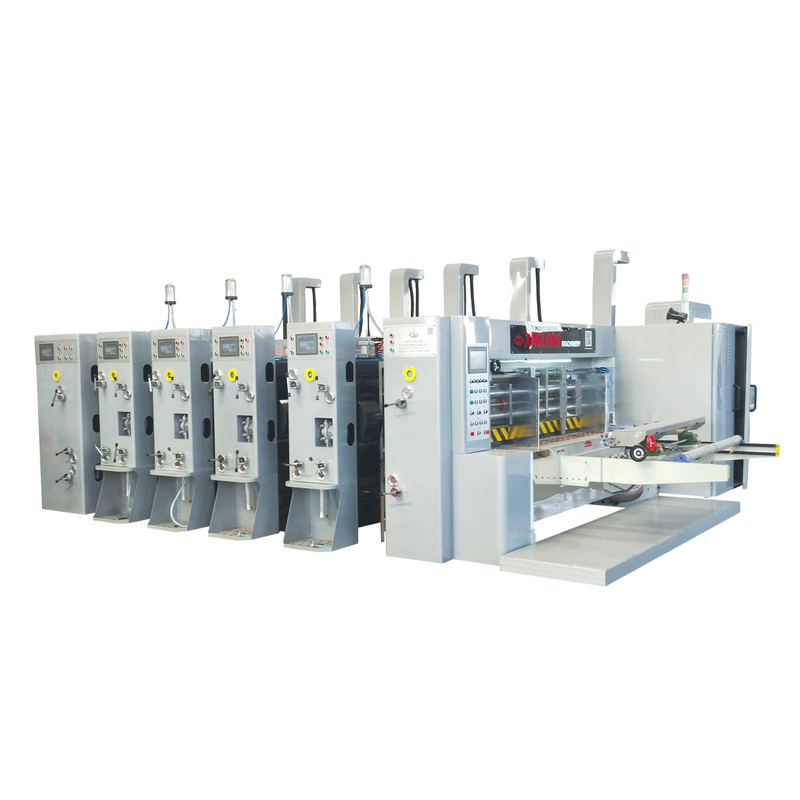

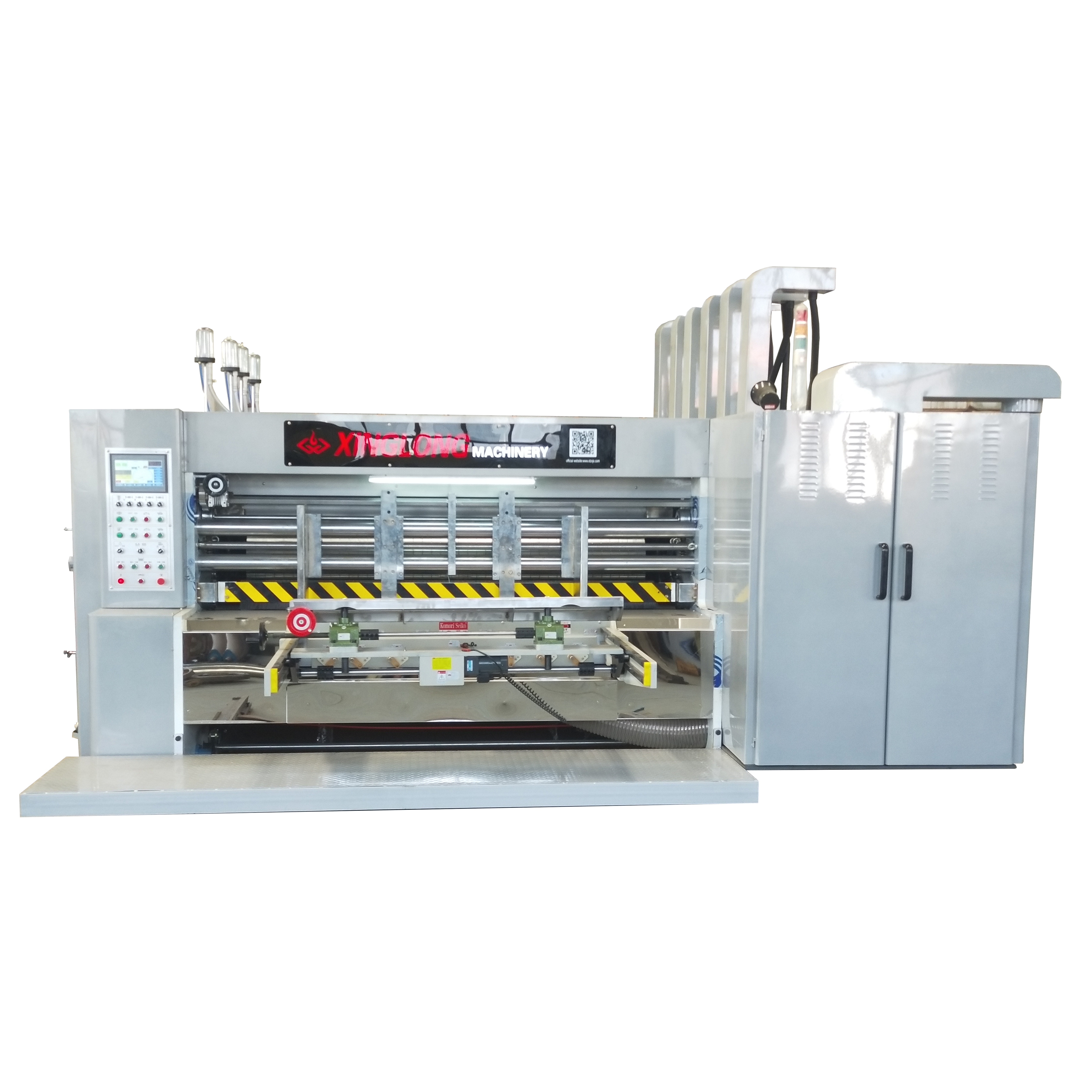

Hot sale & high quality high speed flexo printing & slotting & rotary die cutting machine

●Motorized control machine units move, the warming belt is alarming when moving, make sure working safety. ●Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation. ●When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase, ensure gear engaged correct when machine units lock. ●Machine unit adopts pneumatic locking system. ●Main motor frequency conversion control, energy saving. Main motor with start protecting device, machine can not run when machine units aren’t lock. ●Adopts lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly.●Top feed roller is made of high qualified steel, the outside be wrapped wear-resisting rubber, don’t destroy flute, guarantee feeding precision, improve the printing accuracy.●Bottom roller used high-quality steel, precision grinding, knurling, hard chrome plated paper roll hand mode rapid clearance of fine-tuning self-locking device, equipped with a dial display to adjust direction and numerical.●The left and right baffles adopt electric digital control, the front baffles space adopts manual adjustment, the back baffle box be adjusted by motorized.●After finishing the work order ,back to zero position

●Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly ●Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast.

●Using high quality steel, with grinding process and plating hard chromium.●Pressure roller surface be grinded and hard chromium plating ,do balance processing●Equipped special design wheel is keep from crack. ●Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount. ●Seamless steel tube is selected and processed by fine grinding and balance.●Slotting knife width 7mm, alloy material, after heat treatment grinding, tooth shape slotting knife, sharp edge, high precision.●The height of slotted cutter box is adjusted with four knives synchronously, and the slotted blade is shifted horizontally with four knives electrically synchronously. ●Manual fast clearance fine-tuning self-locking device with dial to display adjustment direction and value●Structure of planetary gear type●Slotting phase adopt 360 degree electric synchronous adjustment.●Option, clients are beard the cost

●Automatic compensation device for line speed of rubber pad roller extends the service life of youli rubber.●The rubber pad roller moves about 40mm horizontally automatically to extend the service life of youli rubber●When the rubber pad is not smooth, the function of grinding rubber roller can be opened to extend the service life of the rubber pad.●The use of high quality Taiwan super resistance youli rubber pad.●The roller is grinded with cast steel and the wall thickness is 45mm.●Die-cutting roller with grooves (synchronous knife), when there is a general slot box can not be done die-cutting.●Pneumatic manual or automatic control die - cutting roll, when the paper into the die - cutting roll lift cut paper, stop the paper drop to avoid damage rubber pad.●Electric phase adjustment die cutting position
