Gluing Machine
Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops
New
Food, Beverage, Apparel
Cartons
Paper
Automatic
Electric
380V50HAZ or customized
China
Xinglong
4500*2100mm
2000kg
CE certificate
1 YEAR
Field installation, commissioning and training, Video technical support, Online support
Easy to Operate
1200*2600mm
300*700
125003200*1600mm

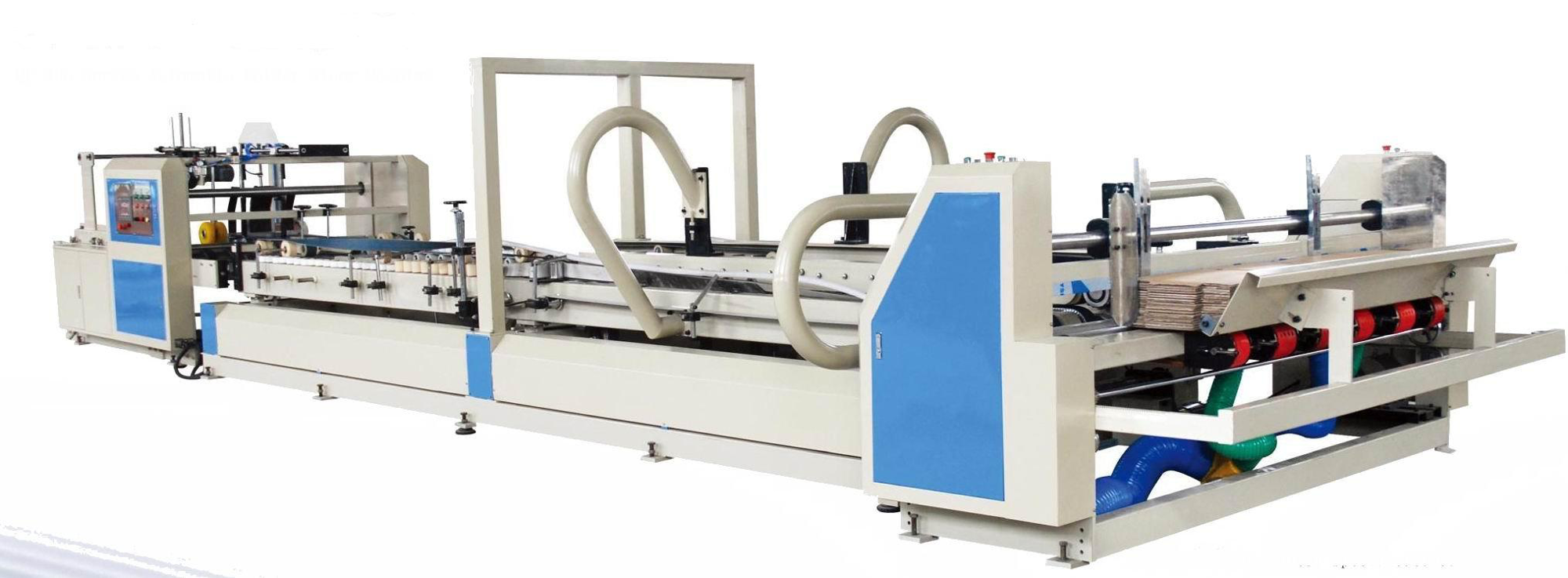

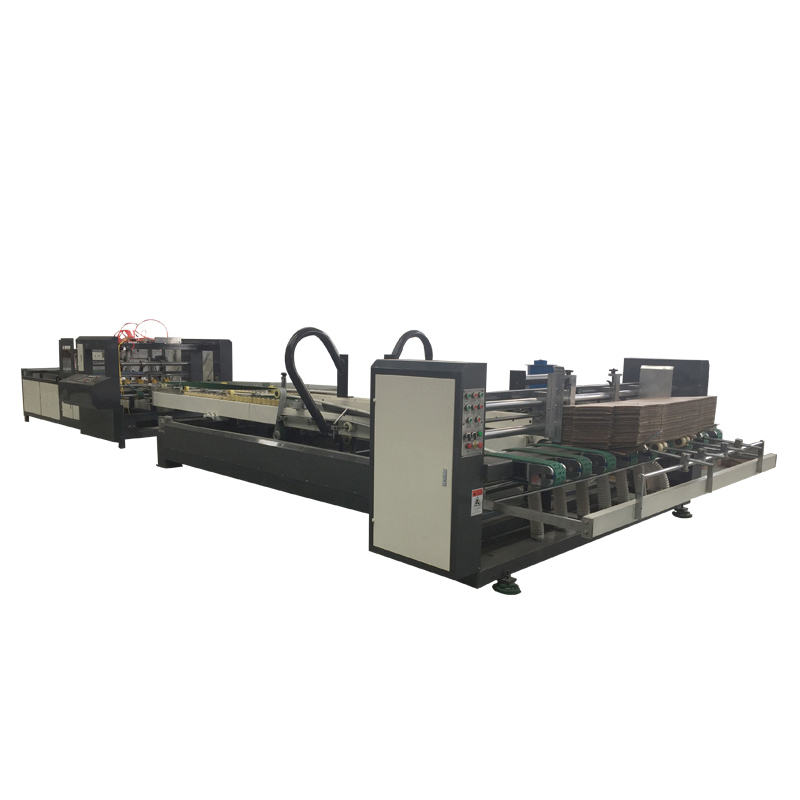

This machine is the last process equipment of the carton folding, it is used to combination of 3 and 5 layer corrugated cardboard production line( if need to glue 7 layer cardboard, we also can produce according customers’ appointed). Efficiency and production is attractive. The prominent advantage is low cost , strong adhesion, simple operating, saving labor and electric, runs smoothly, it is idea equipment for exporting advanced carton.
1. Working table
Photoelectric control the feeding, reduce labor and improve work efficiency.
2. Press correction
After gluing and the second pressing to the bonder is smooth and firm.
Equipped automatic correction device to make the carton size is correctly,Fan airing function
Counting output devices and with the photoelectric correlated mechanism, When reaching to the const carton, it outputs automatically.
3. Horizontal Output
Press counting output signal, then work automatically, stacking and strapping conviently.
4.Main spare parts
Gear reducer is known brand from China
Electricity components from “Chint”
Conveyor belt is made in XINBEX
The whole gluing head use imported material with finish process, wear-resisting, correction resisting, easy to clean.
Tips: Please contact us for the full version of video.
Specification:
Max size( length+ width)(mm) | 2460 |
Min size( length+ width) (mm) | 340 |
Max size(width+ height) (mm) | 1515 |
Min size( width+ height) (mm) | 240 |
Height of feeding paper (mm) | 900 |
Motor power (kw) | 4 |
The length of Machine (mm) | 4500 |
The Width of Machine (mm) | 2100 |
The weight of Machine (kg) | 2000 |
Machine speed (pcs/min) | 40 |
Need help? Please contact us:
Wechat /mobile:86-18230076923
Name :Jolin Liu
