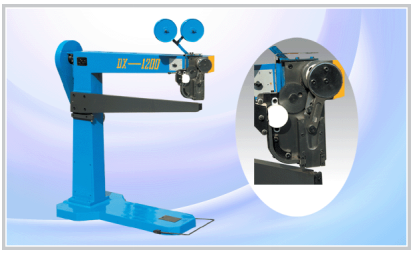

DXJ Series Manual Box Stitching Machine
MACHINE INTRODUCTION
The DXJ Box stitching machine adopts double eccentric wheel structure, pressure angle used suitable cutter point. The interchangeability assembling parts adopt rolling bearing so machine run more stable and faster, stitch fixable, long time use life.
Main Technology Parameter
| Model | DXJ-1200 | DXJ-1400 |
| Arm effective length (mm) | 1200 | 1400 |
| Total height (mm) | 1650 | 1650 |
| Seat length (mm) | 1000 | 1200 |
| Stitching speed | 250times/min | 250time/min |
| Stitching thickness | 3ply,5ply,7ply | 3ply,5ply,7ply |
| Applicable stitching wire | 1.80mm*0.59mm(w*h) | 1.80mm*0.59mm(w*h) |
| Motor power | 0.37kw | 0.37kw |
| Weight | 450kg | 500kg |
| Dimension (L*W*H) | 1600*600*1650mm | 1800*600*1650mm |
