SW-9060-8D
xinglong
Automatic inserting Machine
Automatic
New
China,Hebei
Provided
Customized
1 Year
Ordinary Product
Easy to Operate
Video Technical Support
Automatic Inserting Machine

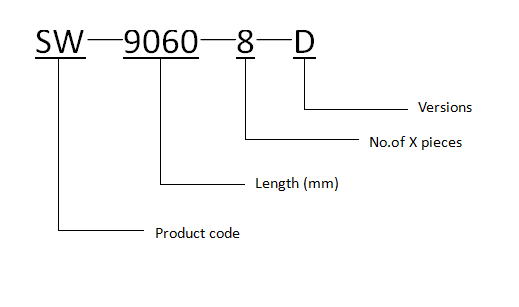

Model Description

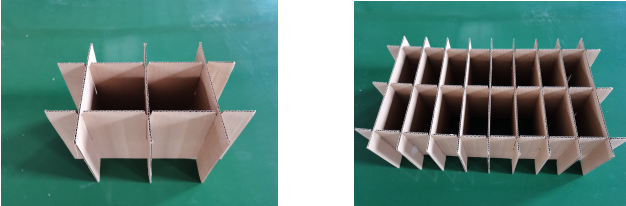

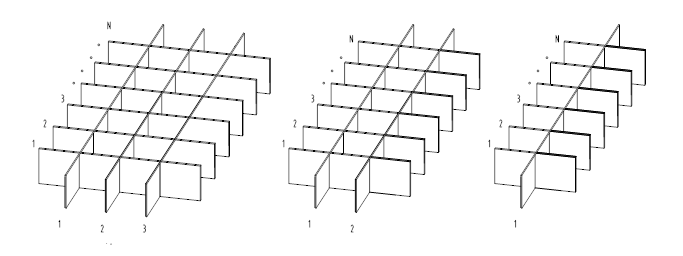

Partitions Form Sketch
Specification List
Item | Parts name | Qty | Remarks |
1 | Automatic inserting machine | 1 unit | Inserting:double-position; Sheets composing:Decussation |
2 | Sheet Delivery | 1 unit | |
3 | Pneumatic System | 1 set | customer prepare air pump |
4 | Electric system | 1 set | PLC、human machine interface 、Servo control |
Structure Characture
* Automatic inserting each kinds clapboard and block
* Cross-cutting slots for paper at the same time, longitudinal and transverse
* Instead of manual, two sets per time.
* Vertical and lateral feed table overall electric adjustment and lifting(electric type)
* Electric adjustment of transverse grid height (electric type)
* Advanced science in mechanical structure, quick adjustment, convenient use
SW-9060-8D Technical parameter
Name | Unit | Data |
Horizontal inserting width: A | mm | 100~900 |
Lengthways sheets length: B | mm | 210~600 |
Clapboard Height: H | mm | 80~300 |
Lengthways clapboard distance: D | mm | 22~500 |
Horizontal clapboard distance: C | mm | 40-850 |
Lengthways sheets No. | pcs | 1-8 |
Horizontal clapboard No. | pcs | 1-27 |
Carton inserting mouth width:F | mm | >board thickness |
Carton thickness:K | mm | 1.5~8mm |
Physical Dimension
Model | Dimension (L*W*Hm include sheet delivery) | Total power (kw) |
SW-9060-8D | 8.6*2.0*1.9 | 7.5 |
Grid Application Requirements
* Partition board molding: die cutting molding

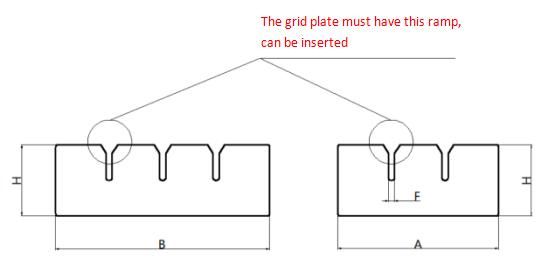

* Partition board interval should have bevel/oblique opening(as shown in the following figure)
Automatic Inserting Machine
Model Description
Partitions Form Sketch
Specification List
Item | Parts name | Qty | Remarks |
1 | Automatic inserting machine | 1 unit | Inserting:double-position; Sheets composing:Decussation |
2 | Sheet Delivery | 1 unit | |
3 | Pneumatic System | 1 set | customer prepare air pump |
4 | Electric system | 1 set | PLC、human machine interface 、Servo control |
Structure Characture
* Automatic inserting each kinds clapboard and block
* Cross-cutting slots for paper at the same time, longitudinal and transverse
* Instead of manual, two sets per time.
* Vertical and lateral feed table overall electric adjustment and lifting(electric type)
* Electric adjustment of transverse grid height (electric type)
* Advanced science in mechanical structure, quick adjustment, convenient use
SW-9060-8D Technical parameter
Name | Unit | Data |
Horizontal inserting width: A | mm | 100~900 |
Lengthways sheets length: B | mm | 210~600 |
Clapboard Height: H | mm | 80~300 |
Lengthways clapboard distance: D | mm | 22~500 |
Horizontal clapboard distance: C | mm | 40-850 |
Lengthways sheets No. | pcs | 1-8 |
Horizontal clapboard No. | pcs | 1-27 |
Carton inserting mouth width:F | mm | >board thickness |
Carton thickness:K | mm | 1.5~8mm |
Physical Dimension
Model | Dimension (L*W*Hm include sheet delivery) | Total power (kw) |
SW-9060-8D | 8.6*2.0*1.9 | 7.5 |
Grid Application Requirements
* Partition board molding: die cutting molding
* Partition board interval should have bevel/oblique opening(as shown in the following figure)
