Hot Selling ZXJ-QI Series Automatic Folder Gluer Machine

Quantity:
  • Other
  • 1.5 years, 1 Year
  • Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company
  • New
  • Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
  • Cartons
  • Paper, Wood
  • Automatic
  • Electric
  • 380V 50HZ
  • 10-12kw
  • Hebei, China
  • XINGLONG
  • 5.5-7.5 tons
  • customized
  • CE
  • Engineers available to service machinery overseas
  • Hot Selling ZXJ-QI Series Automatic Folder Gluer Machine
  • 1200*2400mm
  • 170*450mm
  • 3layer or 5layer
  • Engineers available to service machinery overseas
Product Description

Machine instruction

The machine includes feeding part, gluing and folding part, counting and stacking part. Digital control, PLC adjust width(optional,
Conventional models without), double frequency motor working synchronous, control easy, fast, accurately. Feed, glue folder, count
and stack automatically, high speed, save labor cost.
Feeding part
* Adopt belt lead edge feeder with suction, working accurately.
* Adopt high grade electromagnetic clutch and brake system, feeding part can be controlled separately, easy operation
* Height of press wheel is be adjusted , suitable sheet thickness 2-8mm
* Use frequency motor working with folding part together, feeding speed 0-150m/min
* Front baffle and belt is be moved.

Glue and fold part
* Frequency motor, no noise, speed adjustable fast and stable
* Use import high friction belt feed sheet, stack automatically.
* Use stainless steel wheel gluing, glue amount average, no fault and save glue
* Fold part equipped with correction and crease device
* Fold part equipped with two row adjustable guide wheel, high precision

Fold speed 0-150m/mi

Count and stack part
* Automatic stacking,output tidiness
* counting part with frequency motor, speed adjustable, working stable
* Belt feed out carton, stack tidiness, speed 0-130m/min
* Lapping plate beat carton, correction, small error.
* Count and feed out by pneumatic work, PLC control, fast and accurately
* Use PLC and touch screen, easy work, it can input data non stop machine, count automatically.
* Feed out part equipped with bottom out belt and upon press belt, press synchronously, carton glue firmly, tidiness no mismatch.

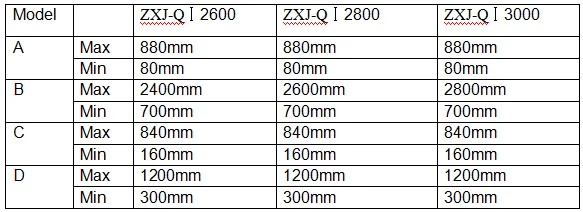

Size Information
Packing&Shipping
After Sales Service
Install the machine in customer's factory
Warranty: One year since the buyers get the machines. The supplier are not responsible for the maintenance, however, if machine
had any quality problems (excluding the problem issued by the voltage instability and wrong operation) the sellers can supply the
spare parts (except the damageable parts) to the buyers free for charge.
Company Introduction
FAQ
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to
visit our company.

2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are
also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned
us a high reputation among the customers.

3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.

4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
