Other
Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company
New
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Cartons
Plastic, Wood
Automatic
Electric
380V 50HZ
30KW
Hebei, China
XINGLONG
about 15T
customized
CE
Easy to Operate
Engineers available to service machienry overseas
Bottom Price 160mm Single Facer Corrugated Carboard line
1600mm
300mm
80~100m/min
80gsm-170gsm
1 Year
1600mm
600mm
2500kg
Engineers available to service machinery overseas

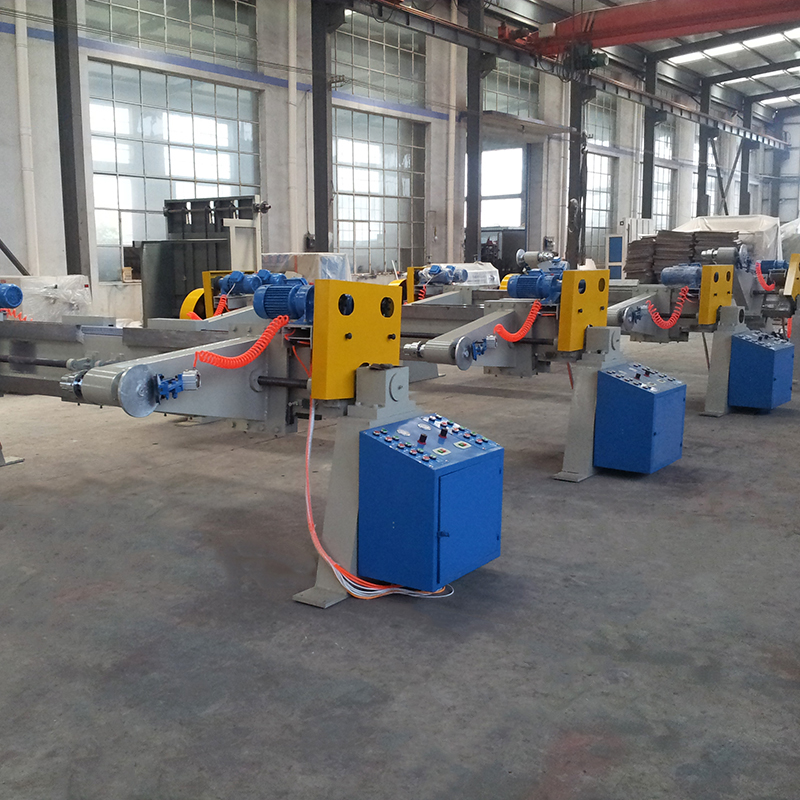

[RS-E-1600 Electric Shaftless Mill Roll Stand]
Technology Parameter:
Max working width | 1600 |
Min working width | 600mm |
Max paper roll diameter | 1500mm |
Single Side carriage | 2500kg |
Air pressure | 0.6-0.9Mpa |
Power | 4.5kw |
Features:
l Symmetrical structure can install two rolls of paper at the same time and continually change paper roll;
l It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation .
l It adopts pneumatic braking.
l Electrical components are controlled centralized(domestic brand)

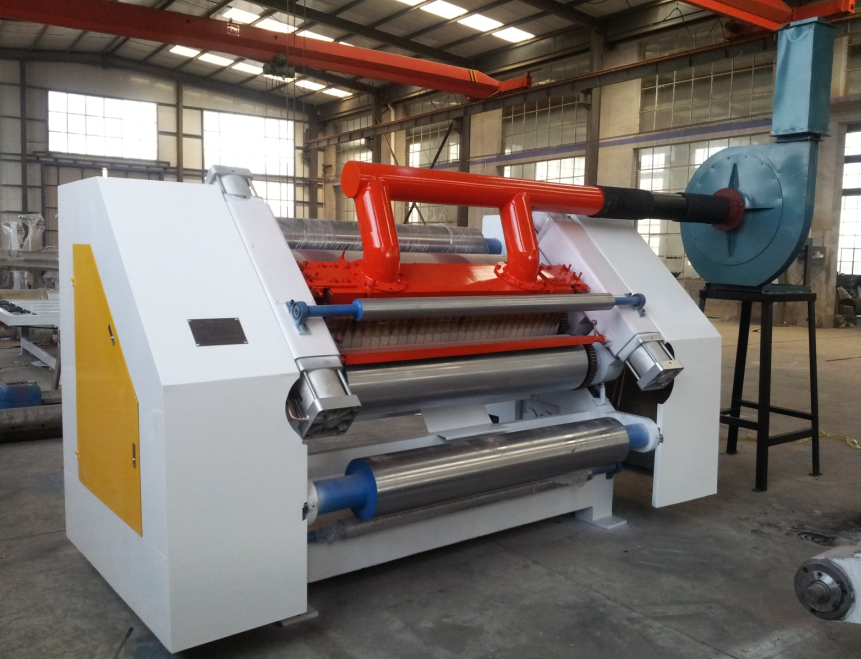

SF300-1600 Vacuum Single Facer
Technology parameters:
Effective width | 1600mm |
Flute roller diameter | 300mm |
Speed | 10-50m/min |
Application medium paper | 80gsm-170gsm |
Heating | Electrical |
Power | About15kw |
Features
n Vacuum suction type pulling cardboard with wind control device.
n Glue roller and fixed roller are designed to groups guide way slippage load-unload, convenient and swift.
n Used pneumatic control top flute roller, pressure roller and gluing roller come back movement.
n Flute roller adopts 48CrMo high quality alloy steel, with heat treatment, surface be grinded and chrome plated.
n Adjust gluing width devise: Electric control
n Glue amount adjustment: pneumatic control
The bearing of flute roller and pressure roller adopt high temperature resistant lubrication grease.

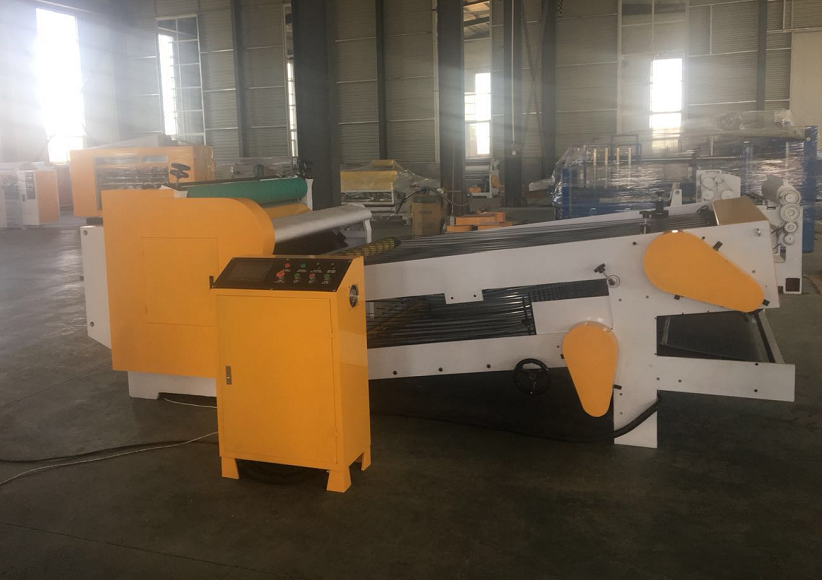

YGQ-1700mm sheet cutter&stacker
Features:
This machine is main applied to cutting roll paper into required size sheets in laterally and long direction. It is features of simple structure and operation, long service life etc.
Parameter | Specification | Unit | 1700model |
Max cutting width | mm | 1700 | |
Cutting length range | mm | 400-2400 | |
Cutting times | Times/min | 0-70 | |
Stepless convertor |
| P3 | |
Motor | kw | 4.0 | |
Working speed | m/min | 0-50 | |
Weight | (approx)T | 2300kg | |
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
