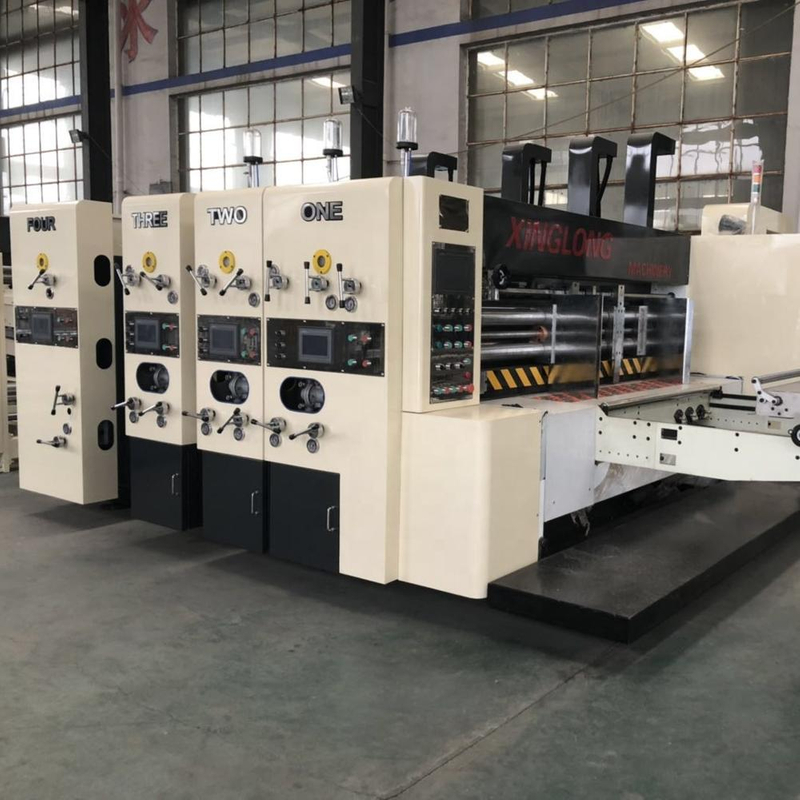

QYKMA410-2800 3 color Printing Slotting Die-cutting Machine
2800mm
1200mm*2600mm
1200mm*2400mm
300mm*500mm
240*80*240*80
120pcs/min
100pcs/min
1 Year
Main Technology parameters
Model | QYKMA410-2800 |
Machine inside width (mm) | 2800 |
Max feeding paper size | 1200mm*2600mm |
Max effective printing size | 1200mm*2400mm |
Min coverage size(mm) | 300mm*500mm |
Min slotting space(mm) | 240*80*240*80 |
Design speed | 120pcs/min |
Working speed | 100pcs/min |
Standard Thickness of printing plate | 6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-9mm |
Wall thickness | 40mm |
Main motor power | About :40kw |
Performance and Characteristics:
l The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
l Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
l All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
l Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
l The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
l The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
l Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)
l The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
l Main motor is VFD, working stability, low power consumption.
1. Feeding unit
l Motorized control machine units move, the warming belt is alarming when moving, make sure working safety.
l Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation.
l When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase, ensure gear engaged correct when machine units lock.
l Machine unit adopts pneumatic locking system.
Main motor frequency conversion control, energy saving. Main motor with start protecting device, machine can not run when machine units aren’t lock.
l Adopts lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly.
2. Printing unit
l Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly
l Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast.
l Full hang-plate device, 10mm hang-plate strip is available.
Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version,unloading version.
l Seamless steel tube surface is grinded and plated hard chrome, do balance correction, running stable.
Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
l Use thick good quality steel pipe, professional manufacturing, do balance processing, the feeding roller adopt fine grinding to be molding.
Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
3. Slotting unit
l Using high quality steel, with grinding process and plating hard chromium.
l Pressure roller surface be grinded and hard chromium plating ,do balance processing
l Equipped special design wheel is keep from crack.
Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.
l Structure of planetary gear type
Slotting phase adopt 360 degree electric synchronous adjustment.
4. Die-cutting unit
Glue roller line speed auto repair device, prolong the service life of rubber.
The rubber roller adopts horizontal automatic position move left and right. The movement distance is 40mm. Prolong the service life of rubber.
Automatic grinding roller function, prolong the service life of rubber.
Adopts high quality Taiwan durable rubber
Roller made from cast steel grinding, wall thickness is 30 mm.
Die-cutting roller pneumatic manual or automatic control, die cutting roller lift cutting when feeding paper, down when stopping feeding paper avoid damage the rubber.
The phase of die cutting position electric adjust
