Availability: | |
---|---|
Quantity: | |
Distinguishing feature:
After service: | Engineers available to service macinery overseas |
Machine weight | 23000KG |
Machine dimension | 75000 x 8000 x 5000mm |
Driving type | Electric drive |
Heating Method | Steam heating |
Automation | Automatic control |
Package | Covered with plastic film |
Machine status | 100% NEW |
84413090 | |
150 m/min | |
120 days | |
4-5 persons | |
2 technicians | |
30 days |
Main Technology Parameters:

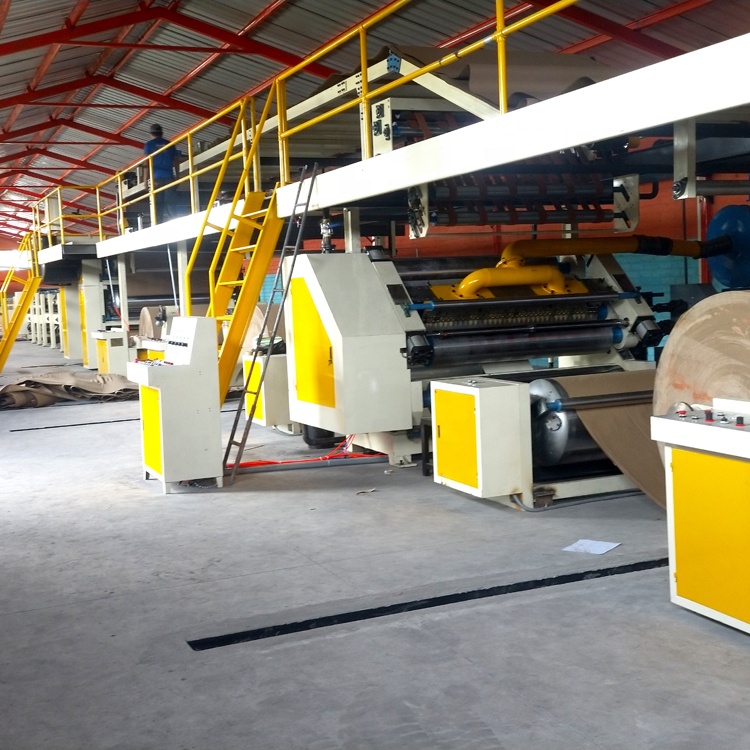

n Model CL150-1800
n Total length About 75 meters (depend on base drawing)
n Design speed 150 m/min
n Working speed 100-120 m/min for 3-ply, 80-100 m/min for 5-ply
n Effective width 800-1800mm
n Total power: 250KW (Only require about 150KW when the line running)
n Steam pressure and consumption
Pressure 1.4 - 1.6MP Consumption about 2500-3000kg/h
n Air pressure and consumption
Pressure0.8 - 1.0 MPa consumption about: 1.5 m3/min
n Slitting precision:±1mm(manual)
n Cutting length and precision 500 - 9999mm, ±1mm
n Dimension about 75m×8m× 5m (L×W×H)
n Equipment flow: according the customers’ workshop to installation the machine
Note: Test basis paper for production line should meet follow requirements;
n Machine surface temperature: not less than 172℃
n Basis paper scale ≥B
n Basis paper moisture: 11%±1%
liner: 150 - 200 g/m2; medium paper: 150 - 200 g/m2;
corrugated paper: 105 - 180 g/m2
Note: some parts equipped by consumers
n Heating system: one set steam boiler that rate capacity is 4000kg/h, rated pressure 1.25Mpa
n Steam pipe (Dia.114mm) and air return-air drainage duct (Dia.89mm).
n Compressored air tupe, glue pipe, steam pipe and air return pipe
n Water, electricity, gas installation ground work.
n Equipment machine grease, lubrication oil, engine oil.
n Test basis paper, corn(potatoes)starch, caustic soda for industrial use, Borax and other material
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
