Availability: | |
---|---|
Quantity: | |
Other
Manufacturing Plant, Food & Beverage Factory, Farms, Advertising Company
New
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Cartons
Plastic, Wood
Automatic
Electric
380V 50HZ
7KW
Hebei, China
XINGLONG
about 15T
customized
CE
easy to operate
±0.5mm
You like
1 Year
1450mm*2100mm
1450mm*1900mm
350mm*500mm
240*80*240*80
120pcs/min
80-100pcs/min
6mm
Engineers available to service machinery overseas
Main Technology parameters
Model | QYKMA480-2300 |
Machine inside width (mm) | 2300 |
Max feeding paper size(mm) | 1450mm*2100mm |
Max effective printing size(mm) | 1450mm*1900mm |
Min coverage size(mm) | 350mm*500mm |
Min slotting space(mm) | 240*80*240*80 |
Design speed(pcs/min) | 120pcs/min |
Working speed(pcs/min) | 80-100pcs/min |
Standard Thickness of printing plate | 6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-9mm |
Wall thickness | 40mm |
Main motor power | About :7KW |

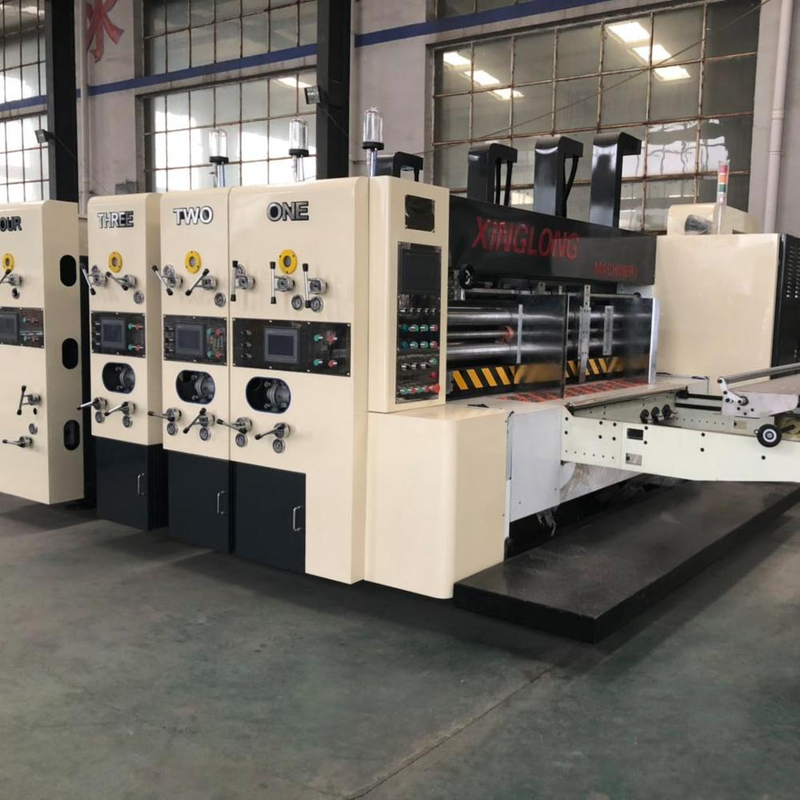

Performance and Characteristics:
l The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
l Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
l All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
l Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
l The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
l The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
l Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)
l The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
1.Feeding unit

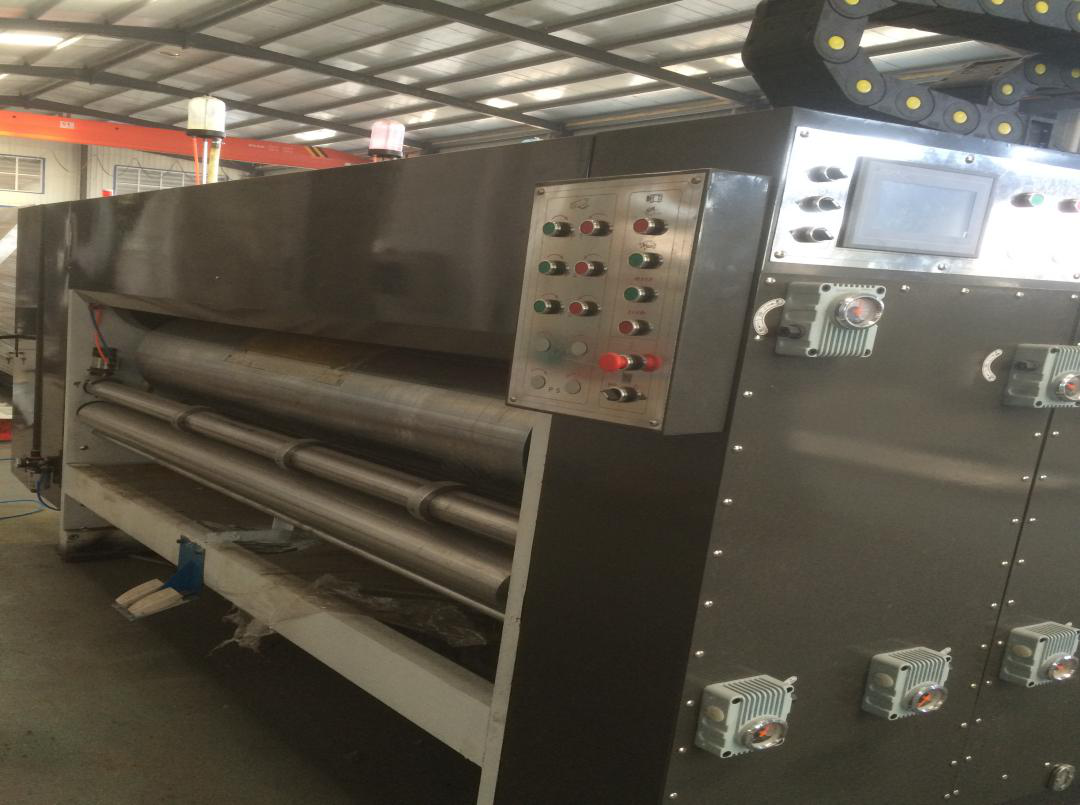

2.Printing unit
3. Slotting unit
4.Die Cutting unit
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
Main Technology parameters
Model | QYKMA480-2300 |
Machine inside width (mm) | 2300 |
Max feeding paper size(mm) | 1450mm*2100mm |
Max effective printing size(mm) | 1450mm*1900mm |
Min coverage size(mm) | 350mm*500mm |
Min slotting space(mm) | 240*80*240*80 |
Design speed(pcs/min) | 120pcs/min |
Working speed(pcs/min) | 80-100pcs/min |
Standard Thickness of printing plate | 6mm |
Printing precision | ±0.5mm |
Thickness of cardboard | 1.2-9mm |
Wall thickness | 40mm |
Main motor power | About :7KW |
Performance and Characteristics:
l The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
l Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
l All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
l Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
l The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
l The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
l Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)
l The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
1.Feeding unit
2.Printing unit
3. Slotting unit
4.Die Cutting unit
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
3. Q: What is the payment terms?
A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
Contact for professional service. Contact Us
