Economic Printing slotting die cutting Machine
Video Technical Support
Electric
Provided
Economic Automatic Printing Die cutting Machine
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with clean teeth treatment, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Main Technology Parameters
Model | YJE920 | YJE1222 | YJE1424 |
Machine inside width (mm) | 2200 | 2400 | 2600 |
Max feeding paper size(mm) | 900mm*2000mm | 1200mm*2200mm | 1400mm*2400mm |
Max effective printing size(mm) | 900mm*1800mm | 1200mm*2000mm | 1400mm*2200mm |
Min coverage size(mm) | 350mm*720mm | 350mm*720mm | 350mm*720mm |
Max effective die cutting size(mm) | 900*1900mm | 1200*2100mm | 1400*2300mm |
Design speed (pcs/min) | 150pcs/min | 140pcs/min | 120pcs/min |
Working speed (pcs/min) | 130 pcs/min | 120 pcs/min | 100 pcs/min |
Standard Thickness of printing plate | 4-6mm | 4-6mm | 4-6mm |
Printing precision | ±0.5mm | ±0.5mm | ±0.5mm |
Thickness of cardboard | 2-9mm | 2-9mm | 2-9mm |
Wall thickness | 40mm | 40mm | 40mm |
Main motor power | 15kw | 15kw | 15kw |
Lpi of anilox roller | 200/220/250 | 200/220/250 | 200/220/250 |
1.Feeding unit
2. Printing unit.
3.Die cutting unit + Slotting knife
Vibrator and Stacker unit (option)
Vibrator unit
1) Frequency conversion speed regulation, can control the main engine speed, safe and reliable operation
2) Equipped with waste removal force fan and waste discharge brush
3) Waste paper discharge device
4) Seismic waste strength adjustable
5) High elastic round belt has long service life and cannot damage cardboard.
6) Introduced foreign advanced experience, better separation of waste from the finished product after die cutting, beat to remove waste, improve working conditions and efficiency.
Stacker unit
1) Catch paper arm can be manual or automatic operation, has insurance mechanism, prevent catch paper arm suddenly whereabouts, ensure the safety of operating personnel.
2) Bed table lifting and down force, the chain drive
3) Stack height is 1600 mm.
4) Bed table with cardboard stacking automatically adjust tilt height, lifting motor, with brake function. Bed table can maintain a fixed position,not falling.
5) Vapour-pressure type Lift the paper mechanism ,when cardboard stack to a predetermined height, catch paper pallet automatically open, the support hold up the cardboard.
6) Planar wrinkles belt , prevent the cardboard down glide.
Economic Automatic Printing Die cutting Machine
Performance and Characteristics:
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with clean teeth treatment, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Main Technology Parameters
Model | YJE920 | YJE1222 | YJE1424 |
Machine inside width (mm) | 2200 | 2400 | 2600 |
Max feeding paper size(mm) | 900mm*2000mm | 1200mm*2200mm | 1400mm*2400mm |
Max effective printing size(mm) | 900mm*1800mm | 1200mm*2000mm | 1400mm*2200mm |
Min coverage size(mm) | 350mm*720mm | 350mm*720mm | 350mm*720mm |
Max effective die cutting size(mm) | 900*1900mm | 1200*2100mm | 1400*2300mm |
Design speed (pcs/min) | 150pcs/min | 140pcs/min | 120pcs/min |
Working speed (pcs/min) | 130 pcs/min | 120 pcs/min | 100 pcs/min |
Standard Thickness of printing plate | 4-6mm | 4-6mm | 4-6mm |
Printing precision | ±0.5mm | ±0.5mm | ±0.5mm |
Thickness of cardboard | 2-9mm | 2-9mm | 2-9mm |
Wall thickness | 40mm | 40mm | 40mm |
Main motor power | 15kw | 15kw | 15kw |
Lpi of anilox roller | 200/220/250 | 200/220/250 | 200/220/250 |

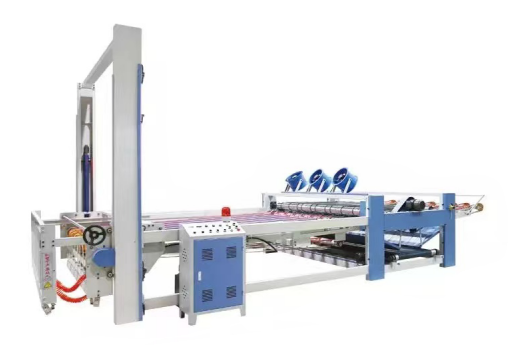

1.Feeding unit

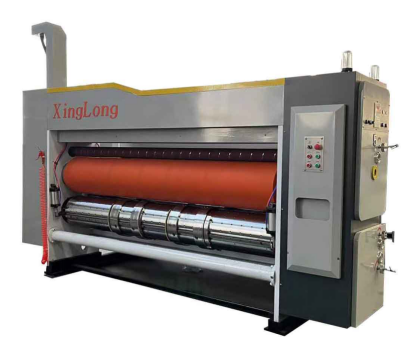

2. Printing unit.

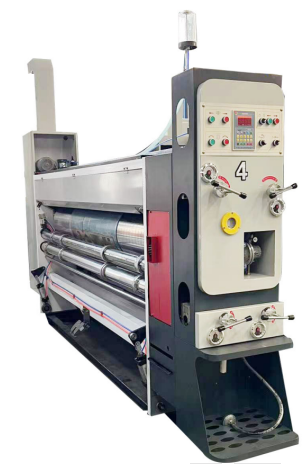

3.Die cutting unit + Slotting knife
