1300B
xinglong
Full auto 3 ply laminator
Automatic
Xinglong
Easy to Operate
Provided
Ordinary Product
New
Electric
Hebei, China
Provided
High speed full Automatic Flute laminator machine
※ TECHNOLOGICAL PARAMETER
| Model | 1300B | 1450B | HRB-1650B |
| Max. paper size | 1300×1100mm | 145×1100mm | 1650×1450mm |
| Min. paper size | 400×400mm | 400×400mm | 400×400mm |
| Mini.weight of bottom paper | 300gsm | 300gsm | 300gsm |
| Max. thickness of bottom paper | 10mm | 10mm | 10mm |
| Mini. weight of face paper | 180gsm | 180gsm | 250gsm |
| Max. weight of face paper | 800gsm | 800gsm | 800gsm |
| Precision | ±1.2mm | ±1.2mm | ±1.2mm |
| Machine speed | 6000pcs/h | 6000pcs/h | 6000pcs/h |
| Total power | 14KW | 14KW | 14KW |
| Total length | 12.5M | 12.5M | 14.5M |
Total weight | 6200KG | 6200KG | 7500KG |
※ BRANCH INTRODUCTION:
■Surface Paper Feeding Part
The Feeding device made in Taiwan ensures that the feeding of surface paper is smooth and accurate.
■Surface Paper Conveying Part
Unique central gear made of wear-resistant PU rubber cooperating with conveying belt ensures stability
and smoothness of conveying, which is adaptive for different sheets of different thickness without any
abrasion for the printing surface.PROFESSIONAL CARTON BOX MACHINERY

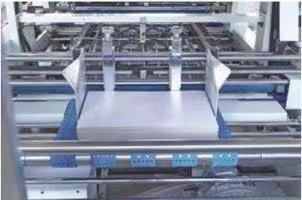

■Alignment System of Surface Paper
Synchronous sheet pusher particularly designed ensures that the surface paper and bottom paper
enter the pasting part at the same time. It can be fine adjusted during the course of working.

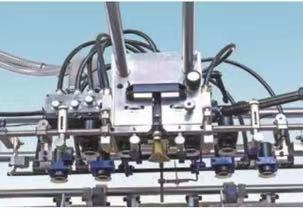

■Bottom Paper Feeding Part
Imported suction feeding device with punching belts ensures stable feeding at high speed. It is suitable
for cardboard heavier than 300g/m2, corruggated boards of A,B,C,D,E,F,N and three, five or seven
Layers
■Bottom Paper Conveying Part
Synchronous sheet pusher particularly designed ensures the stable and accurate conveying of
cardboards heavier than 300g/m2, and corrugated boards of A,B,C,D,E,F,N and three, five or seven
layers.
■Driving System
Imported wear-resistance timing belt, belt wheels cooperating with sheet pusher, adjustment system
and alignment mechanism ensures a paste tolerance of ±1.5mm and reduction of torn sheet.
■Adjustment System
Fine regulator completely manufactured in Japan is adopted, which actualizes the adjustment of
pasting tolerance during the course of working with high speed, thus improving the working efficiency.
■Electrical Control Part
All the electrical power adopted the worldrenowned brands, steady and dureable, frequency speed
govering, lower noise and energy conservation.
■Adding Glue and Gumming System
Automatic adding glue system detects by electrically operated fluid controller and adds gule
automatically during the course of pasting. The thickness of glue is adjustable according to paper. Recycling system of glue avoids a waste of glue and swinging glue, and ensures accurate and tidy
laminating.Unique applied anilox roller glues evenly, even suitable for cardboards and cardboards.
