High speed full Automatic Flute laminator machine for corrugated cardboard

Availability:
Quantity:
  • HRB-1650B

  • xinglong

  • Fully automatic

  • Electric

  • China,Hebei

  • Ordinary Product

  • Provided

  • Easy to Operate

  • 1 Year

  • Video Technical Support

  • Corrugated cardboard production line

  • Automatic flute laminator machine

封面(蓝)1

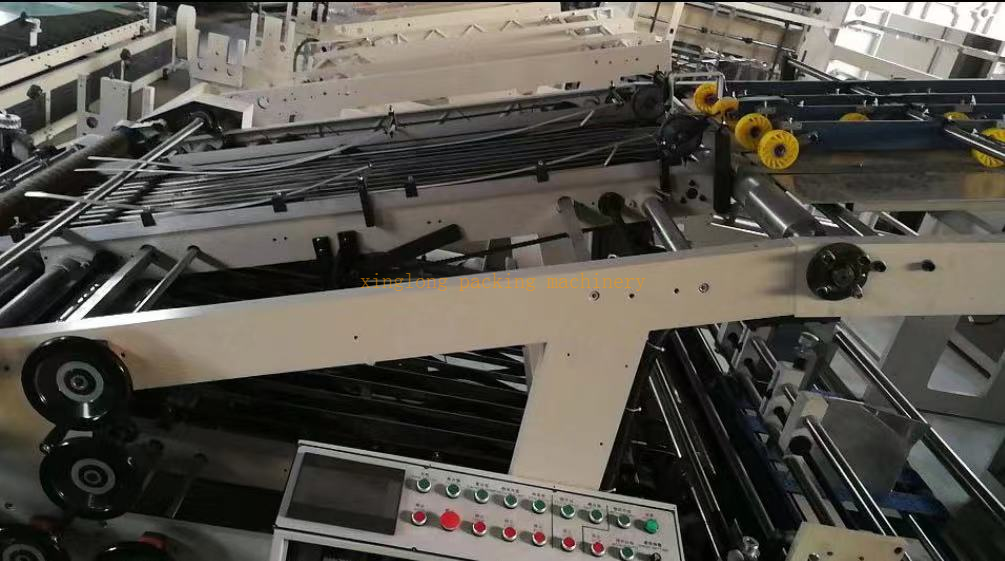

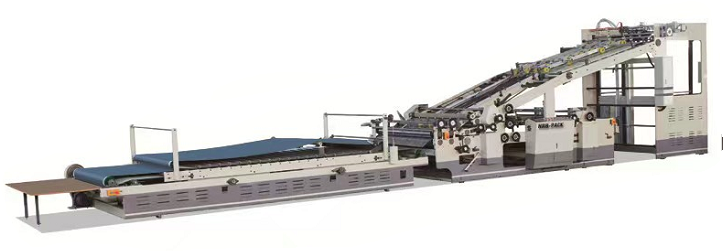

High speed full Automatic Flute laminator machine

全自动贴面机3

※ CHARACTERISTICS:

■ Our company manufacture professionally HRB-B series of Automatic Flute Laminator used for

printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the

application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy. Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported

bearings is adopted in the key parts, to ensure the stability of the whole performance. Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the

advantages of easy maintenance

贴面机

※ TECHNOLOGICAL PARAMETER

Model

1300B

1450B

HRB-1650B

Max. paper size

1300×1100mm

145×1100mm

1650×1450mm

Min. paper size

400×400mm

400×400mm

400×400mm

Mini.weight of bottom paper

300gsm

300gsm

300gsm

Max. thickness of bottom paper

10mm

10mm

10mm

Mini. weight of face paper

180gsm

180gsm

250gsm

Max. weight of face paper

800gsm

800gsm

800gsm

Precision

±1.2mm

±1.2mm

±1.2mm

Machine speed

6000pcs/h

6000pcs/h

6000pcs/h

Total power

14KW

14KW

14KW

Total length

12.5M

12.5M

14.5M

Total weight

6200KG

6200KG

7500KG

※ BRANCH INTRODUCTION:

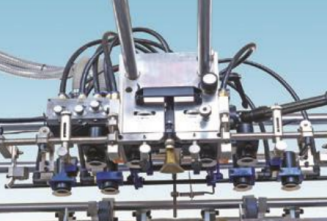

■Surface Paper Feeding Part

贴面机1

The Feeding device made in Taiwan ensures that the feeding of surface paper is smooth and accurate.

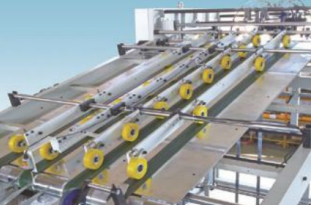

■Surface Paper Conveying Part

贴面机2

Unique central gear made of wear-resistant PU rubber cooperating with conveying belt ensures stability

and smoothness of conveying, which is adaptive for different sheets of different thickness without any

abrasion for the printing surface.

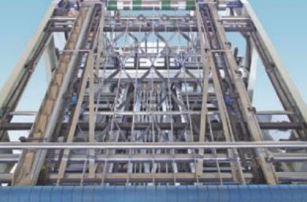

■Alignment System of Surface Paper

贴面机3

Synchronous sheet pusher particularly designed ensures that the surface paper and bottom paper

enter the pasting part at the same time. It can be fine adjusted during the course of working.

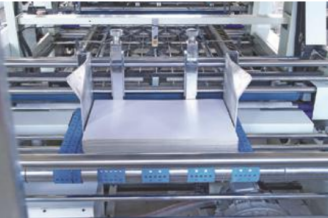

■Bottom Paper Feeding Part

贴面机4

Imported suction feeding device with punching belts ensures stable feeding at high speed. It is suitable

for cardboard heavier than 300g/m2, corruggated boards of A,B,C,D,E,F,N and three, five or seven

Layers

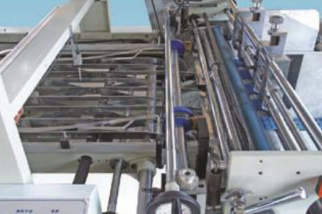

■Bottom Paper Conveying Part

贴面机5

Synchronous sheet pusher particularly designed ensures the stable and accurate conveying of

cardboards heavier than 300g/m2, and corrugated boards of A,B,C,D,E,F,N and three, five or seven

layers.

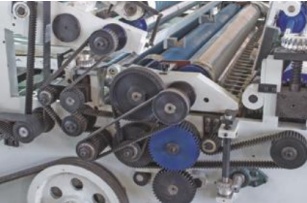

■Driving System

贴面机6

Imported wear-resistance timing belt, belt wheels cooperating with sheet pusher, adjustment system

and alignment mechanism ensures a paste tolerance of ±1.5mm and reduction of torn sheet.

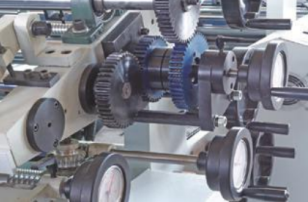

■Adjustment System

贴面机7

Fine regulator completely manufactured in Japan is adopted, which actualizes the adjustment of

pasting tolerance during the course of working with high speed, thus improving the working efficiency.

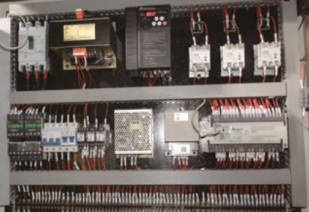

■Electrical Control Part

贴面机8

All the electrical power adopted the worldrenowned brands, steady and dureable, frequency speed

govering, lower noise and energy conservation.

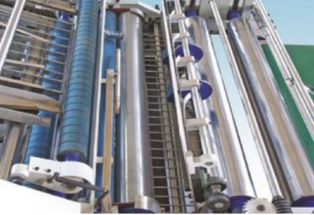

■Adding Glue and Gumming System

贴面机9

Automatic adding glue system detects by electrically operated fluid controller and adds gule

automatically during the course of pasting. The thickness of glue is adjustable according to paper. Recycling system of glue avoids a waste of glue and swinging glue, and ensures accurate and tidy

laminating.Unique applied anilox roller glues evenly, even suitable for cardboards and cardboards.
