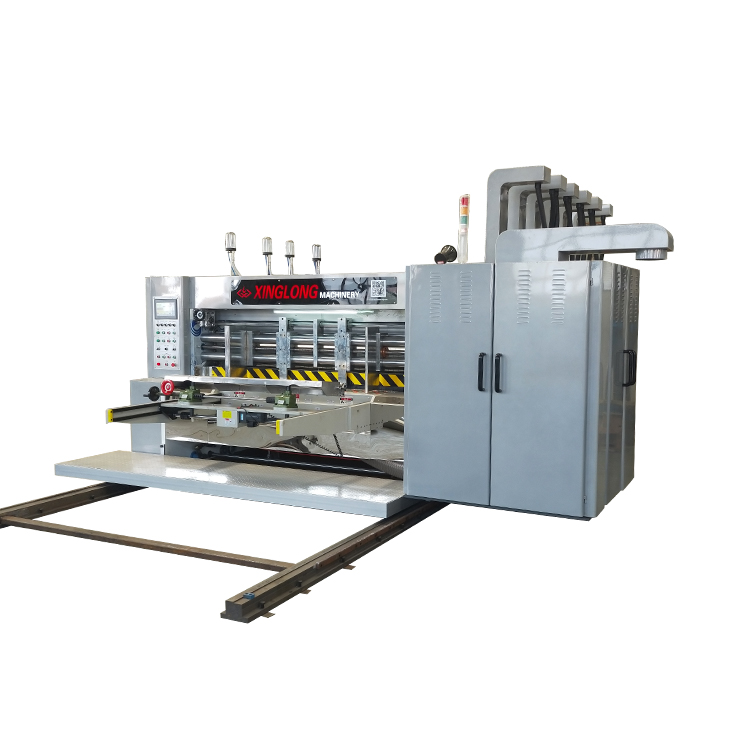

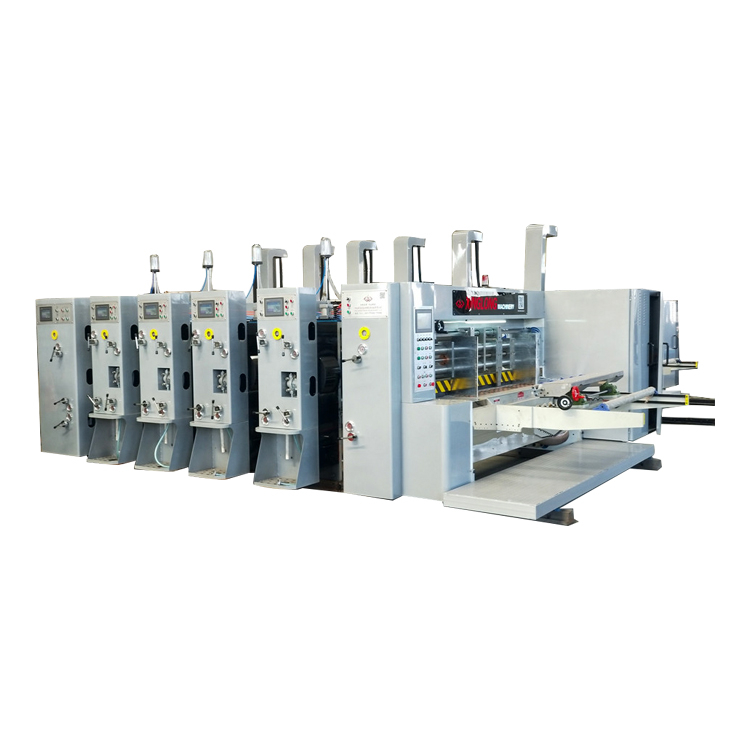

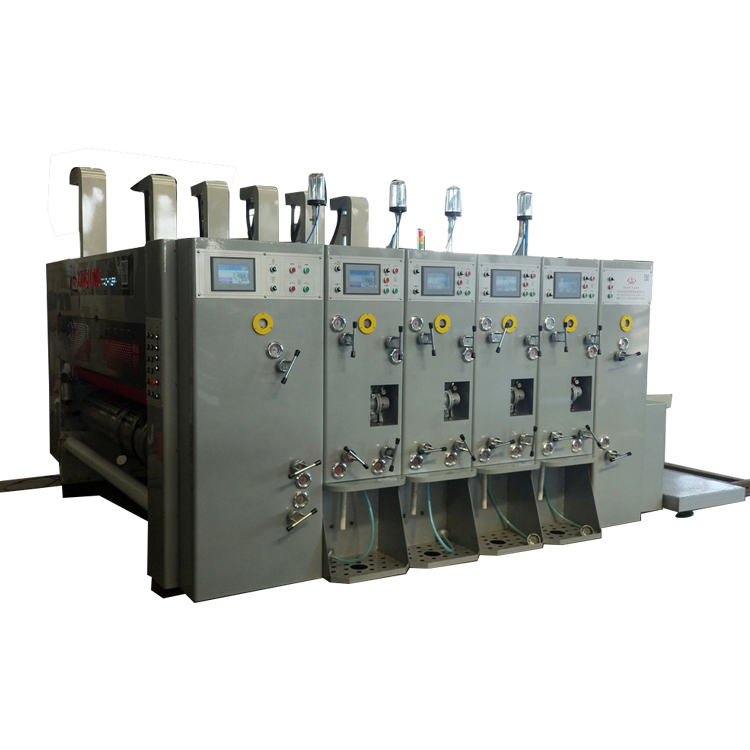

High speed four color cardboard slotting die cutting flexographic printing machine

Quantity:
  • Flexographic Printer
  • Food & Beverage Factory, Food Shop, Construction works , Food & Beverage Shops, Advertising Company
  • Video technical support, Online support, Spare parts, Field maintenance and repair service
  • None
  • None
  • Letterpress
  • China
  • xinglong
  • Automatic
  • Multicolor
  • 220/380/440
  • 20T
  • CE
  • 2 years
  • Online support, Free spare parts, Field installation, commissioning and training, Video technical support
  • Multi Color
  • Corrugated Cardboard
  • 3000mm
  • Carton Printing Machine
  • 1400mm
  • 150pcs/min
  • 1-6 Colors
  • Flexo Printer Machine

High speed four color cardboard flexographic printing machine



  • The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.

  • Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

  • All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

  • Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

  • The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

  • The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

  • Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)

  • The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.

  • Main motor is VFD, working stability, low power consumption.






Main Technology parameters:

Model

YJ250-1022

YJ220-1224

YJ200-1426

Machine inside width (mm)

2400

2600

2800

Max feeding paper size(mm)

1000*2200

1200*2400

1400*2600

Max effective printing size(mm)

1000*2000

1200*2200

1400*2400

Min coverage size(mm)

400*600

400*600mm

400*600

Design speed(pcs/min)

250

220pcs/min

200

Working speed(pcs/min)

210-230

180-200pcs/min

160-180

Standard Thickness of printing plate

6mm

6mm

6mm

Printing precision

±0.5mm

±0.5mm

±0.5mm

Thickness of cardboard

1.2-9mm

1.2-9mm

1.2-9mm

Wall thickness

50mm

50mm

50mm

Main motor power

About 18kw

About 18kw

About 18kw
