High speed corrugated cardboard carton box printing slotting machine

  • xinglong

  • New

  • 1.5 years, 1year

  • Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Food & Beverage Shops

  • Video technical support, Online support, Field maintenance and repair service

  • None

  • None

  • New machine

  • Free spare parts, Field installation, commissioning and training, Video technical support, Online support

  • High Productivity

  • High speed corrugated cardboard carton box printing slotting machine

  • YJ-LE-1224

  • 1200*2000mm

  • 120pcs/min

  • 80-100pcs/min

  • 3

  • Automatic feeding with sunction

  • resin material

  • +-1.5mm

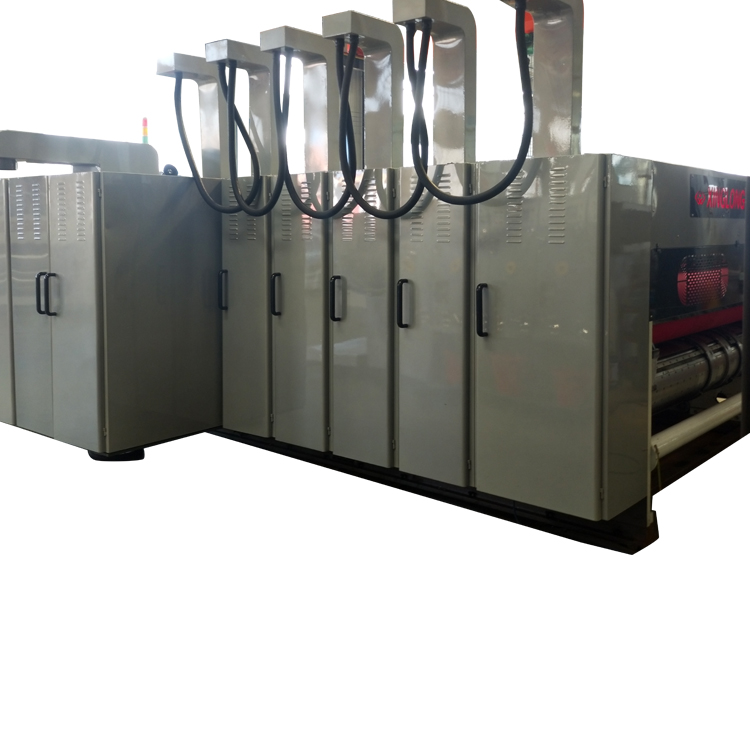

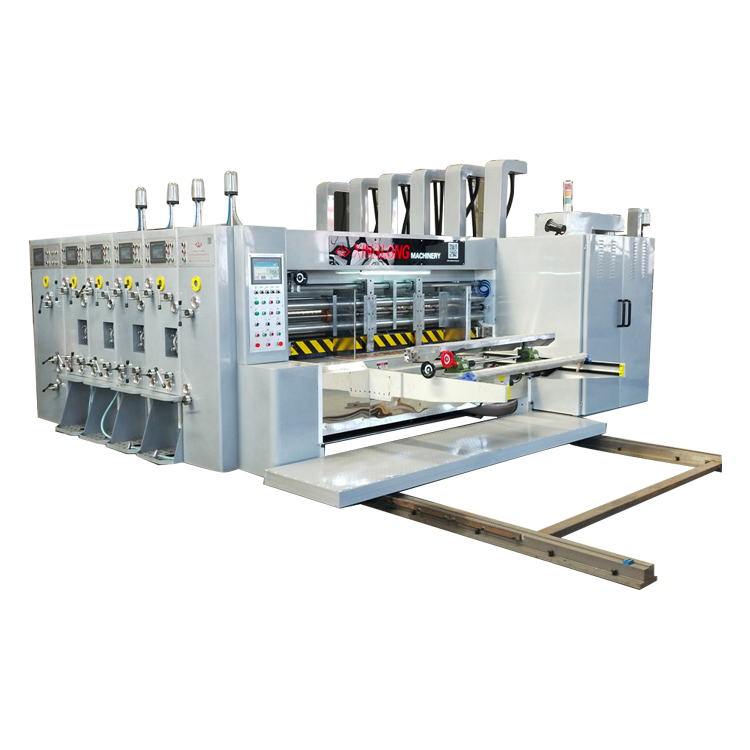

High speed corrugated cardboard carton box printing slotting machine


Performance and Characteristics

  • The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.

  • Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .

  • All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.

  • Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.

  • The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.

  • The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.

  • Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)

  • The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.

  • Main motor is VFD, working stability, low power consumption.


Model QYKMA405-2400 QYKMA480-2600
Machine inside width (mm) 2600 2600
Max feeding paper size(mm) 1200*2200 1450*2400
Max effective printing size(mm) 1200*2000 1450*2200
Min slotting space(mm) 190*50*190*50 190*50*190*50
Design speed 200pcs/min 180pcs/min
Working speed 180pcs/min 150pcs/min
Standard Thickness of printing plate 6mm 6mm
Printing precision ±0.5mm ±0.5mm
Thickness of cardboard 1.2-9mm 1.2-9mm
Main motor power About 11kw About 11kw


1. Q: Are you a manufacturer, trading company or a third party?

A: We are a manufacturer, located in Mahai industrial area south of Dongguang county, Hebei province, China. Warmly welcome to visit our company.

2. Q: What is your minimum order quantity, can you send me samples?

A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.

3. Q: How does your factory do regarding quality controlling?

A: 1) All raw material we used are environmental-friendly

   2) Skillful workers care every details in handling the producing and packing process

   3) Quality control department are specially responsible for quality in each process

We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.

4. Q: How about the after-sale service?

A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.

   2) To solve the problems with videos/pictures.

   3) One year warranty for spare parts change.
