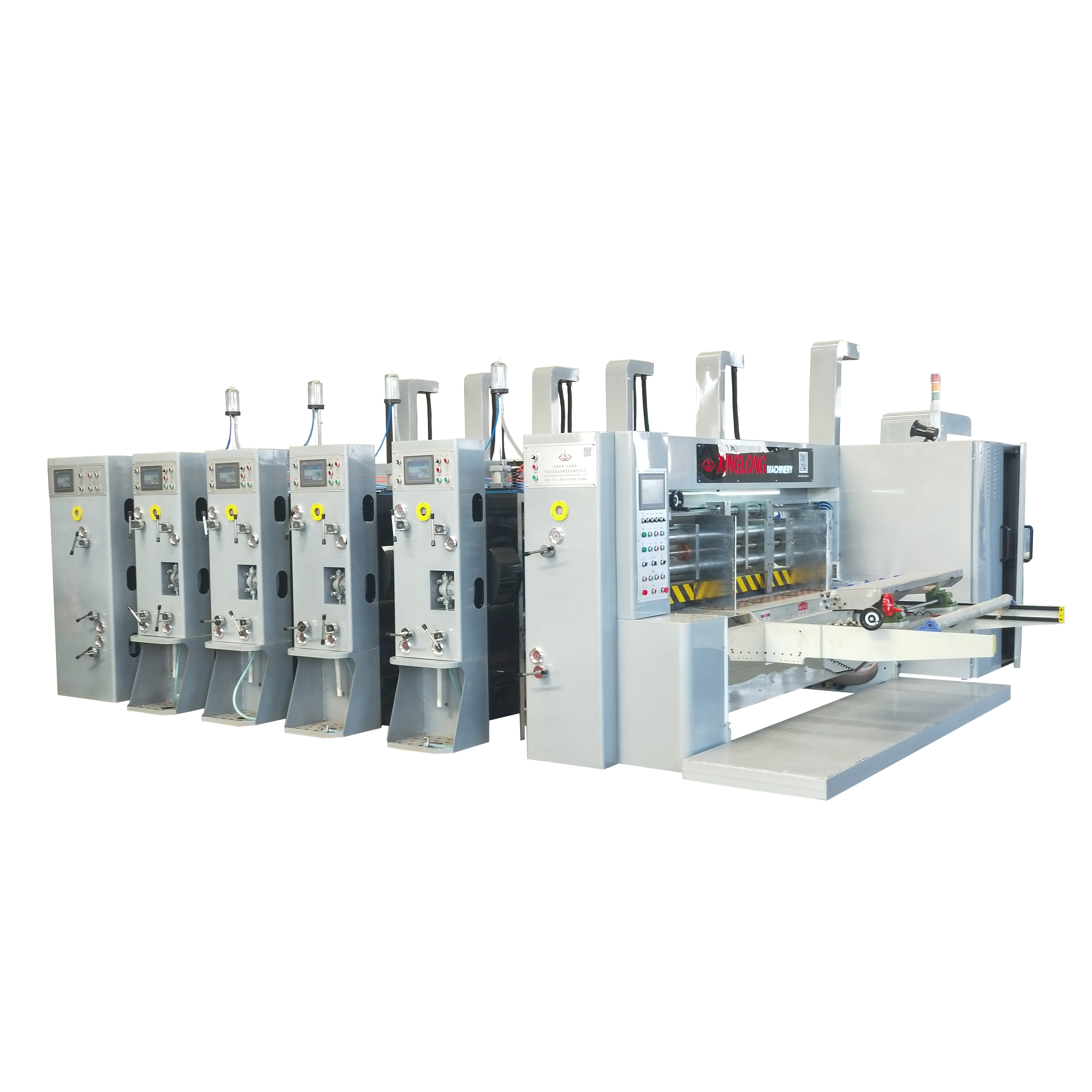

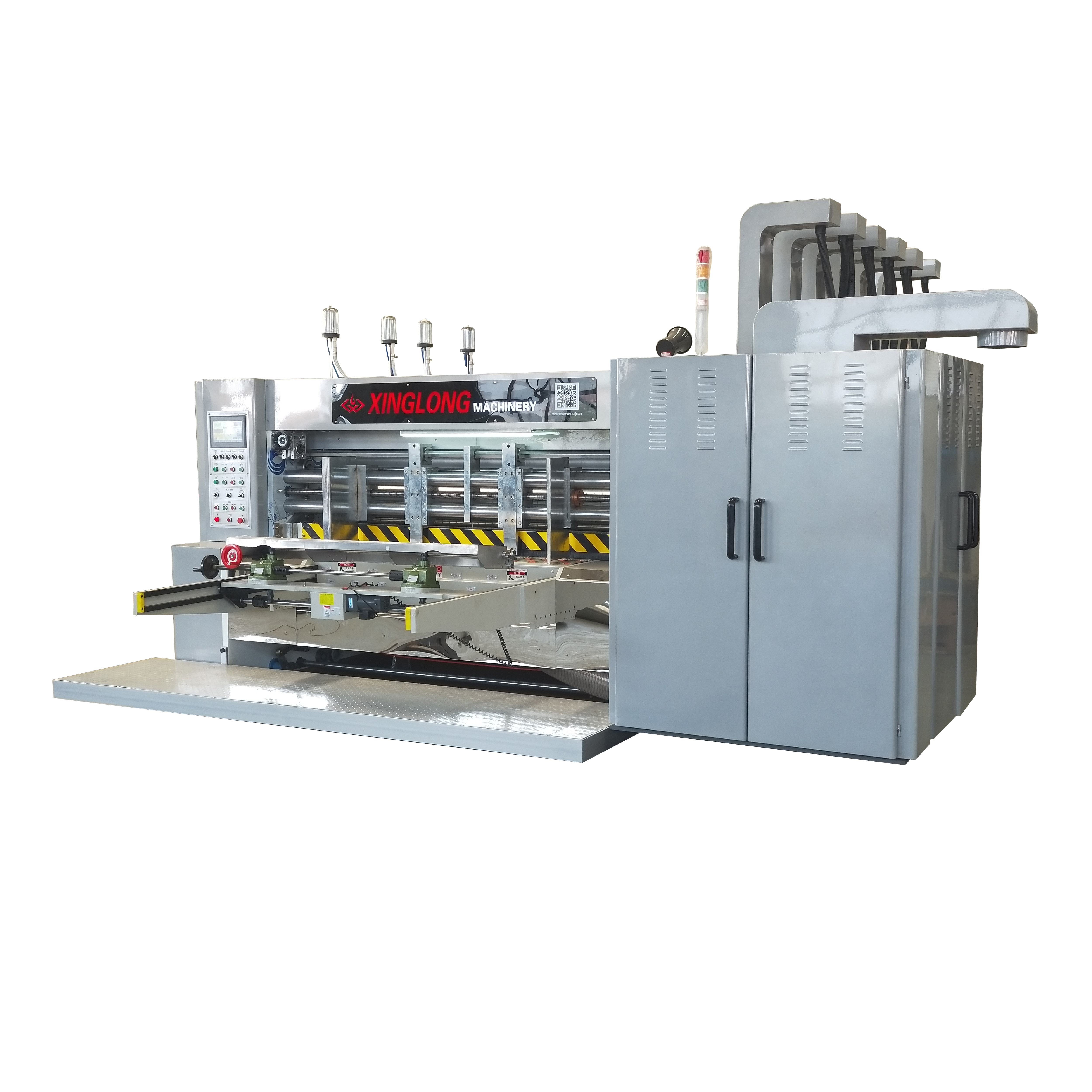

High speed automatic flexo printer die cutter slotter corrugated cardboard carton box packaging machine

Share to:

High speed automatic flexo printer die cutter slotter corrugated cardboard carton box packaging machine

Availability:

Quantity:



Inquire Add to Basket

Condition:
New
Warranty:
1.5 years
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, packaging
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Type:
QYKMA410-2300
After-sales Service Provided:
Free spare parts, Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
Key Selling Points:
High Productivity
Model:
QYKMA410-2300
Max. machinery speed(pcs/min):
2800
Economic printing speed:
1200mm*2100mm
Max effective printing size(mm):
1200mm*1900mm
Min coverage size(mm):
300mm*500mm
Min slotting space(mm):
240*80*240*80
Design speed(pcs/min):
120pcs/min
Working speed(pcs/min):
80-100pcs/min
Standard Thickness of printing plate:
6mm
Printing precision:
±0.5mm

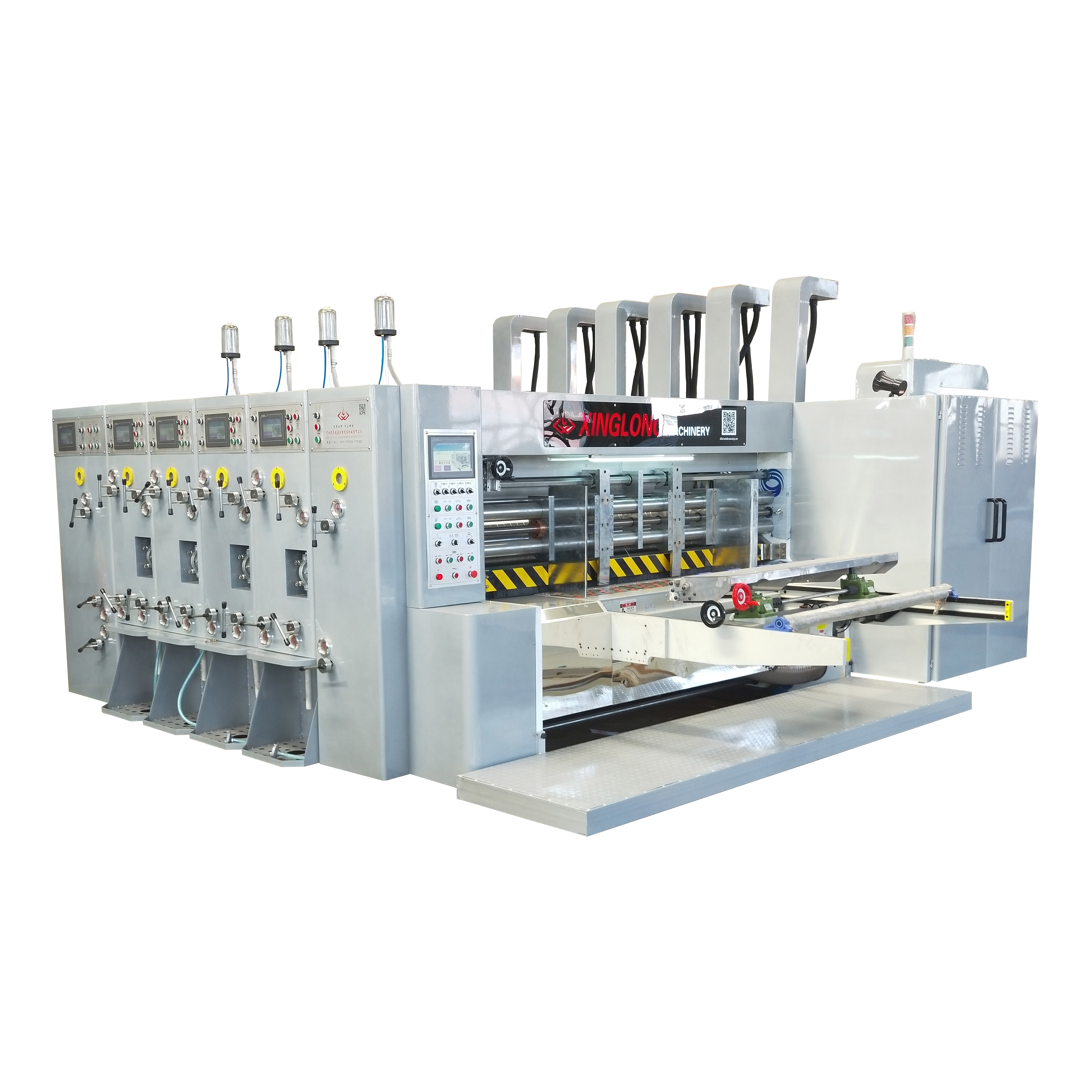

Product Description

Product Description

The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on. Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.Motorized digital phase adjustment with “automatic zero return” and “memories” function ( options: PLC control with touch screen)The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.Main motor is VFD, working stability, low power consumption.

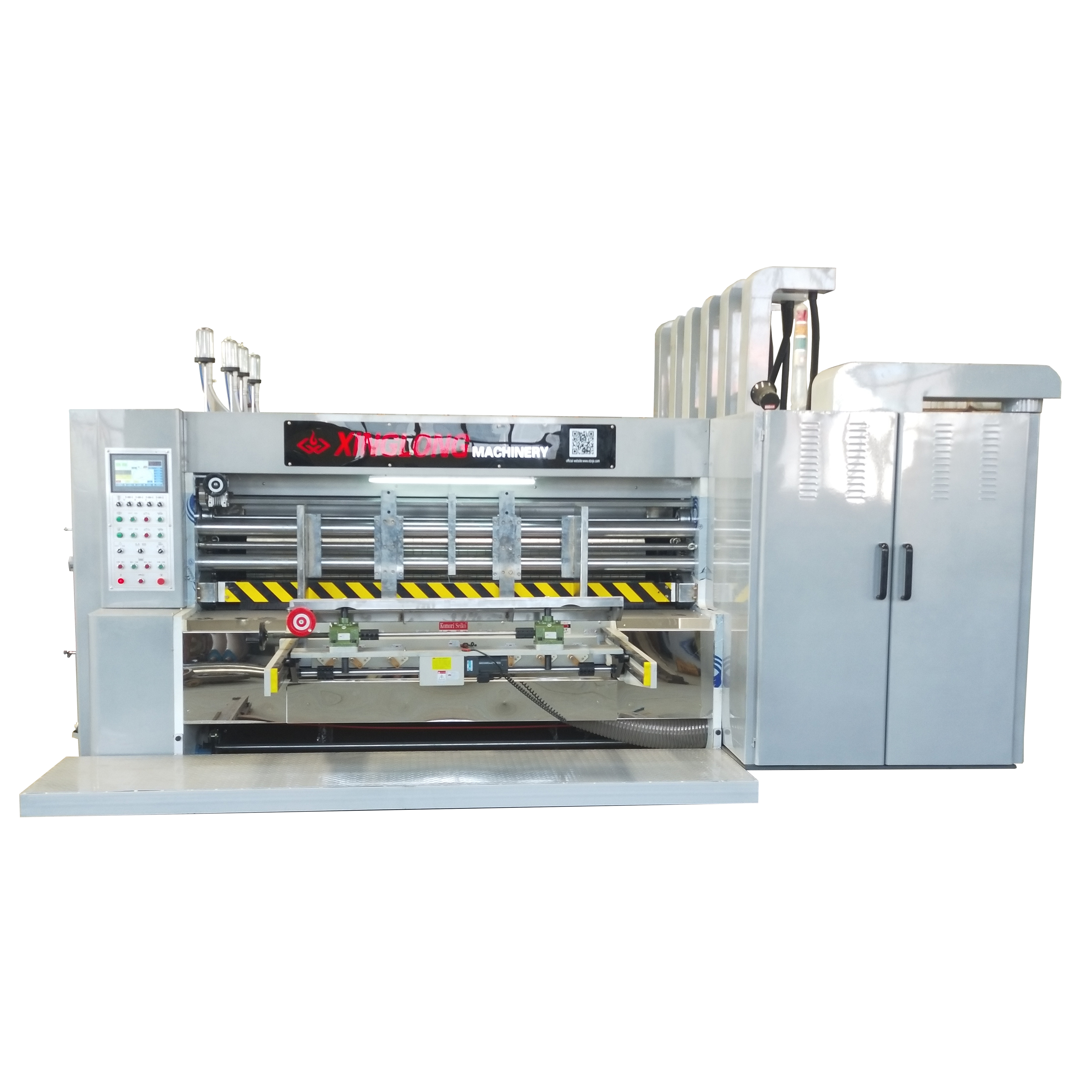

PARAMETER
Model	QYKMA410-2300
Machine inside width (mm)	2300
Max feeding paper siz(mm)	1200mm*2100mm
Max effective printing size(mm)	1200mm*1900mm
Min coverage size(mm)	300mm*500mm
Min slotting space(mm)	24080240*80
Design speed(pcs/min)	120pcs/min
Working speed(pcs/min)	100-120pcs/min
Standard Thickness of printing plate	6mm
Printing precision	±0.5mm
Thickness of cardboard	1.2-9mm
Wall thickness	40mm
Main motor power	About 4T

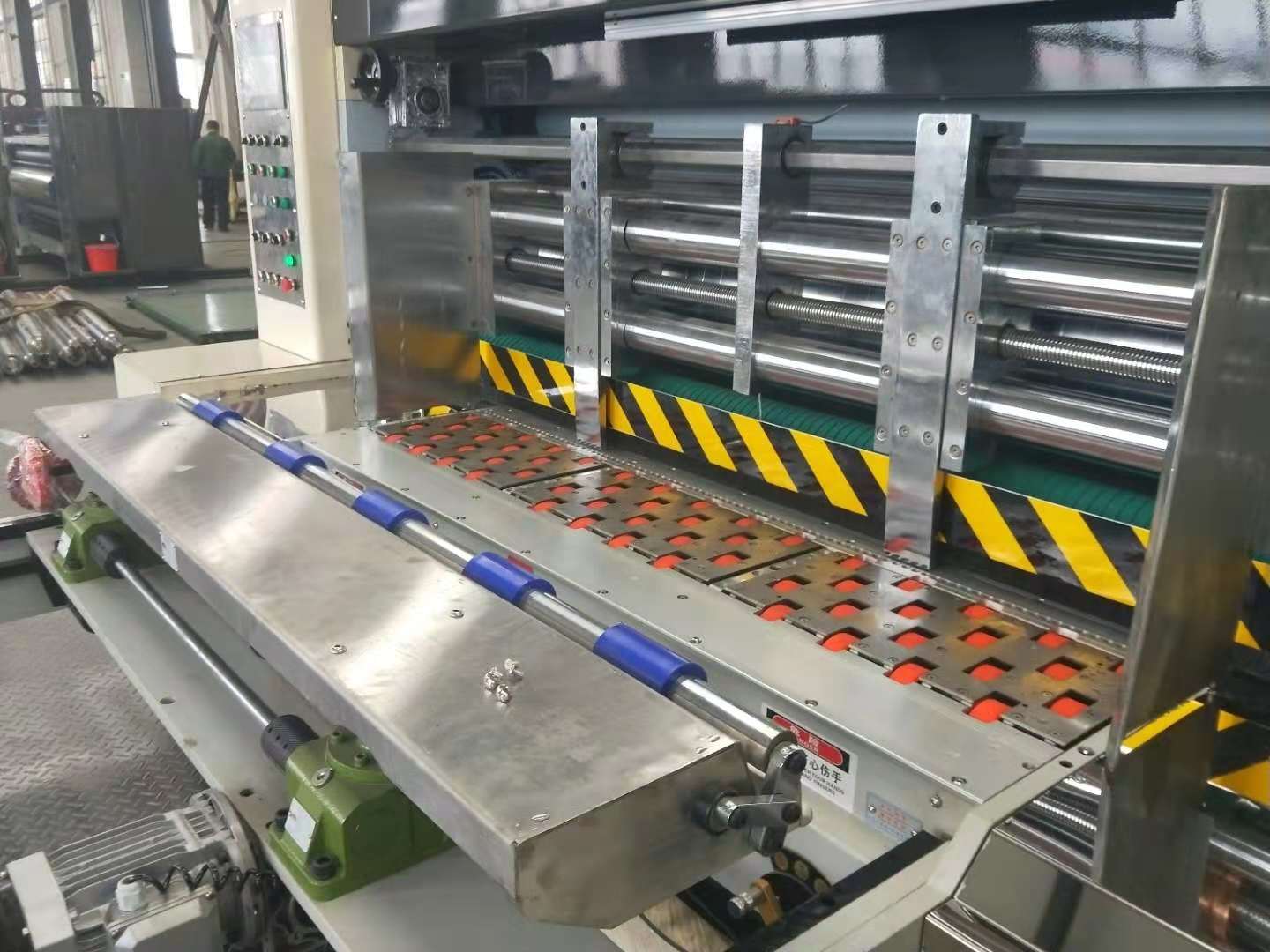

Feeding unit

●Motorized control machine units move, the warming belt is alarming when moving, make sure working safety. ●Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation. ●When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase, ensure gear engaged correct when machine units lock. ●Machine unit adopts pneumatic locking system. ●Main motor frequency conversion control, energy saving. Main motor with start protecting device, machine can not run when machine units aren’t lock. ●Adopts lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly.●Top feed roller is made of high qualified steel, the outside be wrapped wear-resisting rubber, don’t destroy flute, guarantee feeding precision, improve the printing accuracy.●Bottom roller used high-quality steel, precision grinding, knurling, hard chrome plated paper roll hand mode rapid clearance of fine-tuning self-locking device, equipped with a dial display to adjust direction and numerical.●The left and right baffles adopt electric digital control, the front baffles space adopts manual adjustment, the back baffle box be adjusted by motorized.●After finishing the work order ,back to zero position

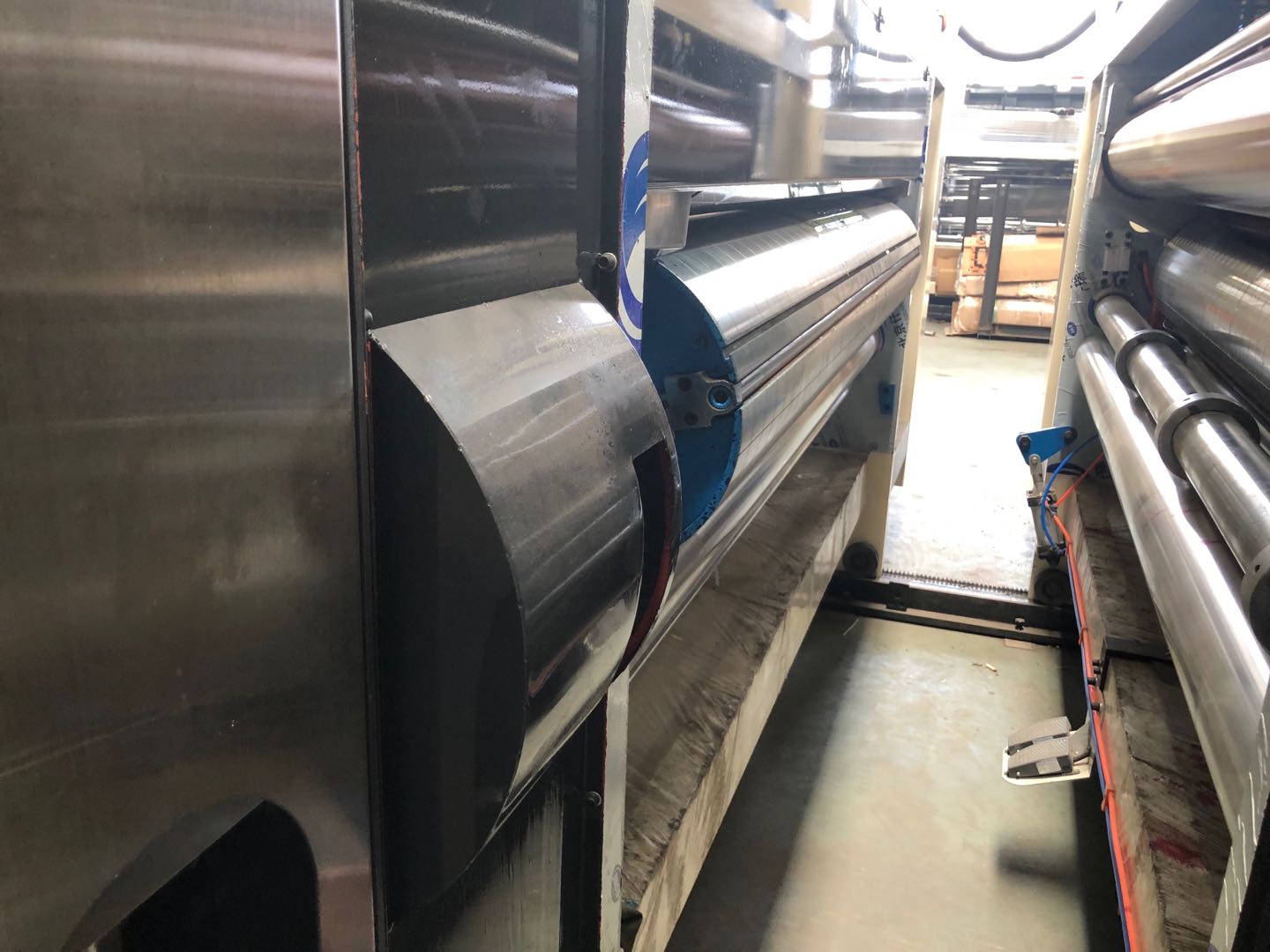

Printing unit

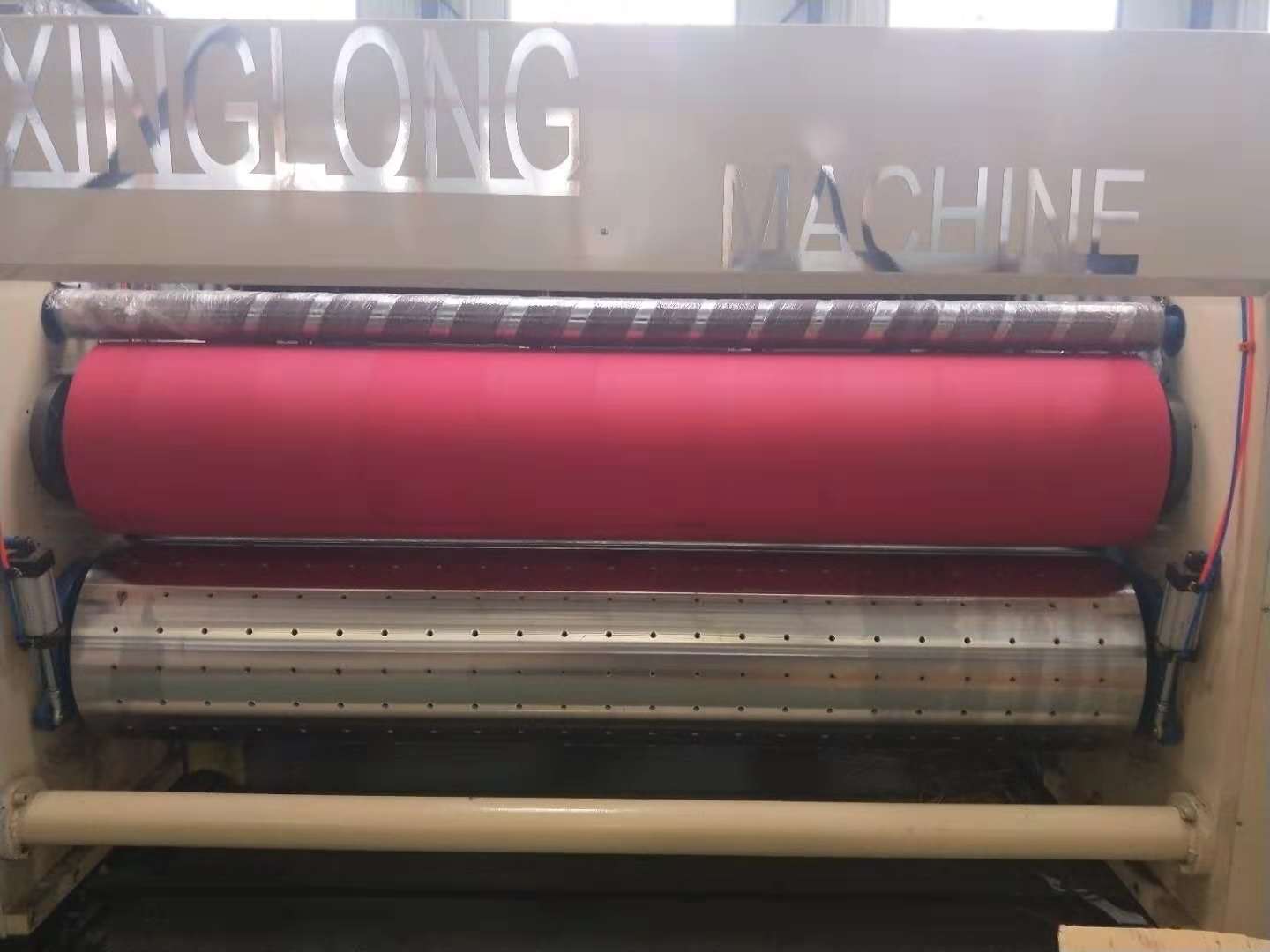

●Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly ●Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast.

●Full hang-plate device, 10mm hang-plate strip is available.

●Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version、unloading

version.

●Seamless steel tube surface is grinded and plated hard chrome, do balance correction, running stable.

●Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

●Use thick good quality steel pipe, professional manufacturing, do balance processing, the feeding roller adopt fine grinding to be molding.

●Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

●Seamless steel tube surface being grinded and plated hard chrome, balance correction, smooth operation

●Mesh amount 200, 220,240,260 or according to customers' demand

●Pneumatic lift-down mechanism(while feeding, the anilox roll go down automatically; stop feeding, it go up

automatically )

●Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set

amount.

●Adopt high quality stemless steel pipe, the surface be grinded, hard chrome plated, balance correction, running smoothly

●Special grinded crowning, work well

●Planetary gear structure

●Printing phase adopts 360 degrees electric adjustment (either run or stops)

●Printing roller manual horizontal adjustment, adjustment range + / - 14 mm

●With pneumatic diaphragm pump to supply ink, automatically circulation, work stable and it is easy to operate and maintain.

●Ink filter, filter impurities, more better printing

●When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position

●After washing the printing plate, press reset button the printing roller will back to the original printing position.

Slotting unit

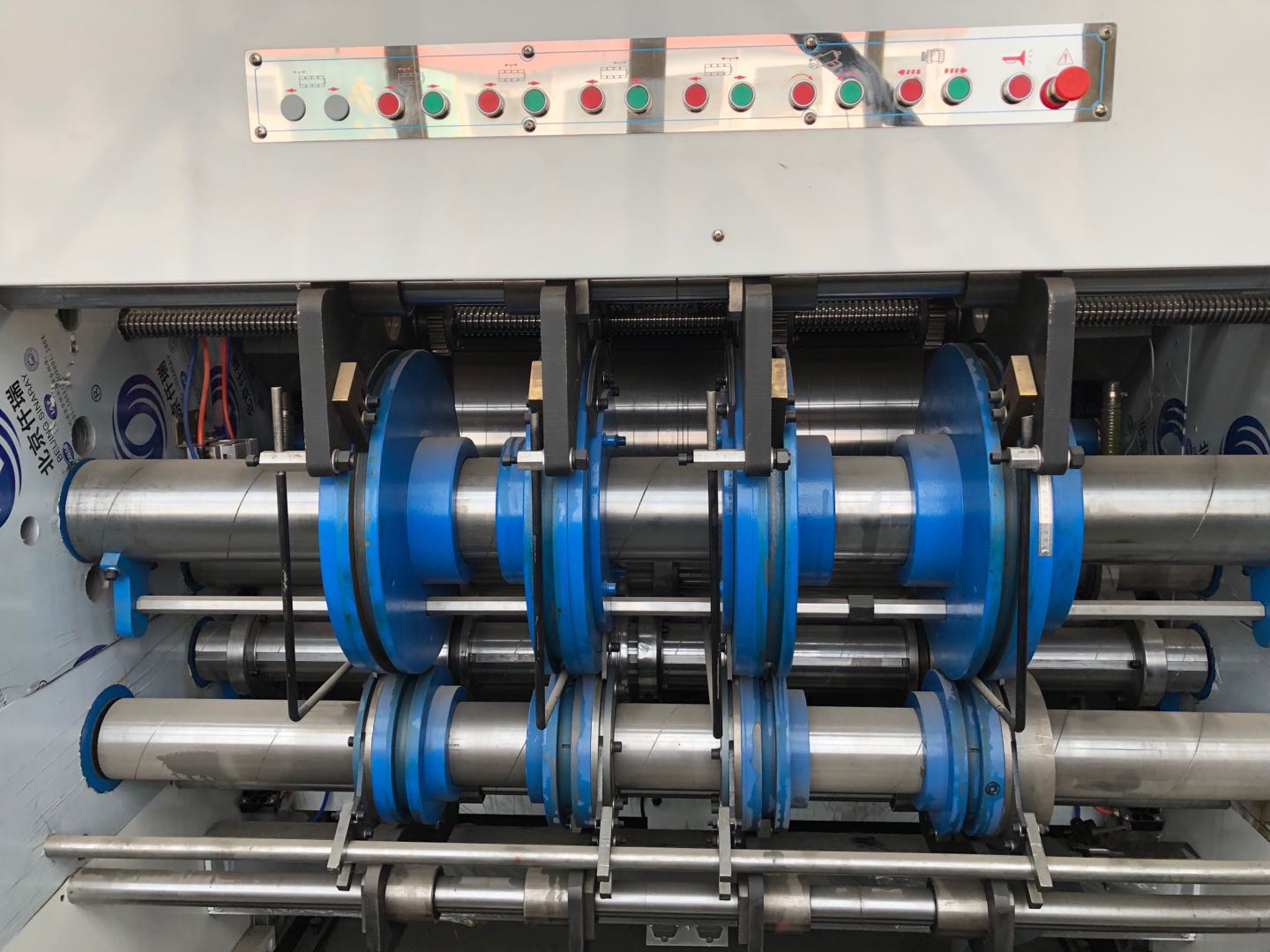

●Using high quality steel, with grinding process and plating hard chromium.●Pressure roller surface be grinded and hard chromium plating ,do balance processing●Equipped special design wheel is keep from crack. ●Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount. ●Seamless steel tube is selected and processed by fine grinding and balance.●Slotting knife width 7mm, alloy material, after heat treatment grinding, tooth shape slotting knife, sharp edge, high precision.●The height of slotted cutter box is adjusted with four knives synchronously, and the slotted blade is shifted horizontally with four knives electrically synchronously. ●Manual fast clearance fine-tuning self-locking device with dial to display adjustment direction and value●Structure of planetary gear type●Slotting phase adopt 360 degree electric synchronous adjustment.●Option, clients are beard the cost
