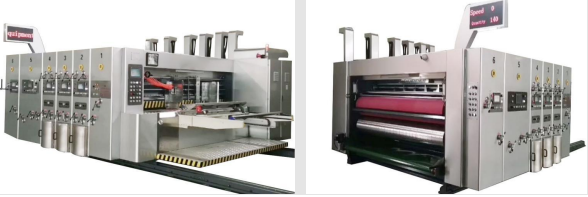

GYKM series high speed Printing slotting die cutting Machine
Main Technology Parameters
| Model | YJ1226 |
| Machine inside width (mm) | 2800 |
| Max feeding paper size (mm) | 1200*2600 |
| Max effective printing size (mm) | 1200*2400 |
| Max die cutting size (mm) | 1200*2300 |
| Min coverage size (mm) | 300*600mm（full plate printing or no printing) |
| Min slotting distance (mm) | 140*140*140*140mm |
| Design speed (pcs/min) | 250pcs/min |
| Max Working speed (pcs/min) | 0-220pcs/min |
| Standard Thickness of Printing Plate | 4-6mm |
| Printing Precision | ±0.5mm |
| Thickness of cardboard | 2-9mm |
| Wall thickness | 50mm |
| Main motor power | About 30kw |
Important Features
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately.
All of drive rollers are made of high quality steel with temper and quenching treatment, not change shape when high speed running, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Motorized digital phase adjustment with “automatic zero return” and “memories” function PLC computer control with touch screen.
Lead edge feeder with vacuum suction, easy operate, high precision.
All units move automatic orderly, locked by pneumatic, alarm continually
Main motor is VFD, working stability, low power consumption.

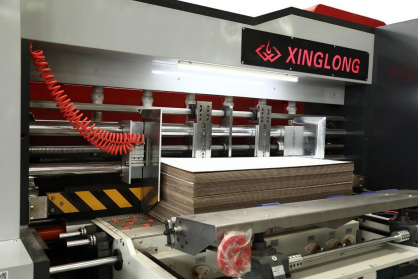

Feeding unit

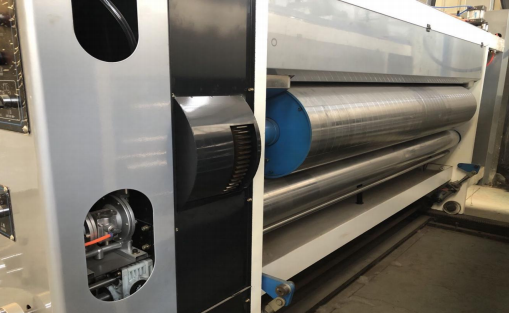

Printing unit

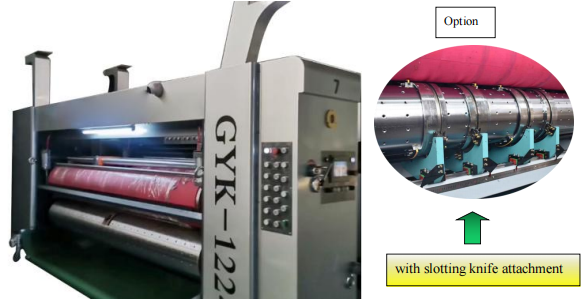

Slotting unit
Die-cutting unit
Vibrator and stacker unit
Vibrator unit
◆ Frequency conversion speed regulation, can control the main engine speed, safe and reliable operation
◆ Equipped with waste removal force fan and waste discharge brush
◆ Waste paper discharge device
◆ Seismic waste strength adjustable
◆ High elastic round belt has long service life and cannot damage cardboard.
◆ Introduced foreign advanced experience, better separation of waste from the finished product after die cutting, beat to remove waste, improve working conditions and efficiency.
Stacker unit
◆ Design speed: 150m/min
◆ Maximum stacking length of gantry: 2800mm
◆ Upper gantry stacking, electric or hydraulic lift.
◆ The whole wide belt conveys the paper neatly and smoothly;
◆ Electric stacking, and collection of cardboard, can make the cardboard storage height;
◆ Photoelectric measurement of stack height
