High quality thin blade slitter scorer machine

  • BD2000

  • xinglong

  • Semi-automatic

  • Electric

  • Requirement

  • Cutting cardboard

  • New

  • Hebei,China

  • Thin blade machine

  • 80m/min

  • 7.5kw

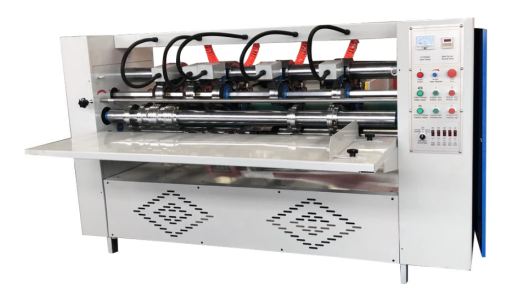

BFY Thin blade slitter scorer

thin blade

Main Use and Characteristics:

  1. It adopts thin blade slit,and it is sharp after grind,slitting cardboard edge smooth.

  2. First creasing,then slitting,and then pull paper

  3. It adopts manual and automatic grind blade type,it can choose grind and stop grind time,keep blade is sharp and cardboard edge smooth.

  4. Blade lifting mechanism,it can switch blade according to slitting number.

  5. Manual regulate crease width

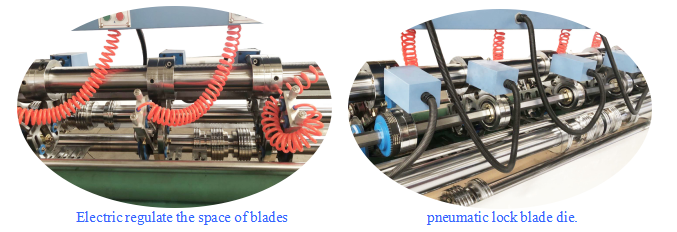

  6. Option:Electric regulate the space of blades,pneumatic lock blade die.

thin blade1

Main Technology Parameter:

Model BD2000 BD2400
Max sheet width(mm) 1800 2200
Max machine speed 80m/min 80m/min
Slitting knife Qty 4/5/6 pcs 4/5/6 pcs
Scorer Qty 6/8/10 pcs
6/8/10 pcs
Min slitting width 130*130*260mm 130*130*260mm
Min scorer width 45mm 45mm
Blade out diameter 200mm 200mm
Blade thickness 1.3mm(alloy steel) 1.3mm(alloy steel)
Motor power 7.5kw 7.5kw
Pressure <0.6mpa <0.6mpa
Machine dimension 2400×730×1500mm 2800×730×1500mm
Machine weight About 1300kg About 1600kg
Wall thickness 40mm 40mm
