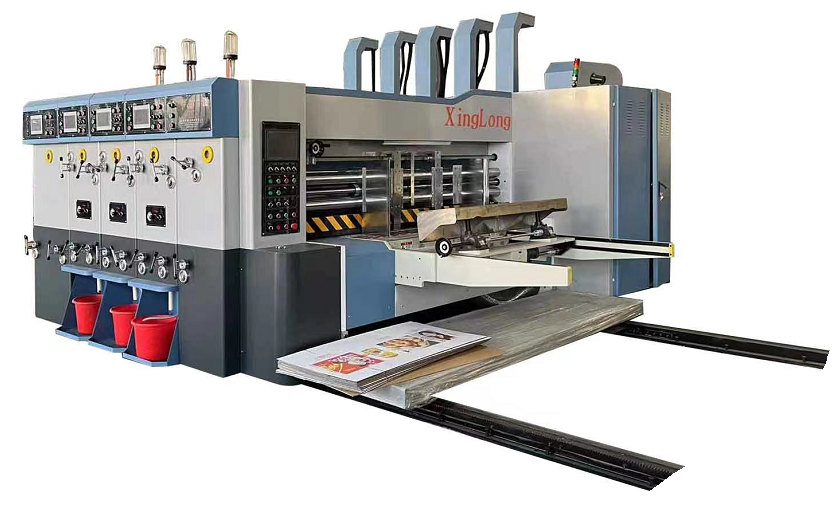

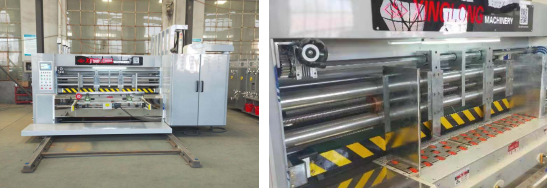

High quality YJA Series Printing slotting die cutting Machine

Machine inside width (mm)

2400

2600

2800

Max feeding paper size(mm)

900mm*2200mm

1200mm*2400mm

1400mm*2600mm

Max effective printing size(mm)

900mm*2000mm

1200mm*2200mm

1400mm*2400mm

Min coverage size(mm)

350mm*720mm

350mm*720mm

350mm*720mm

Max effective die cutting size(mm)

900*2150mm

1200*2350mm

1400*2550mm

Design speed (pcs/min)

150pcs/min

150pcs/min

150pcs/min

Working speed (pcs/min)

120-140 pcs/min

100-120 pcs/min

80-100 pcs/min

Standard Thickness of printing plate

4-6mm

4-6mm

4-6mm

Printing precision

±0.5mm

±0.5mm

±0.5mm

Thickness of cardboard

2-9mm

2-9mm

2-9mm

Wall thickness

40mm

40mm

40mm

Main motor power

15kw

15kw

15kw

Lpi of anilox roller

200/220/250

200/220/250

200/220/250

1

Machine unit move

• Motorized control machine units move, the warming belt is alarming when moving, make sure working safety.


• Drive shaft is equipped with friction clutch to avoid damage machine caused by incorrect operation.

• When machine units separate, each brake system work automatically, make sure gear positioning accurately, fix printing phase, ensure gear engaged correct when machine units lock.

• Machine unit adopts pneumatic locking system.

• Main motor frequency conversion control, energy saving. Main motor with start protecting device, machine can not run when machine units aren’t lock.

2

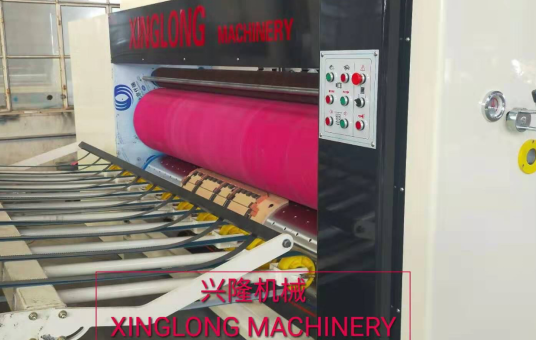

Roller type  lead edge feeder

• Adopt lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly.


3

Feeding roller

• Top feed roller is made of high qualified steel, the outside be wrapped wear-resisting rubber, don’t destroy flute, guarantee feeding precision, improve the printing accuracy.


• Bottom roller used high-quality steel, precision grinding, knurling, hard chrome plated paper roll hand mode rapid clearance of fine-tuning self-locking device, equipped with a dial display to adjust direction and numerical.

4

Baffles

• The left and right baffles adopt electric digital control, the front baffles space adopts manual adjustment, the back baffle box be adjusted by motorized.


5

Automatic zero device

• After finishing the work order ,back to zero position


1

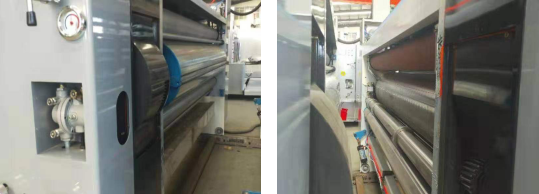

The printing roller

• Adopt good quality steel tube, the surface be grinded, hard chrome plated, balance correction, running smoothly


• Hang plate device, cooperate with the ratchet shaft fixed volume board fix printing plate fast.

• Full hang-plate device, 10mm hang-plate strip is available.

• Foot switch electric control roller run clockwise or anticlockwise, convenient hanging version、unloading version.

2

Impression roller

• Seamless steel tube surface is grinded and plated hard chrome, do balance correction, running stable.


• Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

3

Feeding roller

• Use thick good quality steel pipe, professional manufacturing, do balance processing, the feeding roller adopt fine grinding to be molding.


• Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

4

Anilox roller

• Seamless steel tube surface being grinded and plated hard chrome, balance correction, smooth operation


• Mesh amount 200, 220,240,260 or according to customers' demand

• Pneumatic lift-down mechanism(while feeding, the anilox roll go down automatically; stop feeding, it go up automatically )

• Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

5

Rubber roller

• Adopt high quality stemless steel pipe, the surface be grinded, hard chrome plated, balance correction, running smoothly


• Special grinded crowning, work well

6

Phase adjustment

• Planetary gear structure


• Printing phase adopts 360 degrees electric adjustment (either run or stops)

• Printing roller manual horizontal adjustment, adjustment range + / - 14 mm

7

Ink supply system

• With pneumatic diaphragm pump to supply ink, automatically circulation, work stable and it is easy to operate and maintain.


• Ink filter, filter impurities, more better printing

8

Printing phase fixed device

• When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position


9

Zero-return and memory

• After washing the printing plate, press reset button the printing roller will back to the original printing position.


1

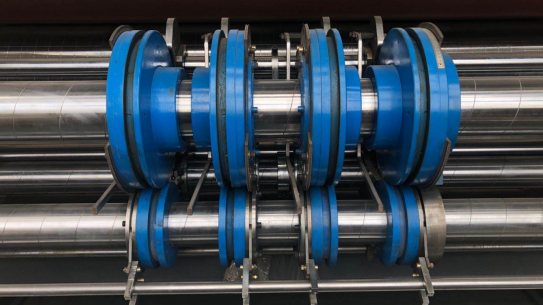

Crease wheel

• Using high quality steel, with grinding process and plating hard chromium.


• Pressure roller surface be grinded and hard chromium plating ,do balance processing

• Equipped special design wheel is keep from crack.

• Equipped manual gap adjustment device that fast and self-locking, dial indicates to show set direction and set amount.

2

Slot knife adjustment on axial direction

• Seamless steel pipe is selected and run smoothly after grinding and balancing.


• Slotted knife width 7mm, alloy material, after heat treatment grinding, tooth shape slotted knife, sharp edge, high precision.

• The slotting knife box height adjustment adopts four knife synchronous adjustment, and the slotting blade adopts four knife manual synchronous transverse movement.

• Hand-tuned fast clearance fine-tuning self-locking device with dial display adjustment direction and value.

3

Slotting phase adjustment

• Structure of planetary gear type

• Slotting phase adopt 360 degree electric synchronous adjustment.

4

Manual sync adjust

horizontal movement

• Slotting knife and crease wheels move together by hand（electric sync adjustment option）


5

Punching device(option)

• Option, clients are beard the cost


1

Die roller(bottom roller)

• High quality steel be finished process, the surface chrome plated, do balance correction, running stable.

• Pneumatic lift-down, it is easy to work, reduce cut times on anvil cover, prolong its use life.

2

Rubber roller(top roller)

• High quality steel be finished process, the surface chrome plated, do balance correction, running stable.

• The gap between top roller with bottom roller be adjusted by hand.

• Famous brand anvil cover, easy change, economy

• The gap between feed roller with rubber roller is self-locked.

• Speed compensation device can make the rubber roller slipping follow die roller, thereby, the rubber surface speed controlled by knife die. So that the carton shape is same as knife die.

• Equipped with rubber repair device, the rubber can be used after be repaired.

• Mechanical helix fluted-roll type, transverse movement ±20mm

3

Phase adjustment

• Planetary gear structure

• Phase adjustment by motorized control in 360degree( both running and stop)

4

Automatic repair rubber device

• Machine have repair roller to grind blanket, so it can use many times.

5

Automatic waste clean device

• Automatic discharge of waste paper

6

Optional：slotting knife attached

• With slotting knife sync adjustment,no need to make wooden die when make normal cartons.easy to operate
