YJA922
xinglong
New
China,Hebei
Automatic
Easy to Operate
Ordinary Product
Carton making machine
1-6 colors

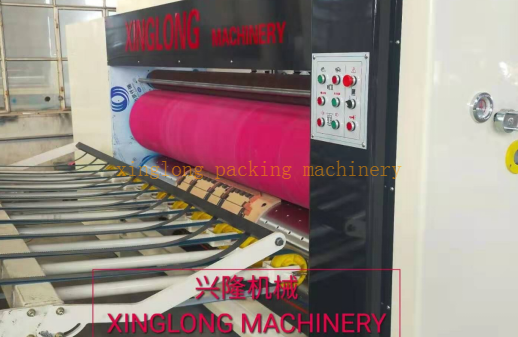

Automatic printing slotting die cutting machine
1 Year
Provided

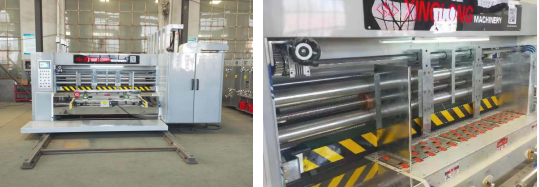

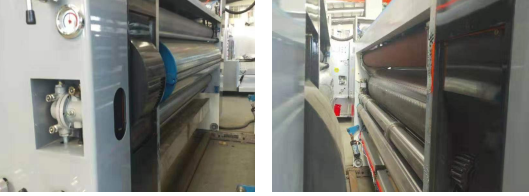

YJA Series Printing slotting die cutting machine
Main Technology Parameters
Model | YJA922 | YJA1224 | YJA1426 |
Machine inside width (mm) | 2400 | 2600 | 2800 |
Max feeding paper siz(mm) | 900mm*2200mm | 1200mm*2400mm | 1400mm*2600mm |
Max effective printing size(mm) | 900mm*2000mm | 1200mm*2200mm | 1400mm*2400mm |
Min coverage size(mm) | 350mm*720mm | 350mm*720mm | 350mm*720mm |
Max effective die cutting size(mm) | 900*2150mm | 1200*2350mm | 1400*2550mm |
Design speed (pcs/min) | 150pcs/min | 150pcs/min | 150pcs/min |
Working speed (pcs/min) | 120-140 pcs/min | 100-120 pcs/min | 80-100 pcs/min |
Standard Thickness of printing plate | 4-6mm | 4-6mm | 4-6mm |
Printing precision | ±0.5mm | ±0.5mm | ±0.5mm |
Thickness of cardboard | 2-9mm | 2-9mm | 2-9mm |
Wall thickness | 40mm | 40mm | 40mm |
Main motor power | 15kw | 15kw | 15kw |
Lpi of anilox roller | 200/220/250 | 200/220/250 | 200/220/250 |
Performance and Characteristics
The machine can finish multi processes one time such as: printing, slotting, creasing, trimming, corner cutting, punching, die cutting, stacking and so on.
Machine is designed according to high request and reliable function, humanization operation, it can setting, revision, implement, changing and memories in short time, and display data accurately .
All of drive rollers are made of high quality steel, hard chrome plated the surface with grinded.
Main drive gears adopt high quality steel with heat treatment with grinded, adopt cross slip system connect each gear, keep gear fix position, ensure transmission precision.
The main drive roller adopt keyless connect, decrease the connection gap, ensure printing precision.
The machine adopts sealed spray lubrication for gear system, engineer oil automatic balance device; keep the oil level equal in each unit.
Phase adjustment adopt PLC control with touch screen
The machine adopts lead edge (or kick feeding), low demand for the cardboard, fast.
Main motor is VFD, working stability, low power consumption.
Adopt double shell, beautiful and generous, reduce noise
1.Feeding unit
No | Item | Function and configuration |
1 | Machine unit move |
|
2 | Roller type lead edge feeder | Adopt lead edge feeder with wind volume system, it can adjust wind volume according on cardboard bending status to ensure feeding board smoothly. |
3 | Feeding roller |
|
4 | Baffles | The left and right baffles adopt electric digital control, the front baffles space adopts manual adjustment, the back baffle box be adjusted by motorized. |
5 | Automatic zero device | After finishing the work order ,back to zero position |
2.Printing unit
No | Item | Function and configuration |
1 | The printing roller |
|
2 | Impression roller |
|
3 | Feeding roller |
|
4 | Anilox roller |
|
5 | Rubber roller |
|
6 | Phase adjustment |
|
7 | Ink supply system |
|
8 | Printing phase fixed device |
When units separating or cleaning, braking mechanism limit gear running, keep original gear’s position |
9 | Zero-return and memory | After washing the printing plate, press reset button the printing roller will back to the original printing position. |
3.Slotting unit
No | Item | Function and configuration |
1 | Crease wheel |
|
2 | Slot knife adjustment on axial direction |
|
3 | Slotting phase adjustment |
|
4 | Manual sync adjust horizontal movement
| Slotting knife and crease wheels move together by hand(electric sync adjustment option) |
5 | Punching device(option) | Option, clients are beard the cost |
4.Die cutting unit
No | Item | Function and configuration |
1 | Die roller(bottom roller)
| 1.High quality steel be finished process, the surface chrome plated, do balance correction, running stable. 2.Pneumatic lift-down, it is easy to work, reduce cut times on anvil cover, prolong its use life. |
2 | Rubber roller(top roller)
| l.High quality steel be finished process, the surface chrome plated, do balance correction, running stable. 2.The gap between top roller with bottom roller be adjusted by hand. 3.Famous brand anvil cover, easy change, economy 4.The gap between feed roller with rubber roller is self-locked. 5.Speed compensation device can make the rubber roller slipping follow die roller, thereby, the rubber surface speed controlled by knife die. So that the carton shape is same as knife die. 6.Equipped with rubber repair device, the rubber can be used after be repaired. 7.Mechanical helix fluted-roll type, transverse movement ±20mm |
3 | Phase adjustment | l.Planetary gear structure 2.Phase adjustment by motorized control in 360degree( both running and stop) |
4 | Automatic repair rubber device
| Machine have repair roller to grind blanket, so it can use many times. |
5 | Automatic waste clean device | Automatic discharge of waste paper
|
6 | Optional:slotting knife attached | With slotting knife sync adjustment,no need to make wooden die when make normal cartons.easy to operate |
