BMY1224
xinglong
Semi automatic
Semi automatic printing die cutting machine
BYM1224
Easy to Operate
Customized
1 Year
Provided

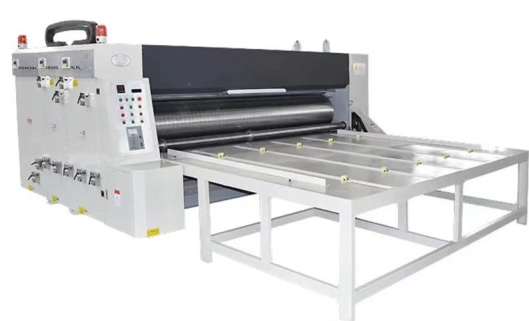

Semi Automatic Printing die cutting Machine with Slotting knife
PERFORMANCE AND CHARACTERISTICS
l Feeding Unit
n This machine adopts chain feeding system, equipped with side gauge make sure feeding paper accuratel
n Abrasion resistance materials as the support of the bottom of chains, fast running, low noise
n Main motor placed under the feed table.
n Equipped with block paper steel bar to ensure the easy feeding of the bend cardboard.
n Feeding error ±1.5mm.

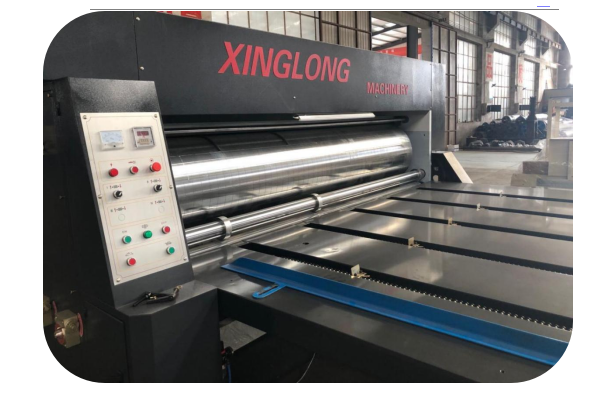

l Printing unit
n Printing roller, paper feeding roller, pressure roller, all the surfaces grinding, hard chromium plating.
n Adopt planet style electrical adjustment of 360 degrees whatever operating and stopping, quickly and accurately.
n Electrical separate printing unit and slotting unit ，pneumatic locking up of printing units.
n Inking roller can be detached from printing plate automatically to avoid damage the printing plate.
n Inking roller equipped idling running device to prevent ink from being dried when machine stop.
n Pneumatic lifting and down the anilox roller, auto ink distributing.
n With Pneumatic diaphragm pump to supply ink.
n Main transmission gears are made by 45#steel after high frequency quenching.
n Drive part adopts spray lubricating system, improve the precision and serve life of machine.
n Main shafts connect with gear used no-key connect(ringfeder), so keep shaft running stably.
n Transmission part adopts automatic spray lubraction system, improve machine use time and precision.
n All gears adopt cross slide head to perform no gap adjustment, printing accurately.

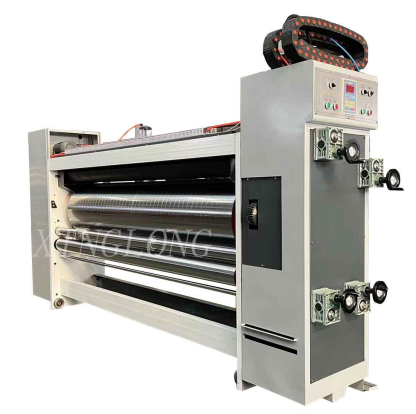

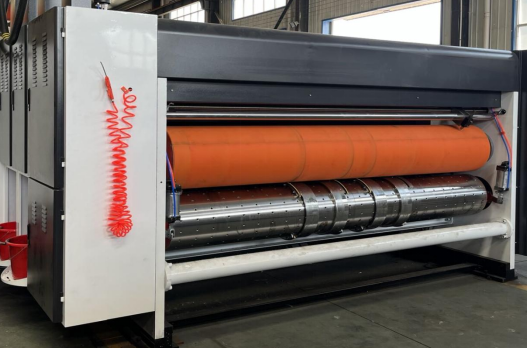

l Die cutting unit with slotting knife
n Automatic compensation device for linear speed of rubber cushion roller to prolong the service life of superior adhesive.
n Automatic lateral movement of cushion roller 40 mm from left to right, prolonging the service life of superior rubber
n When the rubber pad is used unevenness, can open the function of the rubber roller, prolong the service life of the rubber pad.
n Adopt high-quality rubber pad.
n The roller is made of cast steel, with a wall thickness of 45mm,
n Die-cutting roller for slotting (synchronous knife), when there is a common slotting box can not do die cutting.
n Pneumatic manual or automatic control of die cutting roll, die cutting roll to lift cutting paper, stop the paper feed to fall to avoid damage to the rubber pad.
n Electrically adjusted phase die-cutting position
n With slotting knife, can make regular cartons without making wooden die,easyto adjust. Save cost.
MAIN TECHNOLOGY PAREMETERS
Model | BYM1224 |
Roller diameter (mm) | 405 |
Max sheet size（mm） | 1200*2400 |
Max printing size（mm） | 1200*2200 |
Min sheet size（mm） | 400×800 |
Working speed ( pcs/min ) | 0-60 |
Printing precision（mm） | ±0.5 |
Standard plate thickness（mm） | 4-6 |
Sheet thickness（mm） | 2-10mm |
Main Power (kw） | 7.5kw |
Wallboard thickness (mm) | 40mm |
